Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line

Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line

  • Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line
  • Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line
Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: blister cartoning machine packaging line
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $120953-123301/pc
Packaging Details: Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line Speed: 2400-9600 Pellets Per Hour+ 260 Carton/min
Total Power: 8.5kw+5 KW Size Range Of Carton: L(70-180)*W(35-80)*H(12-50)mm
Range Of Folding Times Of Instructions: 1-4 Fold Power Supply: 220/380V 50Hz
Carton Weight: 250-350g/㎡ Size Range Of Instructions: L(80-250)*W(90-170)mm
Instructions Weight: 60-70g/㎡ Air Consumption: 120-200 L/min
Blister Machine Blanking: 10~45 Times/min Blister Machine Max. Shaping Dia. And Depth: 250*140*15mm Max. Depth 26mm(custom-made)
High Light:

4 fold Blister Cartoning Machine

,

Pharmaceutical Blister Packaging Line

DPP-260S and RQ-ZH-260W full automatic pharmaceutical blister cartoning machine packaging line produced by Guangdong Rich Packing Machinery Co.,Ltd .It has the functions of automatic forming, feeding, sealing and servo traction and quickly pack products.



Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line 0



DPP-260S automatic pharmaceutical tablet blister machine

Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line 1Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line 2Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line 3

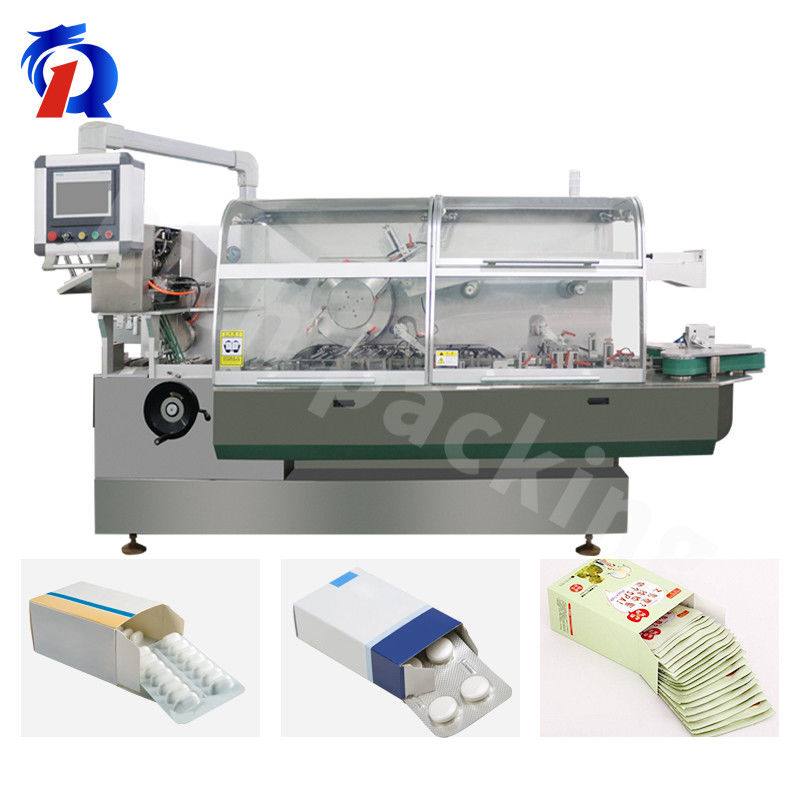

RQ-ZH-260W Automatic Horizontal Cartoning Machine





auto carton machine Model RQ-ZH-26OW
auto carton machine Speed 260 carton/min
Total power 5.0 KW
Power supply 220/380V 50Hz
Requirements of carton size range of carton:L(70-180)*W(35-80)*H(12-50)mm
  carton weight:250-350g/㎡
Requirements of instructions size range of instructions:L(80-250)*W(90-170)mm
  range of folding times of instructions:1-4 fold
  instructions weight:60-70g/㎡
auto carton machine Pressure pressure intensity:≥0.6MPa
  air consumption:120-200 L/min
Overall size of machine 6800*1600*1860㎜
Net weight of machine about 3400kg

Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line 4

full automatic pharmaceutical blister cartoning machine packaging line



Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line 5

Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line 6

full automatic pharmaceutical blister cartoning machine packaging line

Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line 7

full automatic pharmaceutical blister cartoning machine packaging line

Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line 8

full automatic pharmaceutical blister cartoning machine packaging line

Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line 9

full automatic pharmaceutical blister cartoning machine packaging line

Full Automatic Pharmaceutical Blister Cartoning Machine Packaging Line 10
