RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy

RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy

  • RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy
  • RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy
  • RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy
  • RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy
  • RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy
RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy
Product Details:
Contact Now
Detailed Product Description
Accuracy Rate: >99.98% Application: Counting And Bottling Tablets Capsules Gummies
High Light:

Tablet Capsule Counting Machine

,

Automatic Tablet Counting Machine

,

Tablet Counting Machine Automatic

RQ-16H Model

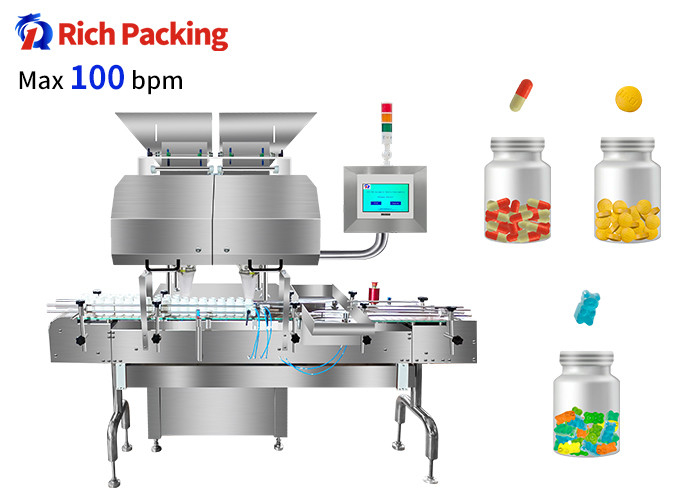

RQ-16H automatic counting machine has wider application, can count all kinds of tablets capsules gummies and candies in the wide range of 3-40 mm.This model adopts the vibrating bottling method, would not block the material, greatly improves the production speed.




More than 2000 praise cases

RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy 0




29 Years Experience

in Manufacturing Automatic Counting Machine

RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy 1

RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy 2




Product Details:



1. Independent Counting Module
Counting accuracy > 99.98%, far beyond industry standards.

RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy 3



2. Modular Design
Maintenance only 10-15 minutes

RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy 4



3. Enclosed Design
prevent dust into inside

RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy 5



4. Pneumatic Bottling
Speed increase by 30%

RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy 6

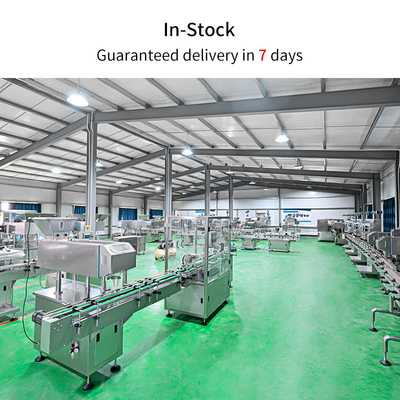

Manucfacturing Site
Leading manufacturer, One-Hand Price
RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy 7



6S Standardized Management
100% full inspection before delivery
RQ-16H Tablet Counting Machine High Speed Automatic Capsule Counter Bottling Gummy 8




Parameter:

Output capacity 50 - 100 bottles/min
tablets counter accuracy rate >99.98%
tablet counters Filling range 1-9999 grains (tablets) adjustable
Applicable bottle type 10-500ml round, square bottle
voltage of it 380/220V 50/60 hz
power 2.5 KW
tablet counter weight 900kg
Outline dim.(mm) 1300*1950*1800mm



1. High tablets capsules count accuracy. Using independent infrared scanning system module, FPJ parallel processing technology, the accuracy rate is > 99.98%, far exceeding the industry standard.

2. The core vibration track adopts a fully enclosed design to prevent dust from falling into the host and causing a short circuit of the signal.

3. The whole machine adopts a modular cylinder solenoid valve system, which can be installed and disassembled as a whole, and is easy to maintain and clean.

4. The automatic counting machine adopts the cylinder-controlled vibration bottling method, the material is no longer blocked, and the production speed is increased by 50% compared with the counterparts.



Professional Solution

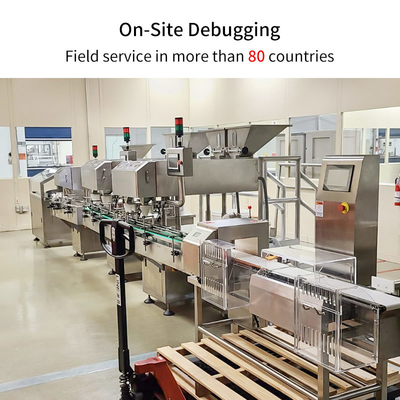

With 29 years of experience in the field of pharmaceutical and packaging equipment, we customize a complete set of turnkey solutions for customers, 1 year of free wearing parts and timely overseas on-site debugging and technical support.



Proof of Strength
As a leading pharmaceutical and packaging machinery manufacturer in China, we have more than 7 international invention patents in the fields we are so familiar with. As a gold supplier of SGS certification, we also meet CE, cGMP, ISO, UL and other third-party certification standards.
