| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | RQ-ZHL-120W |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $29000-36000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Automatic Horizontal Cartoning Machine For Drugs Tablets Capsule | Speed: | 30-125 Carton/min |
|---|---|---|---|
| Total Power: | 0.750 KW | Size Range Of Carton: | L(70-185)*W(35-90)*H(14-50)mm |
| Range Of Folding Times Of Instructions: | 1-4 Fold | Power Supply: | 220/380V 50Hz |
| Carton Weight: | 250-350g/㎡ | Size Range Of Instructions: | L(78-250)*W(90-170)mm |
| Instructions Weight: | 60-70g/㎡ | Pressure Intensity: | ≥0.6MPa |
| Air Consumption: | 120-160 L/min | Overall Size Of Machine: | 3100*1100*1550㎜ |
| Net Weight Of Machine: | 1600kg | ||
| High Light: | carton packing machine,cartonator packing machine |
||
| Model | RQ-ZH-12OW |
| Speed | 30-125 carton/min |
| Total power | 0.750 KW |
| Power supply | 220/380V 50Hz |
| Requirements of carton | size range of carton:L(70-185)*W(35-90)*H(14-50)mm |
| carton weight:250-350g/㎡ | |
| Requirements of instructions | size range of instructions:L(78-250)*W(90-170)mm |
| range of folding times of instructions:1-4 fold | |
| instructions weight:60-70g/㎡ | |
| Pressure | pressure intensity:≥0.6MPa |
| air consumption:120-160 L/min | |
| Overall size of machine | 3100*1100*1550㎜ |
| Net weight of machine | about 1600kg |
Production workshop:

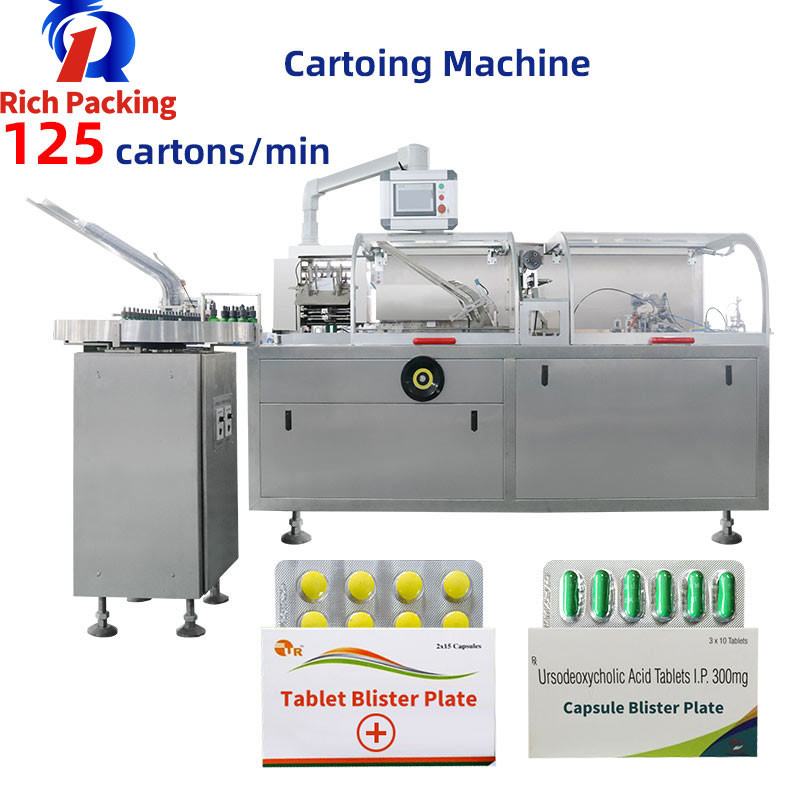

Automatic Horizontal Cartoning Machine For Drugs Tablets Capsule
Introduction of automatic cartoning machine:
Automatic Horizontal Cartoning Packing Machine is a multi-functional product integrating light and electricity developed by Guangdong Rich Packing Machinery Co.,Ltd in recent years.The cartoning pack machine can automatically and quickly pack aluminum plastic board, electronic cigarette, facial cleanser, ointment, soft bag, bottle, powder, granule bag, condom, soft double-layer aluminum, gypsum, coffee, mask and etc.
This cartoning box packing mchinery has high integration,this automatic horizontal cartoning packing machine can be connected with tail sealing machine,aluminum plastic blister packing machine,strapping machine according to customers’ production requirements.
Features of automatic cartoning packing machine:
1.The cartoning packing machine equip with intelligence is highly,the accuracy of loading is 99.8%.Inspection points are densely distributed in various workstation, such as feeding device, quantity inspection , packaging into conveyer belt inspection, number of packages inspection, carton in place inspection and etc.
2.All the materials of this horizontal cartoning packing mahine are made of nickel-chromium plated or stainless steel material, with stable chemical performance, corrosion resistance, non-toxicity and harmlessness. The welding position is tempered and durable.
3.The cartonning packaging machine is equipped with protective device. When the machine breaks down, the protective function will be activated immediately. It will not waste materials and ensure the safety of operators.
4.Three inspection were carried out in the packaging process of the products and instructions, and 100% of the unqualified products were rejected.
5.The feeding part of horizontal cartoning packing machine adopts double servo motor,speed up to 120 carton/min,compared with single servo motor,it has fast speed and stable operation.
