Only create value for our customers, we have the value of existence.

|
| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS/GMP |
| Model Number: | RQ-ZH-120L |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 Sets/month |
| After-sale Provide: | Engineers Available To Service Machinery Overseas | Product Name: | Automatic Pharmaceutical Cartoning Machine |
|---|---|---|---|
| Type: | Vertical Cartoning Machine | Production: | 30-120 Cartons/min |
| Size Range Of Carton: | L(65-150)*W(35-85)*H(12-45)mm | Carton Weight: | 250-350g/㎡ |
| Function: | Cartoning Box Packing Machine | ||
| Highlight: | high speed packaging machines,automatic capsule filler |
||
| Spare Parts Name | Specification | Manufacture |
| Servo Motor | 400W MHMD042G1U | Panasonic |
| Main Motor | R17DT80N4 1.1KW/220V/380V | SEW |
| Frequency Converter | FC-051P1K5S2E20H | Danfoss |
| PLC | Smart ST40 | Siemens |
| Emergency Stop Button | ZB2-BE102C | Schneider |
| Air Circuit Breaker | DZ47-D63/2P | Yaohua |

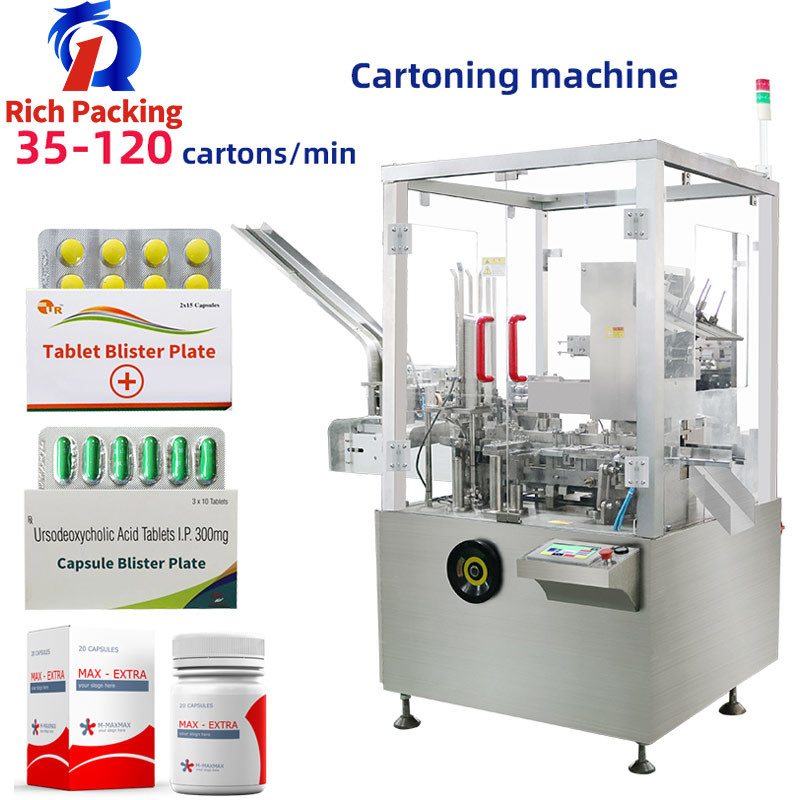

Product details:

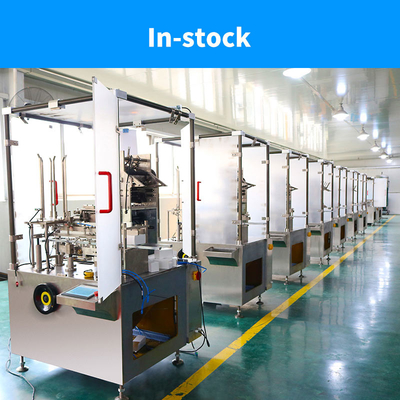

Production workshop:
On-site debugging:
About us:
Features:
1. The feeding part of machine adopts double servo motor,speed up to 120 carton/min,compared with single servo motor,it has fast speed and stable operation.
2. Dual clutch design, when the main motor overload or folding machine failure, start protection function to ensure the safety of equipment and personnel.
3. Detection points are densely distributed in various workplaces, such as feeding, quantity detection , packaging into conveyer belt, number of packages, carton in place and so on.
