| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | RQ-ZH-120L |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiated price |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Automatic Facial Tissue Paper Box Carton Packing Machine | Speed: | 30-125 Carton/min |
|---|---|---|---|
| Total Power: | 0.750 KW | Size Range Of Carton: | L(70-185)*W(35-90)*H(14-50)mm |
| Range Of Folding Times Of Instructions: | 1-4 Fold | Power Supply: | 220/380V 50Hz |
| Carton Weight: | 250-350g/㎡ | Size Range Of Instructions: | L(78-250)*W(90-170)mm |
| Instructions Weight: | 60-70g/㎡ | Pressure Intensity: | ≥0.6MPa |
| Air Consumption: | 120-160 L/min | Overall Size Of Machine: | 3100*1100*1550㎜ |
| Net Weight Of Machine: | 1600kg | ||
| Highlight: | auto cartoner machine,carton packing machine |
||

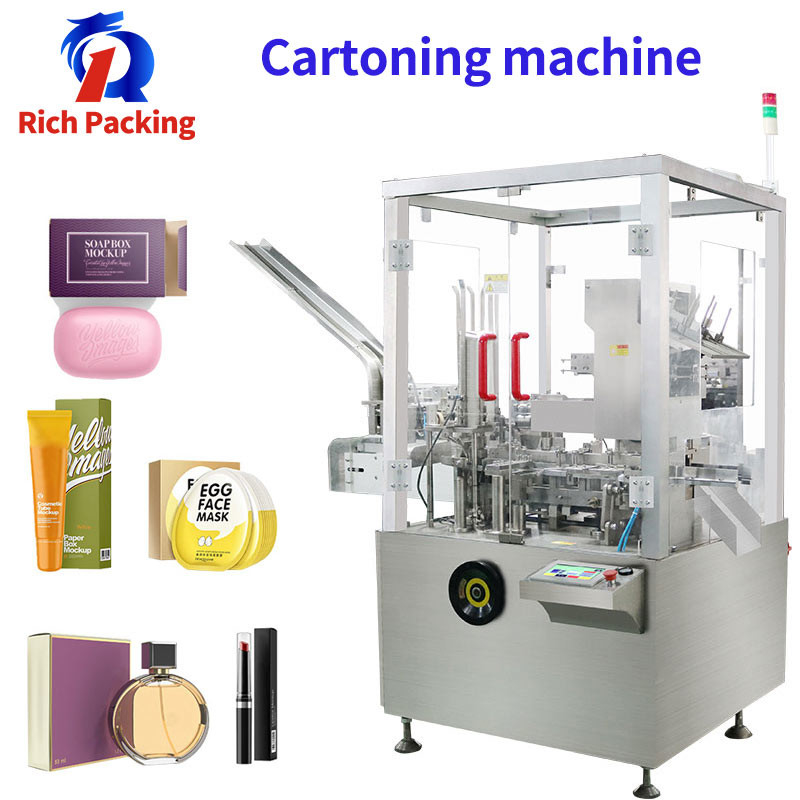

Automatic Facial Tissue Paper Box Cartoning Packing Machine
| Model | RQ-ZH-12OW |
| Speed | 30-125 carton/min |
| Total power | 0.750 KW |
| Power supply | 220/380V 50Hz |
| Requirements of carton | size range of carton:L(70-185)*W(35-90)*H(14-50)mm |
| carton weight:250-350g/㎡ | |
| Requirements of instructions | size range of instructions:L(78-250)*W(90-170)mm |
| range of folding times of instructions:1-4 fold | |
| instructions weight:60-70g/㎡ | |
| Pressure | pressure intensity:≥0.6MPa |
| air consumption:120-160 L/min | |
| Overall size of machine | 3100*1100*1550㎜ |
| Net weight of machine | about 1600kg |
Product details:

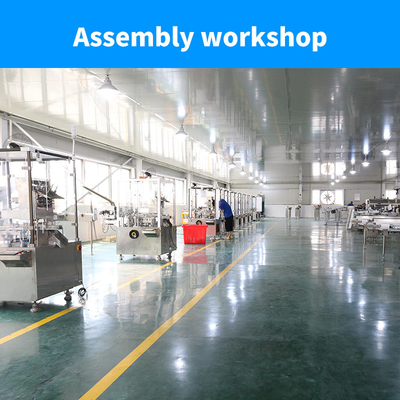

Production workshop:
Our client:
Quality Control:
Introduction of cartoning machine:
This automatic horizontal cartoning packing machine is especially suitable for bag and bottle products with large specifications,and it high degree of automation,from feeding,suction carton,forming,on line transmission,folding of leaflet,material testing,products and leaflet pushing into carton,printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue),lack of material detection and rejection all automatically completed with improves work efficiency.
Features of cartoning box packing machine:
6.The cartoning packaging machine is easy to adjust, only 3-5 parts need to be replaced to pack products of different sizes.
7.spare part of this cartoning box packing machine adopt international famous brands, such as Siemens, Baker, Omron, etc.
8.When the cartoning machine breaks down,the specific situation can be check on the PLC ,convenient to maintenance and repair.
9.The automatic horizontal cartoning packing machine produced by Guangdong Rich Packing Co.,Ltd has stable performance and is suitable for 24 hours operation.
10.This automatic horizontal cartoning packing machine can be connected with aluminum plastic blister packing machine,tail sealing machine,wrapping machine according to customers’ production requirements.
11.All spare parts of horizontal cartoning packing machine produced by Guangdong Rich Packing Machinery Co., Ltd are engraved with codes to facilitate the daily maintenance of customers.
Inspection points are centrally distributed in various workstations, such as feeding device, quantity inspection, packaging into the conveyor belt inspection, packaging number inspection, carton in-situ inspection and so on. Smooth operation, suitable for 24-hour continuous production.
