| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | RQ-ZHL-120L |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $26583-32000/pc |
| Packaging Details: | the Carton Box Packing Machine machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation. |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | 120 Automatic Cartoner Mono Carton Box Packing Machine Tube Bottle Cartoning Machine | Speed: | 35-125 Carton/min |
|---|---|---|---|
| Total Power: | 1.10 KW | Size Range Of Carton: | L(65-150)*W(35-85)*H(12-45)mm |
| Range Of Folding Times Of Instructions: | 1-4 Fold | Power Supply: | 220/380V 50Hz |
| Carton Weight: | 240-360g/㎡ | Size Range Of Instructions: | L(78-250)*W(85-170)mm |
| Instructions Weight: | 60-70g/㎡ | Pressure Intensity: | ≥0.6MPa |
| Air Consumption: | 120-160 L/min | Overall Size Of Machine: | 2150*1140*1800㎜ |
| Net Weight Of Machine: | 1500kg | ||
| Highlight: | Tube Bottle Cartoning Machine,vertical Automatic Cartoning Machine |
||

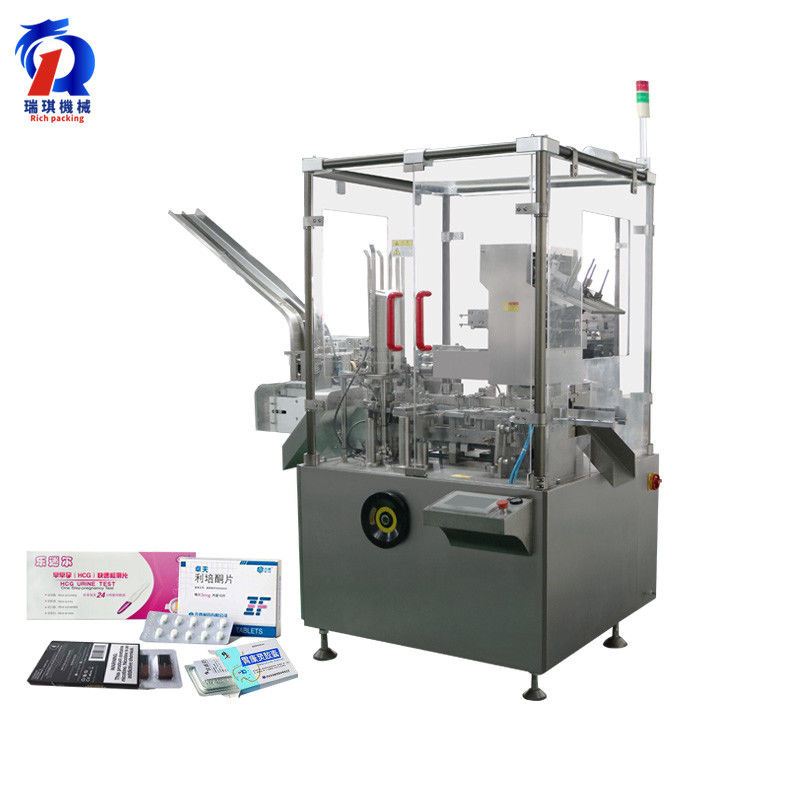

120 automatic cartoner mono carton box packing machine,tube bottle cartoning machine
RQ-ZH-120L Automatic vertical cartoning packing machine can pack products of various specifications on one machine,such as various products such as aluminum plastic plate and aluminum aluminum plate, electronic cigarette,facial cleanser,ointment,Sealed pouch various bottled products.High degree of automation,from feeding,suction carton,forming,on line transmission,folding of leaflet(1-4 folds),material testing,products and leaflet pushing into carton,printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue),lack of material detection and rejection all automatically completed.It is high technology product incorporates pneumatic - photo - electro - mechanic with improves work efficiency and reduces labor cost.
| Model | RQ-ZHL-12OL |
| Speed | 35-125 carton/min |
| Total power | 1.10 KW |
| Power supply | 220/380V 50Hz |
| Requirements of carton | size range of carton:L(65-150)*W(35-85)*H(12-45)mm |
| carton weight:240-360g/㎡ | |
| Requirements of instructions | size range of instructions:L(78-250)*W(85-170)mm |
| range of folding times of instructions:1-4 fold | |
| instructions weight:60-70g/㎡ | |
| Pressure | pressure intensity:≥0.6MPa |
| air consumption:120-160 L/min | |
| Overall size of machine | 2150*1140*1800㎜ |
| Net weight of machine | about 1500kg |
small carton box packing machine vertical carton box packing machine erecting carton box packing machine vertical load product cartoning machine
small carton box packing machine vertical carton box packing machine erecting carton box packing machine vertical load product cartoning machine
small carton box packing machine vertical carton box packing machine erecting carton box packing machine vertical load product cartoning machine
120 automatic cartoner mono carton box packing machine tube bottle cartoning machine
