| Place of Origin: | CHINA MAINLAND |
| Brand Name: | Richpacking |
| Certification: | SGS CE ISO |
| Model Number: | RQ-ZH-450W |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | S313500-S33650 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Product Name: | RQ-ZH-450W Automatic L Cartoning Machine | Speed: | 450 Carton/min |
|---|---|---|---|
| Pressure: | Pressure Intensity:≥0.6MPa | Total Power: | 4.5 KW |
| Power Supply: | 220/380V 50Hz | Overall Size Of Machine: | 4800*1800*2000㎜ |
| Net Weight Of Machine: | About 5500kg | Folder: | MB |
| Vacuum Pump: | BECKER | ||
| High Light: | carton packing machine,cartonator packing machine |
||

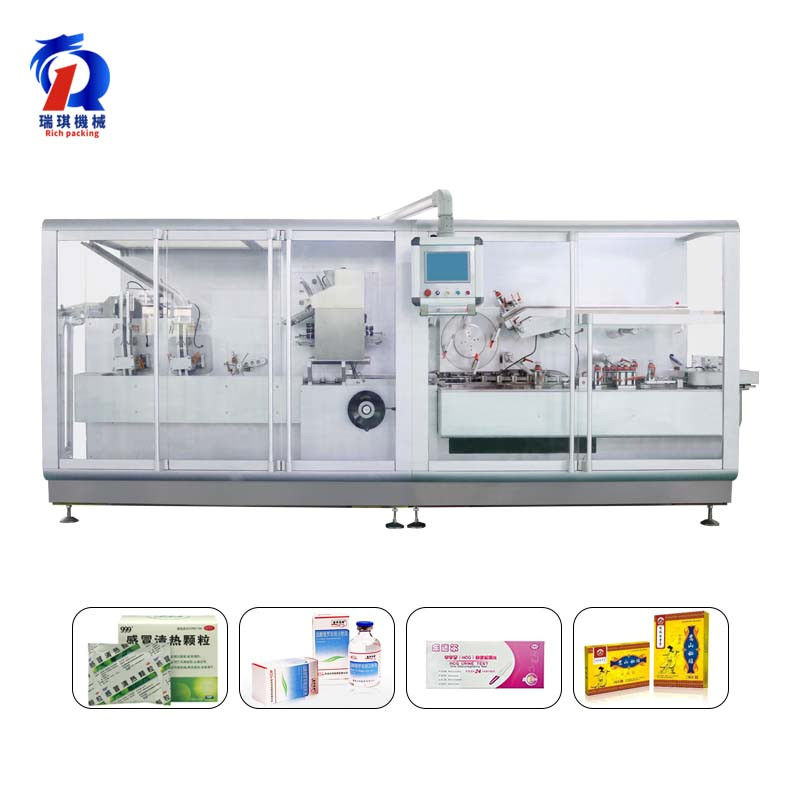

Offering Overseas Installation RQ-ZH-450W Automatic horizontal cartoning packing machine
RQ-ZH-450W Automatic horizontal cartoning packing machine is a new generation of rapid cartoning machine developed by Guangdong Rich Packing Machinery Co.,Ltd, with a speed of up to 450 cartons per minute.450W Horizontal Packaging adopts the most advanced design concept and adopts low platform fully enclosed design. The speed is faster and easier to operation,and it meets the requirements of GMP . This series of cartoning machines are mainly provided to pharmaceutical, chemical, food, health care products, medical appliances and other enterprises which require high-speed cartoning speed.
The 450 series cartoning packing machine producted by Guangdong Rich Packing Machinery Co.,Ltd can packaging all kind of materials. It can pack products of multiple specifications with one machine. It has a high degree of intellectualization. It can automatically from feeding, material detection, manual detection, pushing materials, forming, conveying, with top fold flaps and sealing cartons (mechanical or hot melt glue sealing cartons).
This cartoning machine adopts low platform, large plane, fully enclosed design, easy operation, effective pollution isolation, simple operation, easy cleaning and meets th requirements of GMP.
This series of cartoning packing machines create a new opening mechanism, which uses a rotating quadrilateral double planetary wheel structure to open the cartons, and equipped with two pre-forming devices to ensure the forming effect of cartons, avoiding the collision of large cartons when working.
450W cartoning machine Detection points are distributed in various workstation, such feeding , loading capacity detection , packaging into conveyor belt detection, quantity of packages inspection, carton in place inspection and etc.If there are no instruction or products in the carton, they will be rejected after detection.
450 cartoning packing machine body is made of stainless steel or nickel-chromium plated material, and the welding position is tempered. The chemical performance is stable. It has the advantages of corrosion resistance, non-toxicity, harmlessness and durability.
Our Successful Customers
Our product showroom
Our factory has a history of 25 years experience in manufacturing. And the total area of our factory is 7996㎡ with 12 R&D personnel, 52 units/ set of facilities like laser cutting machine and CNC machining center. With high production efficiency, can produce 3000 units/set of machines. We have obtained SGS, CE and ISO certificates, and won respect and trust from our customers for high quality, quick and efficient services and honesty, like UCB, GSK and Guangzhou Phar. Holdings.
Main products are including automatic capsule filling machine, tablet press machine, electronic counting machine, blister packing machine, cartooning machine, etc.
Our service team
Introduction of related products(tablet press machine capsule filling machine blister packing machine)
