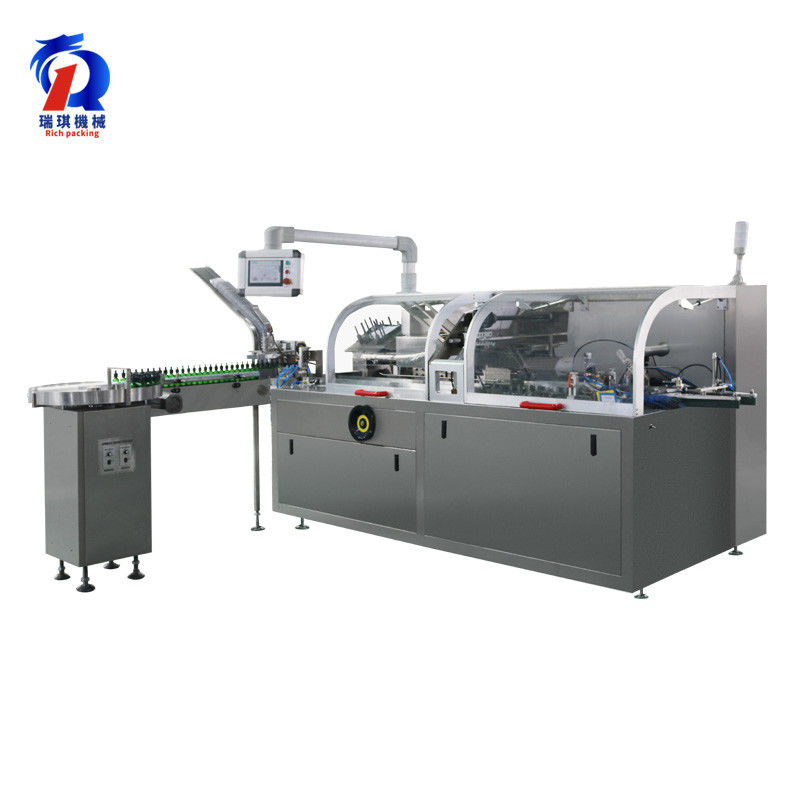

Pharmaceutical Ointment Automatic Cartoning Machine With Long Service Life

Pharmaceutical Ointment Automatic Cartoning Machine With Long Service Life

  • Pharmaceutical Ointment Automatic Cartoning Machine With Long Service Life
Pharmaceutical Ointment Automatic Cartoning Machine With Long Service Life
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: RQ-ZH-12OW
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $29000-36000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Automatic Ointment Pharmaceutical Small Cartoning Box Packaging Machine Speed: 30-125 Carton/min
Total Power: 0.750 KW Size Range Of Carton: L(70-185)*W(35-90)*H(14-50)mm
Range Of Folding Times Of Instructions: 1-4 Fold Power Supply: 220/380V 50Hz
Size Range Of Instructions: L(78-250)*W(90-170)mm Instructions Weight: 60-70g/㎡
Net Weight Of Machine: 1600kg Pressure Intensity: ≥0.6MPa
Air Consumption: 120-160 L/min Overall Size Of Machine: 3100*1100*1550㎜
Carton Weight: 250-350g/㎡
High Light:

auto cartoner machine

,

cartonator packing machine

Automatic Ointment Pharmaceutical Small Cartoning Box Packaging Machine

Introduction of cartoning machine:

This cartoning box packing mchinery has high integration,this automatic horizontal cartoning packing machine can be connected with tail sealing machine,aluminum plastic blister packing machine,strapping machine according to customers’ production requirements.The cartoning mchine equips high degree of automation,from feeding,suction carton,forming,on line transmission,folding of leaflet,material testing,products and leaflet pushing into carton,printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue),lack of material detection and rejection all automatically completed with improves work efficiency.

Features of cartoning box packing machine:

1. All the materials of this horizontal cartoning packing mahine are made of nickel-chromium plated or stainless steel material, with stable chemical performance, corrosion resistance, non-toxicity and harmlessness. The welding position

is tempered and durable.
2. The cartonning packaging machine is equipped with protective device. When the machine breaks down, the protective function will be activated immediately. It will not waste materials and ensure the safety of operators.

3. spare part of this cartoning box packing machine adopt international famous brands, such as Siemens, Baker, Omron, etc.
4. When the cartoning machine breaks down,the specific situation can be check on the PLC ,convenient to maintenance and repair.

Model RQ-ZH-12OW
Speed 30-125 carton/min
Total power 0.750 KW
Power supply 220/380V 50Hz
Requirements of carton size range of carton:L(70-185)*W(35-90)*H(14-50)mm
  carton weight:250-350g/㎡
Requirements of instructions size range of instructions:L(78-250)*W(90-170)mm
  range of folding times of instructions:1-4 fold
  instructions weight:60-70g/㎡
Pressure pressure intensity:≥0.6MPa
  air consumption:120-160 L/min
Overall size of machine 3100*1100*1550㎜
Net weight of machine about 1600kg



Pharmaceutical Ointment Automatic Cartoning Machine With Long Service Life 0



Pharmaceutical Ointment Automatic Cartoning Machine With Long Service Life 1

When the machine breaks down,the specific situation can be check on the PLC ,convenient to maintenance and repair that save time.

Pharmaceutical Ointment Automatic Cartoning Machine With Long Service Life 2

Easy to adjust, only 3-5 parts need to be replaced to pack products of different sizes.
