Only create value for our customers, we have the value of existence.
 |
| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | RQ-ZH-12OW |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $29000-36000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Automatic Cartoning Box Packing Machinery Connect With Blister Machine | Speed: | 30-125 Carton/min |
|---|---|---|---|
| Total Power: | 0.750 KW | Size Range Of Carton: | L(70-185)*W(35-90)*H(14-50)mm |
| Range Of Folding Times Of Instructions: | 1-4 Fold | Power Supply: | 220/380V 50Hz |
| Size Range Of Instructions: | L(78-250)*W(90-170)mm | Instructions Weight: | 60-70g/㎡ |
| Net Weight Of Machine: | 1600kg | Pressure Intensity: | ≥0.6MPa |
| Air Consumption: | 120-160 L/min | Overall Size Of Machine: | 3100*1100*1550㎜ |
| Carton Weight: | 250-350g/㎡ | ||
| High Light: | auto cartoner machine,carton packing machine |
||

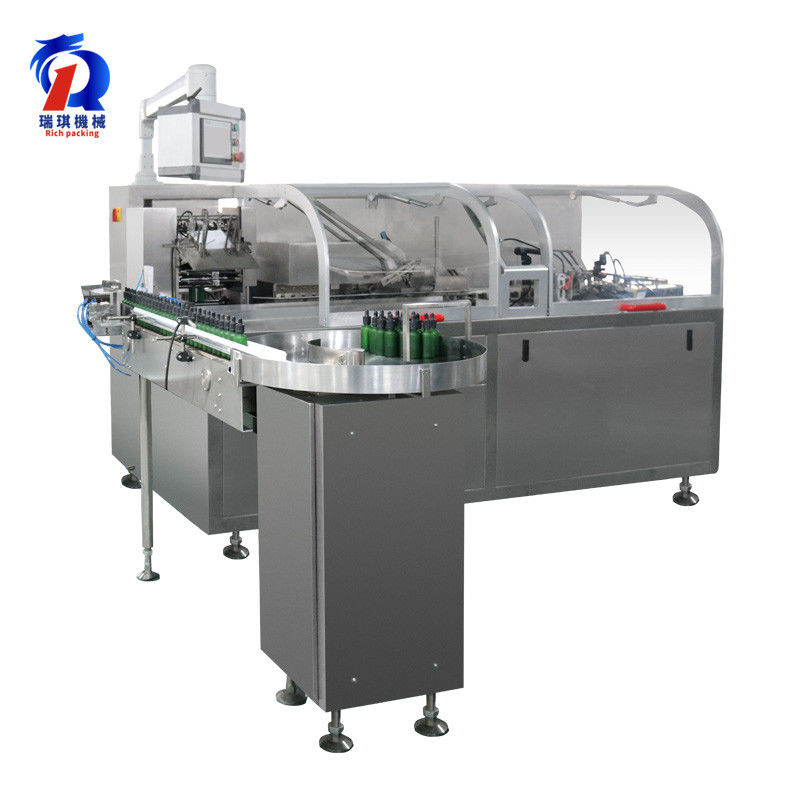

Automatic Cartoning Box Packing Machinery Connect with Blister Machine
Introduction of cartoning machine:
The cartoning pack machine can automatically and quickly pack aluminum plastic board, electronic cigarette, facial cleanser, ointment, soft bag, bottle, powder, granule bag, condom, soft double-layer aluminum, gypsum, coffee, mask and etc.This automatic horizontal cartoning packing machine is especially suitable for bag and bottle products with large specifications
Features of cartoning box packing machine:
1.The cartoning packing machine equip with intelligence is highly,the accuracy of loading is 99.8%.Inspection points are densely distributed in various workstation, such as feeding device, quantity inspection , packaging into conveyer
belt inspection, number of packages inspection, carton in place inspection and etc.
2.The cartonning packaging machine is equipped with protective device. When the machine breaks down, the protective function will be activated immediately. It will not waste materials and ensure the safety of operators.
3.The feeding part of horizontal cartoning packing machine adopts double servo motor,speed up to 120 carton/min,compared with single servo motor,it has fast speed and stable operation.
4.spare part of this cartoning box packing machine adopt international famous brands, such as Siemens, Baker, Omron, etc.
| Model | RQ-ZH-12OW |
| Speed | 30-125 carton/min |
| Total power | 0.750 KW |
| Power supply | 220/380V 50Hz |
| Requirements of carton | size range of carton:L(70-185)*W(35-90)*H(14-50)mm |
| carton weight:250-350g/㎡ | |
| Requirements of instructions | size range of instructions:L(78-250)*W(90-170)mm |
| range of folding times of instructions:1-4 fold | |
| instructions weight:60-70g/㎡ | |
| Pressure | pressure intensity:≥0.6MPa |
| air consumption:120-160 L/min | |
| Overall size of machine | 3100*1100*1550㎜ |
| Net weight of machine | about 1600kg |
Inspection points are centrally distributed in various workstations, such as feeding device, quantity inspection, packaging into the conveyor belt inspection, packaging number inspection, carton in-situ inspection and so on. Smooth operation, suitable for 24-hour continuous production.
Contact Person: Owen zhang
Tel: 15920493206
