|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||20-30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Name:||E-liquid Bottle Cartoning Machine / Automatic Small Glass Bottle Cartoning Machine||Speed:||30-125 Carton/min|
|Total Power:||0.750 KW||Size Range Of Carton:||L(70-185)*W(35-90)*H(14-50)mm|
|Range Of Folding Times Of Instructions:||1-4 Fold||Power Supply:||220/380V 50Hz|
|Size Range Of Instructions:||L(78-250)*W(90-170)mm||Instructions Weight:||60-70g/㎡|
|Net Weight Of Machine:||1600kg||Pressure Intensity:||≥0.6MPa|
|Air Consumption:||120-160 L/min||Overall Size Of Machine:||3100*1100*1550㎜|
auto cartoner machine,
cartonator packing machine

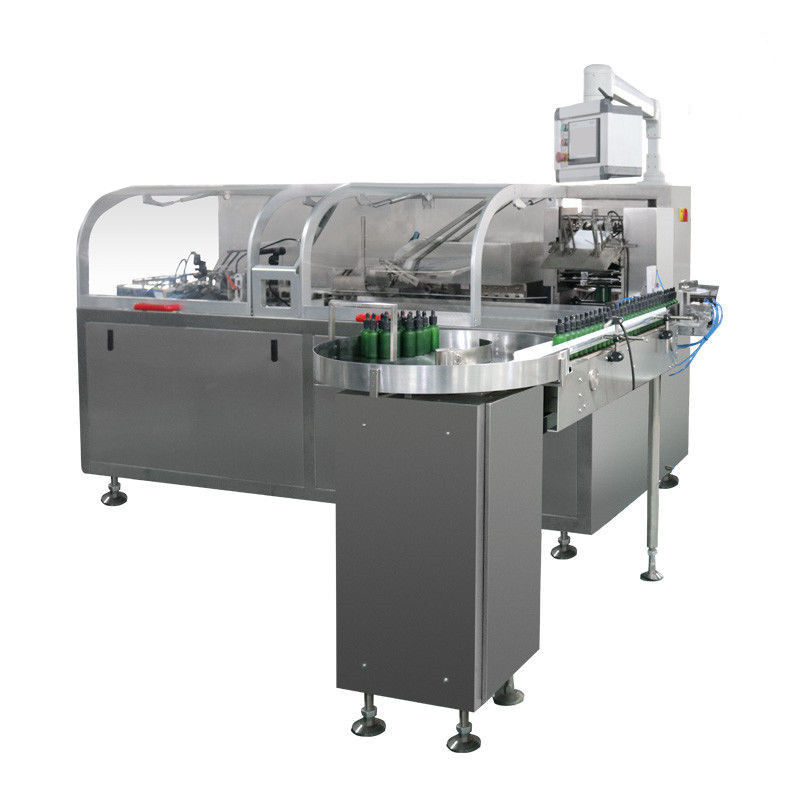

E-liquid Bottle Cartoning Machine / Automatic Small Glass Bottle Cartoning Machine
Introduction of cartoning machine:
This automatic horizontal cartoning packing machine is especially suitable for bag and bottle products with large specifications.The cartoning mchine equips high degree of automation,from feeding,suction carton,forming,on line transmission,folding of leaflet,material testing,products and leaflet pushing into carton,printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue),lack of material detection and rejection all automatically completed with improves work efficiency.The carton box packaging machine is fully meets of the requirements of GMP.
Features of cartoning box packing machine:
1. Automatic Horizontal Cartoning Packing Machine is a multi-functional product integrating light and electricity developed by Guangdong Rich Packing Machinery Co.,Ltd in recent years.
2. The cartoning pack machine can automatically and quickly pack aluminum plastic board, electronic cigarette, facial cleanser, ointment, soft bag, bottle, powder, granule bag, condom, soft double-layer aluminum, gypsum, coffee, mask and
3. The cartonning packaging machine is equipped with protective device. When the machine breaks down, the protective function will be activated immediately. It will not waste materials and ensure the safety of operators.
4. Three inspection were carried out in the packaging process of the products and instructions, and 100% of the unqualified products were rejected.
5. The feeding part of horizontal cartoning packing machine adopts double servo motor,speed up to 120 carton/min,compared with single servo motor,it has fast speed and stable operation.
|Total power||0.750 KW|
|Power supply||220/380V 50Hz|
|Requirements of carton||size range of carton:L(70-185)*W(35-90)*H(14-50)mm|
|Requirements of instructions||size range of instructions:L(78-250)*W(90-170)mm|
|range of folding times of instructions:1-4 fold|
|air consumption:120-160 L/min|
|Overall size of machine||3100*1100*1550㎜|
|Net weight of machine||about 1600kg|
Inspection points are centrally distributed in various workstations, such as feeding device, quantity inspection, packaging into the conveyor belt inspection, packaging number inspection, carton in-situ inspection and so on. Smooth operation, suitable for 24-hour continuous production.
