|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||20-30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Name:||Pharmaceutical Automatic Cartoning Box Packing Machine For Pharmacy||Speed:||35-125 Carton/min|
|Total Power:||1.10 KW||Size Range Of Carton:||L(65-150)*W(35-85)*H(12-45)mm|
|Range Of Folding Times Of Instructions:||1-4 Fold||Power Supply:||220/380V 50Hz|
|Carton Weight:||240-360g/㎡||Size Range Of Instructions:||L(78-250)*W(85-170)mm|
|Instructions Weight:||60-70g/㎡||Pressure Intensity:||≥0.6MPa|
|Air Consumption:||120-160 L/min||Overall Size Of Machine:||2150*1140*1800㎜|
|Net Weight Of Machine:||1500kg|
auto cartoner machine,
cartonator packing machine

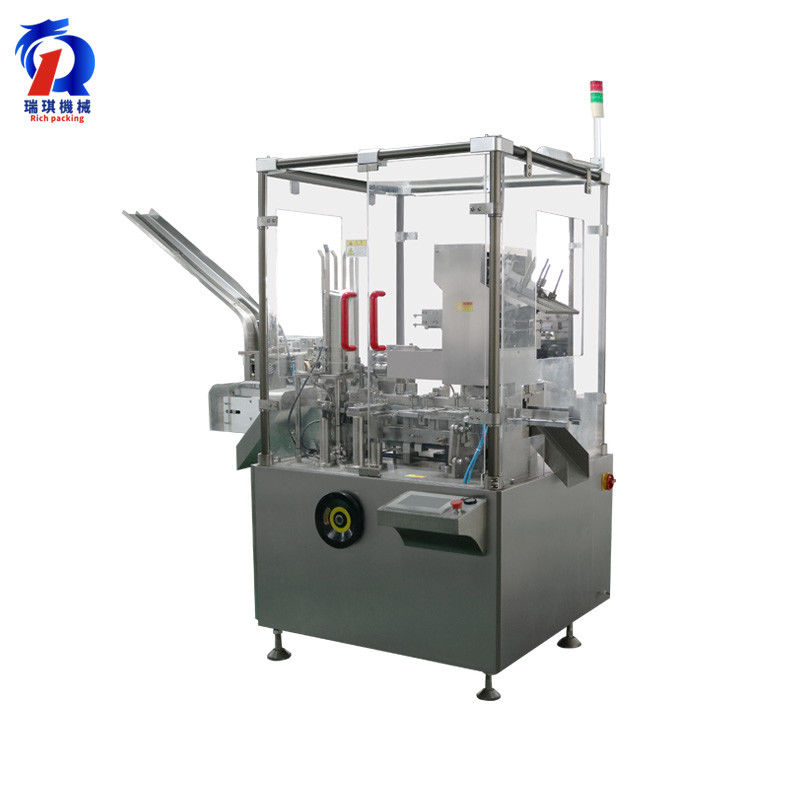

Pharmaceutical Automatic Cartoning Box Packing Machine for Pharmacy
Introduction of cartoning machine:
Automatic vertical cartoning packing machine can packed various products such as aluminum plastic plate and aluminum aluminum plate, electronic cigarette,facial cleanser,ointment,Sealed pouch various bottled products.The cartoning packing machine can be connected with the blister packing machine, from feeding,suction carton,forming,on line transmission,folding of leaflet(1-4 folds),material testing,products and leaflet pushing into carton,printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue)
Features of cartoning box packing machine:
1. All the materials of cartonging machine are made of stainless steel or nickel-chromium plated material, with stable chemical performance, corrosion resistance, non-toxicity and harmlessness. The welding position of cartoning machine is
tempered and durable.
2. Three detection of the carton box packing machinery were carried out in the packaging process of the products and instructions, and 100% of the unqualified products were rejected.
3. Dual clutch design, when the main motor overload or folding machine failure, start protection function to ensure the safety of carton machine equipment and personnel.
4. The cartoning box packing machine accessories adopt well-known brands, such as Siemens, Baker, Omron, etc
5. The automatic cartoning box packing mchines equip spare part are engraved with codes,convenient customer to daily maintenance and repair.
|Total power||1.10 KW|
|Power supply||220/380V 50Hz|
|Requirements of carton||size range of carton:L(65-150)*W(35-85)*H(12-45)mm|
|Requirements of instructions||size range of instructions:L(78-250)*W(85-170)mm|
|range of folding times of instructions:1-4 fold|
|air consumption:120-160 L/min|
|Overall size of machine||2150*1140*1800㎜|
|Net weight of machine||about 1500kg|
Back-push feeding, convenient for front-end operation.
