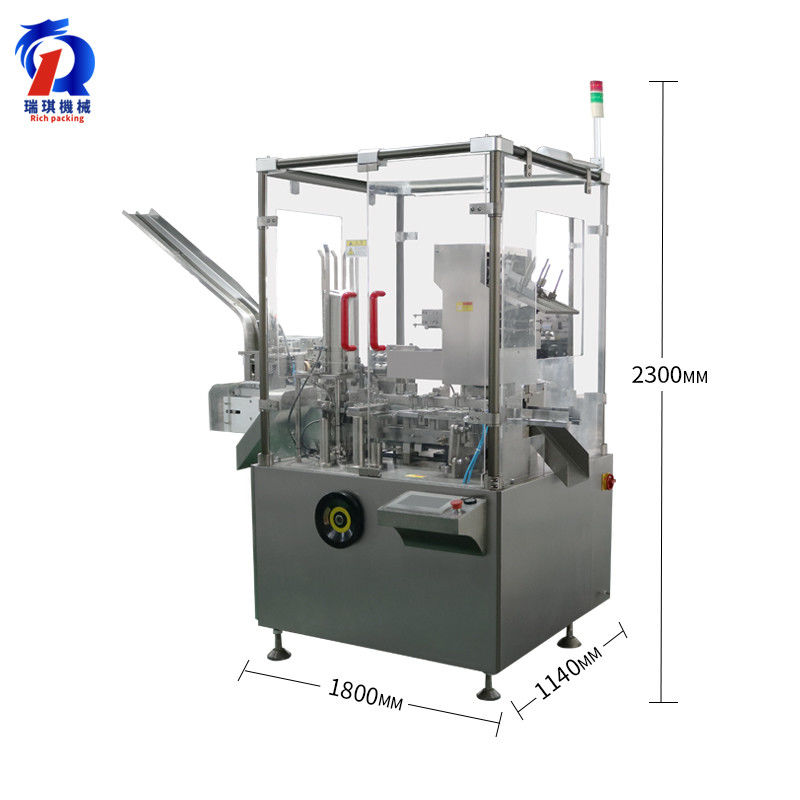

Automatic Vertical High Speed Cartoning Machine With Start Protection Function

Automatic Vertical High Speed Cartoning Machine With Start Protection Function

  • Automatic Vertical High Speed Cartoning Machine With Start Protection Function
Automatic Vertical High Speed Cartoning Machine With Start Protection Function
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: RQ-ZHL-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $27000-32000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Wholesale China Factory Supply Automatic Vertical Cartoning Packing Machine Speed: 35-125 Carton/min
Total Power: 1.10 KW Size Range Of Carton: L(65-150)*W(35-85)*H(12-45)mm
Range Of Folding Times Of Instructions: 1-4 Fold Power Supply: 220/380V 50Hz
Carton Weight: 240-360g/㎡ Size Range Of Instructions: L(78-250)*W(85-170)mm
Instructions Weight: 60-70g/㎡ Pressure Intensity: ≥0.6MPa
Air Consumption: 120-160 L/min Overall Size Of Machine: 2150*1140*1800㎜
Net Weight Of Machine: 1500kg
High Light:

carton packing machine

,

cartonator packing machine

Wholesale China Factory Supply Automatic Vertical Cartoning Packing Machine

Introduction of cartoning machine:

The cartoning box packing machien is high technology product,from feeding,suction carton,forming,on line transmission,folding of leaflet(1-4 folds),material testing,products and leaflet pushing into carton,printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue),lack of material detection and rejection all automatically completed.

Features of cartoning box packing machine:

1. Cartoning packing machine has high integration,this automatic vertical cartoning packing machine can be connected with tail sealing machine,aluminum plastic blister packing machine,strapping machine according to customers’ production

requirements.
2. This cartoning packing machine covers an area of about 3㎡ and is easy to handle and use.

3. Dual clutch design, when the main motor overload or folding machine failure, start protection function to ensure the safety of carton machine equipment and personnel.
4. The cartoning box packing machine with high intelligence,accurate loading monitoring.Detection points are densely distributed in various workplaces, such as feeding, quantity detection , packaging into conveyer belt, number of

Model RQ-ZHL-12OL
Speed 35-125 carton/min
Total power 1.10 KW
Power supply 220/380V 50Hz
Requirements of carton size range of carton:L(65-150)*W(35-85)*H(12-45)mm
  carton weight:240-360g/㎡
Requirements of instructions size range of instructions:L(78-250)*W(85-170)mm
  range of folding times of instructions:1-4 fold
  instructions weight:60-70g/㎡
Pressure pressure intensity:≥0.6MPa
  air consumption:120-160 L/min
Overall size of machine 2150*1140*1800㎜
Net weight of machine about 1500kg



Automatic Vertical High Speed Cartoning Machine With Start Protection Function 0

Automatic Vertical High Speed Cartoning Machine With Start Protection Function 1

All the materials are made of stainless steel or nickel-chromium plated material, with stable chemical performance, corrosion resistance, non-toxicity and harmlessness. The welding position is tempered and durable.
