| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | RQ-ZHL-120 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $27000-32000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Fully Automatic Cartoning Box Packaging Machine With CE ISO SGS | Speed: | 35-125 Carton/min |
|---|---|---|---|
| Total Power: | 1.10 KW | Size Range Of Carton: | L(65-150)*W(35-85)*H(12-45)mm |
| Range Of Folding Times Of Instructions: | 1-4 Fold | Power Supply: | 220/380V 50Hz |
| Carton Weight: | 240-360g/㎡ | Size Range Of Instructions: | L(78-250)*W(85-170)mm |
| Instructions Weight: | 60-70g/㎡ | Pressure Intensity: | ≥0.6MPa |
| Air Consumption: | 120-160 L/min | Overall Size Of Machine: | 2150*1140*1800㎜ |
| Net Weight Of Machine: | 1500kg | ||
| High Light: | auto cartoner machine,cartonator packing machine |
||

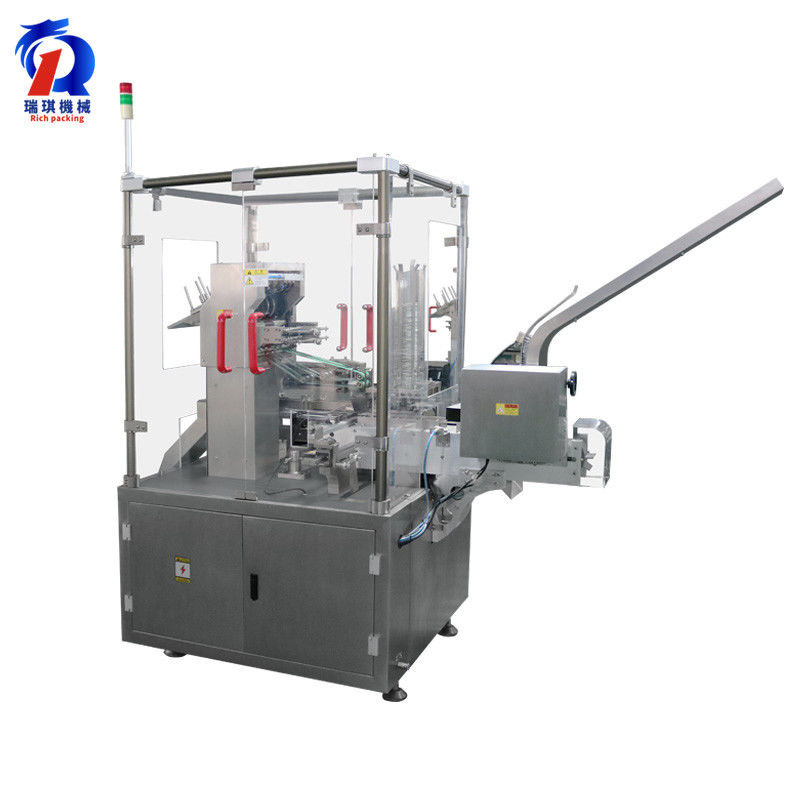

Fully Automatic Cartoning Box Packaging Machine With CE ISO SGS
Introduction of cartoning machine:
The cartoning machine is a kind of packaging machinery, which includes automatic cartoning machine, medicinal cartoning machine and so on. The automatic cartoning machine automatically loads bottles, tablets, ointments and instructions into folding cartons and completes the capping action.
Features of cartoning box packing machine:
1. Automatic vertical cartoning packing machine can packed various products such as aluminum plastic plate and aluminum aluminum plate, electronic cigarette,facial cleanser,ointment,Sealed pouch various bottled products.
2. The cartoning packing machine can be connected with the blister packing machine,three dimensional transparent film wrapping machine and strapping machine to form a production line.
3. The cartoning box packing machine accessories adopt well-known brands, such as Siemens, Baker, Omron, etc
4. The automatic vertical cartoning packing machine produced by Guangdong Rich Packing Machinery Co.,Ltd has stable performance and is suitable for 24 hours operation.
5. When the cartoning packing machine breaks down,the specific situation can be check on the PLC ,convenient to maintenance and repair.
| Model | RQ-ZHL-12OL |
| Speed | 35-125 carton/min |
| Total power | 1.10 KW |
| Power supply | 220/380V 50Hz |
| Requirements of carton | size range of carton:L(65-150)*W(35-85)*H(12-45)mm |
| carton weight:240-360g/㎡ | |
| Requirements of instructions | size range of instructions:L(78-250)*W(85-170)mm |
| range of folding times of instructions:1-4 fold | |
| instructions weight:60-70g/㎡ | |
| Pressure | pressure intensity:≥0.6MPa |
| air consumption:120-160 L/min | |
| Overall size of machine | 2150*1140*1800㎜ |
| Net weight of machine | about 1500kg |
Instructions separation device.
