| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | RQ-ZHL-120 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $27000-32000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Fully Automatic Carton Box Cartoning Food Bottle Blister Pharmaceutical Machine | Speed: | 35-125 Carton/min |
|---|---|---|---|
| Total Power: | 1.10 KW | Size Range Of Carton: | L(65-150)*W(35-85)*H(12-45)mm |
| Range Of Folding Times Of Instructions: | 1-4 Fold | Power Supply: | 220/380V 50Hz |
| Carton Weight: | 240-360g/㎡ | Size Range Of Instructions: | L(78-250)*W(85-170)mm |
| Instructions Weight: | 60-70g/㎡ | Pressure Intensity: | ≥0.6MPa |
| Air Consumption: | 120-160 L/min | Overall Size Of Machine: | 2150*1140*1800㎜ |
| Net Weight Of Machine: | 1500kg | ||
| High Light: | carton packing machine,cartonator packing machine |
||

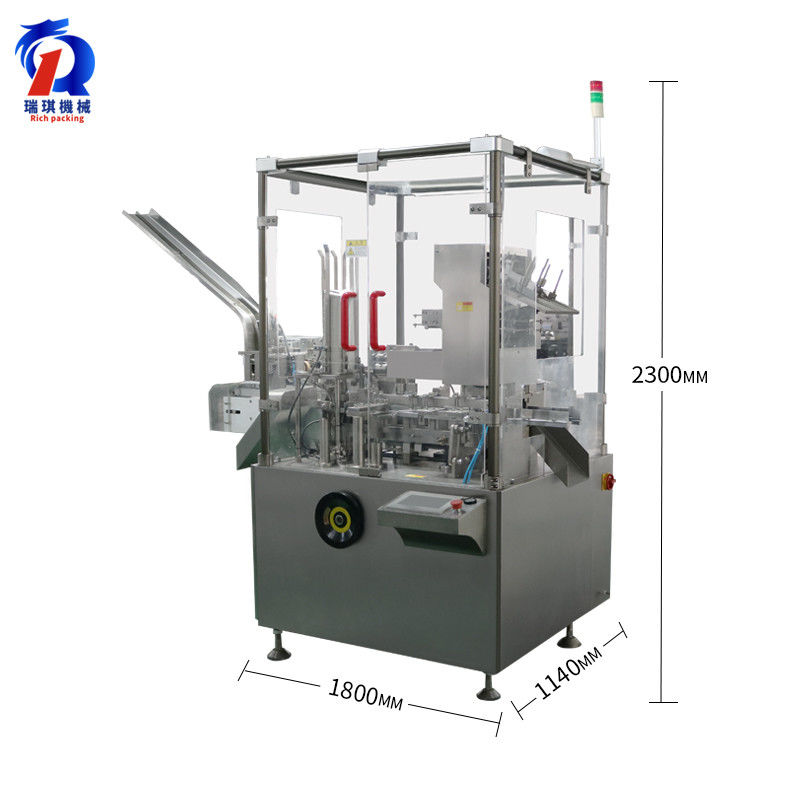

Fully Automatic Carton Box Cartoning Food Bottle Blister Pharmaceutical Machine
Introduction of cartoning machine:
Automatic vertical cartoning packing machine can packed various products such as aluminum plastic plate and aluminum aluminum plate, electronic cigarette,facial cleanser,ointment,Sealed pouch various bottled products.The automatic cartoning packing machine manufactured by Guangdong Rich Packing Machinery Co.,Ltd has strong compatibility and can pack products of various specifications on one machine.
his automatic vertical cartoning machine is the preferred products for small and medium sized production in pharmaceutical manufacturing,chemical industry, electronic products and food industry, it meets the requirements of GMP.
Features of cartoning box packing machine:
1. All the materials of cartonging machine are made of stainless steel or nickel-chromium plated material, with stable chemical performance, corrosion resistance, non-toxicity and harmlessness. The welding position of cartoning machine is
tempered and durable.
2. The cartoning box packing machine with high intelligence,accurate loading monitoring.Detection points are densely distributed in various workplaces, such as feeding, quantity detection , packaging into conveyer belt, number of
packages, carton in place and so on. The whole process of inspection and result detection is monitored through the process.
3. The automatic vertical cartoning packing machine produced by Guangdong Rich Packing Machinery Co.,Ltd has stable performance and is suitable for 24 hours operation.
4. The automatic cartoning box packing mchines equip spare part are engraved with codes,convenient customer to daily maintenance and repair.
5. This cartoning packing machine covers an area of about 3㎡ and is easy to handle and use.
| Model | RQ-ZHL-12OL |
| Speed | 35-125 carton/min |
| Total power | 1.10 KW |
| Power supply | 220/380V 50Hz |
| Requirements of carton | size range of carton:L(65-150)*W(35-85)*H(12-45)mm |
| carton weight:240-360g/㎡ | |
| Requirements of instructions | size range of instructions:L(78-250)*W(85-170)mm |
| range of folding times of instructions:1-4 fold | |
| instructions weight:60-70g/㎡ | |
| Pressure | pressure intensity:≥0.6MPa |
| air consumption:120-160 L/min | |
| Overall size of machine | 2150*1140*1800㎜ |
| Net weight of machine | about 1500kg |
High intelligence,accurate loading monitoring.Detection points are densely distributed in various workplaces, such as feeding, quantity detection , packaging into conveyor belt, number of packages, carton in place and so on. The whole process of inspection and result detection is monitored through the process.
All spare part are engraved with codes,convenient maintenance and repair.
