|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||20-30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Name:||PLC Auto Cartoning Packing Machine Manufacturer With GMP ISO CE||Speed:||35-125 Carton/min|
|Total Power:||1.10 KW||Size Range Of Carton:||L(65-150)*W(35-85)*H(12-45)mm|
|Range Of Folding Times Of Instructions:||1-4 Fold||Power Supply:||220/380V 50Hz|
|Carton Weight:||240-360g/㎡||Size Range Of Instructions:||L(78-250)*W(85-170)mm|
|Instructions Weight:||60-70g/㎡||Pressure Intensity:||≥0.6MPa|
|Air Consumption:||120-160 L/min||Overall Size Of Machine:||2150*1140*1800㎜|
|Net Weight Of Machine:||1500kg|
auto cartoner machine,
carton packing machine

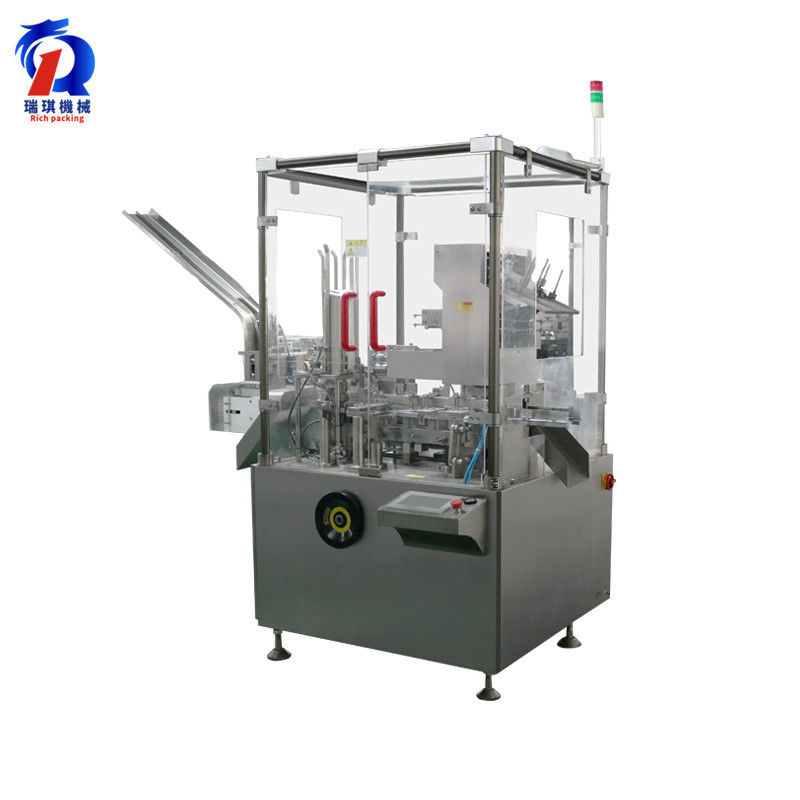

PLC Auto Cartoning Packing Machine Manufacturer with GMP ISO CE
Introduction of cartoning machine:
This automatic vertical cartoning machine is the preferred products for small and medium sized production in pharmaceutical manufacturing,chemical industry, electronic products and food industry, it meets the requirements of GMP.The automatic cartoning packing machine manufactured by Guangdong Rich Packing Machinery Co.,Ltd has strong compatibility and can pack products of various specifications on one machine.
Features of cartoning box packing machine:
4.Three detection of the carton box packing machinery were carried out in the packaging process of the products and instructions, and 100% of the unqualified products were rejected.
5.The cartoning box packing machine feeding part of machine adopts double servo motor,speed up to 120 carton/min,compared with single servo motor,it has fast speed and stable operation.
6.The cartoning box packing machine accessories adopt well-known brands, such as Siemens, Baker, Omron, etc
7.The automatic vertical cartoning packing machine produced by Guangdong Rich Packing Machinery Co.,Ltd has stable performance and is suitable for 24 hours operation.
|Total power||1.10 KW|
|Power supply||220/380V 50Hz|
|Requirements of carton||size range of carton:L(65-150)*W(35-85)*H(12-45)mm|
|Requirements of instructions||size range of instructions:L(78-250)*W(85-170)mm|
|range of folding times of instructions:1-4 fold|
|air consumption:120-160 L/min|
|Overall size of machine||2150*1140*1800㎜|
|Net weight of machine||about 1500kg|
High intelligence,accurate loading monitoring.Detection points are densely distributed in various workplaces, such as feeding, quantity detection , packaging into conveyor belt, number of packages, carton in place and so on. The whole process of inspection and result detection is monitored through the process.
