| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | RQ-ZHL-120 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $27000-32000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Automatic Cartoning Machine Carton Packing Machinery For Pharmacy And Food | Speed: | 35-125 Carton/min |
|---|---|---|---|
| Total Power: | 1.10 KW | Size Range Of Carton: | L(65-150)*W(35-85)*H(12-45)mm |
| Range Of Folding Times Of Instructions: | 1-4 Fold | Power Supply: | 220/380V 50Hz |
| Carton Weight: | 240-360g/㎡ | Size Range Of Instructions: | L(78-250)*W(85-170)mm |
| Instructions Weight: | 60-70g/㎡ | Pressure Intensity: | ≥0.6MPa |
| Air Consumption: | 120-160 L/min | Overall Size Of Machine: | 2150*1140*1800㎜ |
| Net Weight Of Machine: | 1500kg | ||
| High Light: | auto cartoner machine,carton packing machine |
||

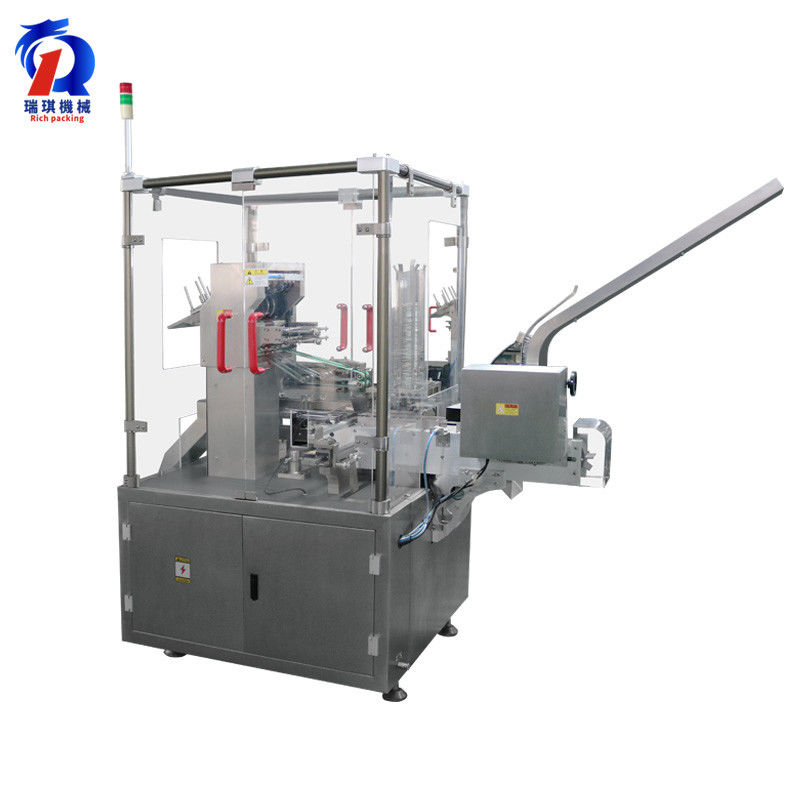

Automatic Cartoning Machine Carton Packing Machinery for Pharmacy and Food
Introduction of cartoning machine:
The automatic cartoning packing machine manufactured by Guangdong Rich Packing Machinery Co.,Ltd has strong compatibility and can pack products of various specifications on one machine.The cartoning box packaging machine has high degree of automation,from feeding,suction carton,forming,on line transmission,folding of leaflet(1-4 folds),material testing,products and leaflet pushing into carton,printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue),lack of material detection and rejection all automatically completed. The cartoning box packing machien is high technology product incorporates pneumatic - photo - electro - mechanic with improves work efficiency and reduces labor cost.
Features of cartoning box packing machine:
1.Dual clutch design, when the main motor overload or folding machine failure, start protection function to ensure the safety of carton machine equipment and personnel.
2.The cartoning box packing machine with high intelligence,accurate loading monitoring.Detection points are densely distributed in various workplaces, such as feeding, quantity detection , packaging into conveyer belt, number of packages, carton in place and so on. The whole process of inspection and result detection is monitored through the process.
3.The automatic cartoning box packing mchines equip spare part are engraved with codes,convenient customer to daily maintenance and repair.
4.Cartoning packing machine has high integration,this automatic vertical cartoning packing machine can be connected with tail sealing machine,aluminum plastic blister packing machine,strapping machine according to customers’ production requirements.
| Model | RQ-ZHL-12OL |
| Speed | 35-125 carton/min |
| Total power | 1.10 KW |
| Power supply | 220/380V 50Hz |
| Requirements of carton | size range of carton:L(65-150)*W(35-85)*H(12-45)mm |
| carton weight:240-360g/㎡ | |
| Requirements of instructions | size range of instructions:L(78-250)*W(85-170)mm |
| range of folding times of instructions:1-4 fold | |
| instructions weight:60-70g/㎡ | |
| Pressure | pressure intensity:≥0.6MPa |
| air consumption:120-160 L/min | |
| Overall size of machine | 2150*1140*1800㎜ |
| Net weight of machine | about 1500kg |
High intelligence,accurate loading monitoring.Detection points are densely distributed in various workplaces, such as feeding, quantity detection , packaging into conveyor belt, number of packages, carton in place and so on. The whole process of inspection and result detection is monitored through the process.
