| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | SGS CE ISO 9001 |
| Model Number: | RQ-ZH-120L |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiated price |
| Packaging Details: | the Automatic Vertical Cartoning Machine Standard export wooden case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, , T/T, Western Union |
| Supply Ability: | 50 pcs/month |
| Voltage: | 220V 50HZ | Automatic Grade: | Automatic |
|---|---|---|---|
| Condition: | New | Driven Type: | Electric |
| Type: | Packaging Line | Certification: | CE,ISO,SGS |
| Warranty: | 2 Year | Material: | Stainless Steel |
| High Light: | high speed packaging machines,automatic capsule filler |
||

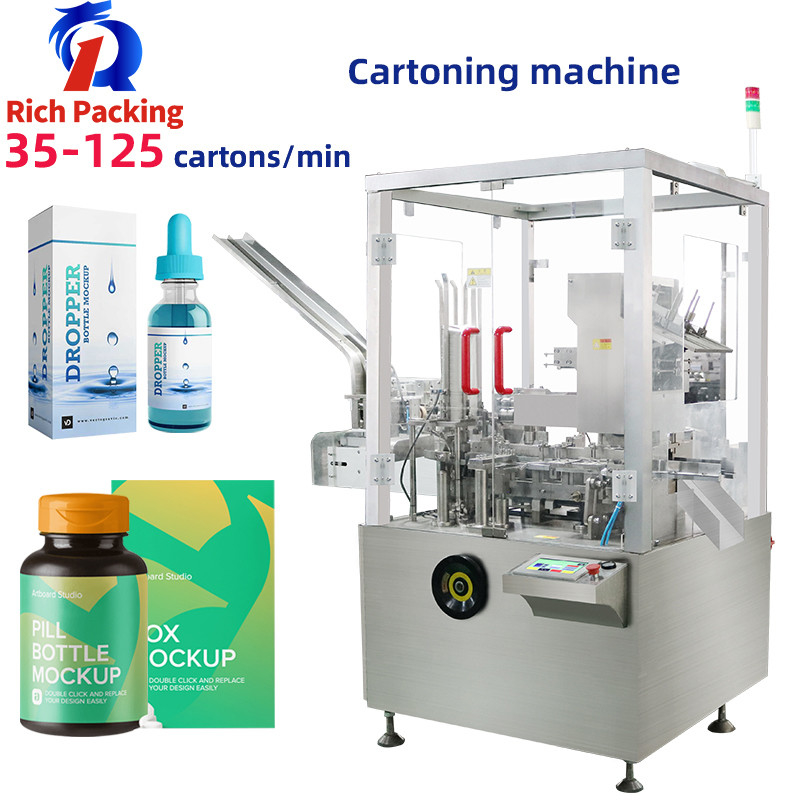

GMP Standard RQ-ZH-120L Automatic vertical cartoning packing machine can packed various products such as aluminum plastic plate and aluminum aluminum plate, electronic cigarette,facial cleanser,ointment,Sealed pouch various bottled products.120L vertical cartoning packing machine can be connected with the blister packing machine,three dimensional transparent film wrapping machine and strapping machine to form a production line.The automatic cartoning packing machine has strong compatibility and can pack products of various specifications on one machine.High degree of automation,from feeding,suction carton,forming,on line transmission,folding of leaflet(1-4 folds),material testing,products and leaflet pushing into carton,printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue),lack of material detection and rejection all automatically completed.
| After-sale Provide | Engineers available to service machinery overseas | ||
| Cartoning Machine Models | 120W | 260W | 450W |
| Power | 0.75 Kw | 5 Kw | 4.5 Kw |
| Capacity | 120 Cartons/Min | 260 Cartons/Min | 450 Cartons/Min |
| Dimension | 3100*1100*1550 mm | 6800*1600*1860 mm | 4800*1800*2000 mm |
| Weight | 1600 Kg | 3400 Kg | 5500 Kg |
| Item parts | Specification | Qty. | Manufacturer |
| Servo motor/driver | 400W MHMD042G1U/400W MBDHT2510E | 1/1 | Panasonic |
| Main motor | R17DT80N4 0.75KW/220V/380V | 1 | Germany SEW |
| Frequency converter | FC-051P1K5S2E20H | 1 | Danfoss |
| Relay | MY2NJ/24VDC | 5 | Japan Omron |
| Touch screen | GC—4408W | 1 | Proface |
| PLC | Smart ST40 | 1 | Germany Siemens |
Product details:
Production workshop:
Our client:
* Cartoning machine Instructions separation device,Lift the head to separate the pull-down action, making it easier to separate the paper
