| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | RQ-ZHL-120W |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| After-sales Service: | Engineers Available To Service Machinery Overseas | Product Name: | Horizontal Automatic Cartoning Machine |
|---|---|---|---|
| Production Capacity: | 30-125 Carton/min | Carton Size: | L(70-185)*W(35-90)*H(14-50)mm |
| Carton Weight: | 250-350g/㎡ | Carton Product: | Ointment, Soft Bag, Bottle, Mask |
| Packing For: | Sachet,Condom,Adhesive Bandage | ||
| High Light: | high speed blister packing machine,high speed packaging machines |
||
1.Blister plate cartoning machine
2.Tea bag cartoning machine
3.Automatic Bottle Cartoning Machine
4.Mask cartoning machine
5.Electronic cigarette cartoning machine

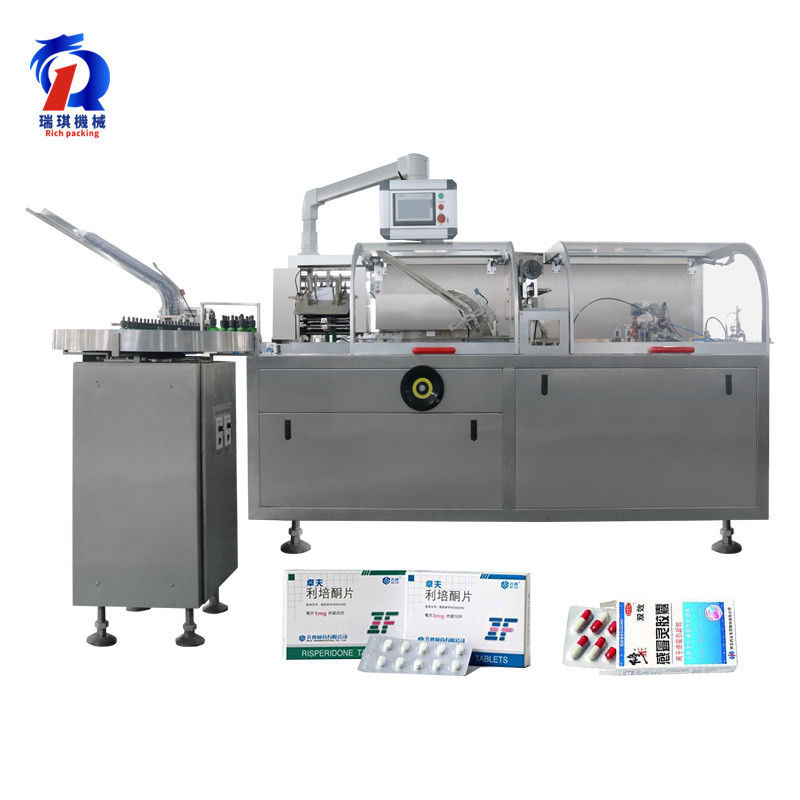

GMP Standard RQ-ZH-120W automatic horizontal cartoning packing machine is especially suitable for bag and bottle products with large specifications,This Automatic Horizontal Cartoning Packing Machine is a multi-functional product integrating light and electricity developed. It can automatically and quickly pack aluminum plastic board, electronic cigarette, facial cleanser, ointment, soft bag, bottle, powder, granule bag, condom, soft double-layer aluminum, gypsum, coffee, mask and etc.It high integration,This automatic horizontal cartoning packing machine can be connected with tail sealing machine,aluminum plastic blister packing machine,strapping machine according to customers’ production requirements.
| After-sale Provide | Engineers Available To Service Machinery Overseas | ||
| Cartoning Machine Models | 120W | 260W | 450W |
| Power | 0.75 Kw | 5 Kw | 4.5 Kw |
| Capacity | 120 Carton/Min | 260 Carton/Min | 450 Carton/Min |
| Dimension | 3100*1100*1550 mm | 6800*1600*1860 mm | 4800*1800*2000 mm |
| Weight | 1600 Kg | 3400 Kg | 5500 Kg |
| Spare Parts Name | Specification | Qty. | Manufacturer |
| Servo Motor | 400W MHMD042G1U | 1 | Panasonic |
| Servo Driver | 400W MBDHT2510E | 1 | Panasonic |
| Main Motor | R17DT80N4 1.1KW/220V/380V | 1 | Germany SEW |
| Vacuum Pump | VT4.40 | 1 | BECKER |
| Frequency Converter | FC-051P1K5S2E20H | 1 | Danfoss |
| Air Circuit Breaker | DZ47-D63/2P | 1 | Yaohua |
| PLC | Smart ST40 | 1 | Siemens |
| Emergency Stop Button | ZB2-BE102C | 1 | France Schneider |
| * Double clutch design Horizontal cartoning machine is equipped with protective device. When the cartoning machine breaks down, the protective function will be activated immediately. It will not waste materials and ensure the safety of operators. | |
|
* 120W Cartoning machine the accuracy of loading is 99.8%.Inspection points are densely distributed in various workstation, such as feeding device, quantity inspection , packaging into conveyer belt inspection, number of packages inspection, carton in place inspection and etc. |
| * All spare parts of 120W horizontal cartoning packing machine are engraved with codes to facilitate the daily maintenance of customers. | |
|
* Adjusting scale, Cartoning box packing machine only 3-5 parts need to be replaced to pack products of different sizes. |
