| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | RQ-ZH-26OW |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $85000-110000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Health Care Products Batch Number Printing Cartoning Machine | Speed: | 260 Carton/min |
|---|---|---|---|
| Total Power: | 5.0 KW | Size Range Of Carton: | L(70-180)*W(35-80)*H(14-50)mm |
| Range Of Folding Times Of Instructions: | 1-4 Fold | Power Supply: | 220/380V 50Hz |
| Size Range Of Instructions: | L(80-250)*W(90-170)mm | Instructions Weight: | 60-70g/㎡ |
| Net Weight Of Machine: | 3400kg | Pressure Intensity: | ≥0.6MPa |
| Air Consumption: | 120-200 L/min | Overall Size Of Machine: | 6800*1600*1860㎜ |
| Carton Weight: | 250-350g/㎡ | ||
| High Light: | high speed blister packing machine,automatic capsule filler |
||

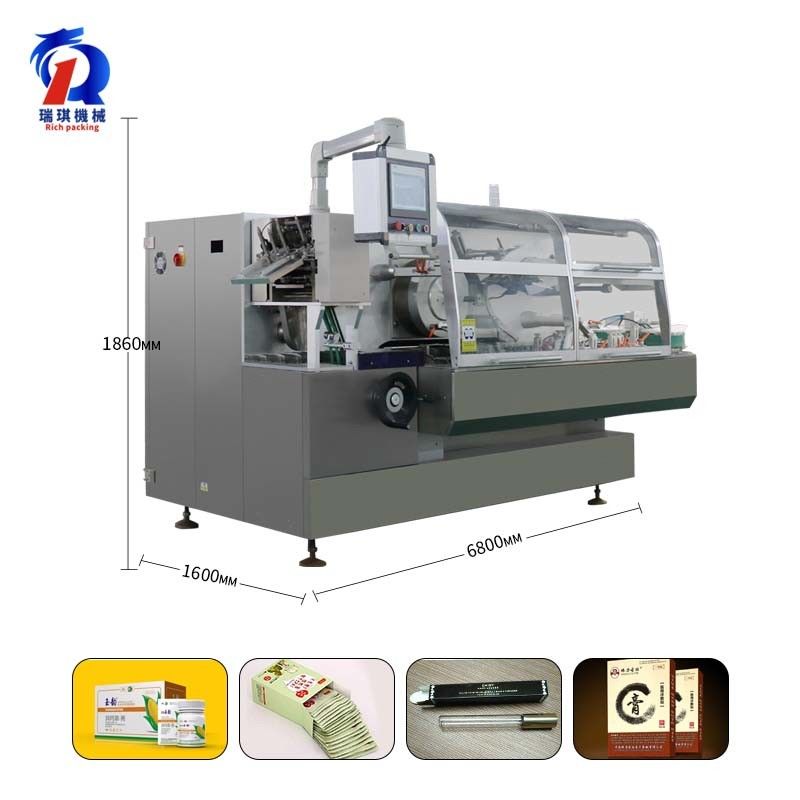

Health Care Products Batch Number Printing Cartoning Machine
Introduction of cartoning machine:
RQ-ZH-260W Automatic horizontal cartoning packing machine is a new generation of rapid cartoning machine developed by Guangdong Rich Packing Machinery Co.,Ltd, which combines the advanced technology of foreign countries and the scientific research achievements of our company. The automatic cartoning machine meets the requirements of GMP . The technology of pushing material and carton forming is consistent with the design concept of European and American countries.This cartoning box packing machine is suitable for large scale of pharmaceuticals, chemical industry, food, health products, medical devices, etc.
Features of cartoning box packing machine:
1.The cartoning machine body is made of stainless steel or nickel-chromium plated material, and the welding position is tempered. The chemical performance is stable. This cartoning box packaging machinery has the advantages of corrosion resistance, non-toxicity, harmlessness and durability.
2.The cartoning packaging machinery has high intelligence.Detection points are distributed in various workstation, such feeding , loading capacity detection , packaging into conveyor belt detection, quantity of packages inspection, carton in place inspection and etc.If there are no instruction or products in the carton, they will be rejected after detection.
3.The cartoning packing machine adopts a rotating quadrilateral double planetary wheel structure to open the carton, and have two pre-forming devices to ensure the forming effect of the carton and improve the working efficiency.
4.The main motor and paper folding of cartoning box machine are equipped with overload protection device to ensure the safety of the machine and personnel in case of failure.
5.The pushing structure of the cartoning machine produced by Guangdong Rich Packing Machinery Co.,Ltd adopts the way of back pushing, which leaves a lot of space for the operation platform and makes the operation and maintenance of the machine more convenient.
| Model | RQ-ZH-26OW |
| Speed | 260 carton/min |
| Total power | 5.0 KW |
| Power supply | 220/380V 50Hz |
| Requirements of carton | size range of carton:L(70-180)*W(35-80)*H(14-50)mm |
| carton weight:250-350g/㎡ | |
| Requirements of instructions | size range of instructions:L(80-250)*W(90-170)mm |
| range of folding times of instructions:1-4 fold | |
| instructions weight:60-70g/㎡ | |
| Pressure | pressure intensity:≥0.6MPa |
| air consumption:120-200 L/min | |
| Overall size of machine | 6800*1600*1860㎜ |
| Net weight of machine | 3400kg |
.Low platform, large graphic design,easy to operate and clean.
The cartoning machine adopts a rotating quadrilateral double planetary wheel structure to open the carton, and have two pre-forming devices to ensure the forming effect of the carton and improve the working efficiency.
