| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS |
| Model Number: | RQ-ZH-120W |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, , T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Speed: | 125 Carton/min | Total Power: | 0.750 KW |
|---|---|---|---|
| Power Supply: | 380V 50Hz | Requirements Of Carton: | Carton Weight:250-350g/㎡ |
| Overall Size Of Machine: | 4300*1100*1550㎜ | ||
| High Light: | high speed packaging machines,automatic capsule filler |
||

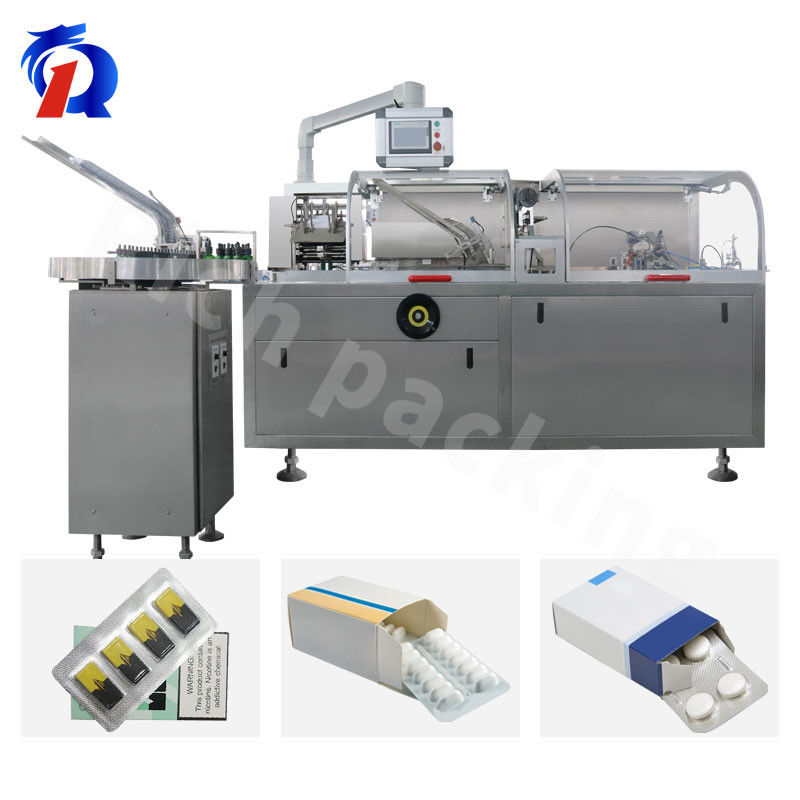

Automatic Capsule Tablet Blister Cartoning Machine
RQ-ZH-120W Automatic Horizontal Cartoning Packing Machine is a multi-functional product integrating light and electricity developed by Guangdong Rich Packing Machinery Co.,Ltd in recent years. It can automatically and quickly pack aluminum plastic board, electronic cigarette, facial cleanser, ointment, soft bag, bottle, powder, granule bag, condom, soft double-layer aluminum, gypsum, coffee, mask and etc.It high integration,this automatic horizontal cartoning packing machine can be connected with tail sealing machine,aluminum plastic blister packing machine,strapping machine according to customers’ production requirements.
| After-sale Provide | Engineers Available To Service Machinery Overseas | ||
| Cartoning Machine Models | 120W | 260W | 450W |
| Power | 0.75 Kw | 5 Kw | 4.5 Kw |
| Capacity | 120 Carton/Min | 260 Carton/Min | 450 Carton/Min |
| Dimension | 3100*1100*1550 mm | 6800*1600*1860 mm | 4800*1800*2000 mm |
| Weight | 1600 Kg | 3400 Kg | 5500 Kg |
| Spare Parts Name | Specification | Qty. | Manufacturer |
| Servo Motor | 400W MHMD042G1U | 1 | Panasonic |
| Servo Driver | 400W MBDHT2510E | 1 | Panasonic |
| Main Motor | R17DT80N4 1.1KW/220V/380V | 1 | Germany SEW |
| Vacuum Pump | VT4.40 | 1 | BECKER |
| Frequency Converter | FC-051P1K5S2E20H | 1 | Danfoss |
| Air Circuit Breaker | DZ47-D63/2P | 1 | Yaohua |
| PLC | Smart ST40 | 1 | Siemens |
| Emergency Stop Button | ZB2-BE102C | 1 | France Schneider |
1.Double clutch design
When the main motor overload or folding machine failure, start protection function to ensure the safety of equipment and personnel.
2.Multiple detection points
Detection points are densely distributed in various workplaces, such as feeding, quantity detection , packaging into conveyer belt, number of packages, carton in place and so on.
3.Back-push feeding
Convenient for front-end operation
