|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||20-30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Name:||Health Care Products Batch Number Printing Cartoning Machine||Speed:||260 Carton/min|
|Total Power:||5.0 KW||Size Range Of Carton:||L(70-180)*W(35-80)*H(14-50)mm|
|Range Of Folding Times Of Instructions:||1-4 Fold||Power Supply:||220/380V 50Hz|
|Size Range Of Instructions:||L(80-250)*W(90-170)mm||Instructions Weight:||60-70g/㎡|
|Net Weight Of Machine:||3400kg||Pressure Intensity:||≥0.6MPa|
|Air Consumption:||120-200 L/min||Overall Size Of Machine:||6800*1600*1860㎜|
high speed blister packing machine,
high speed packaging machines

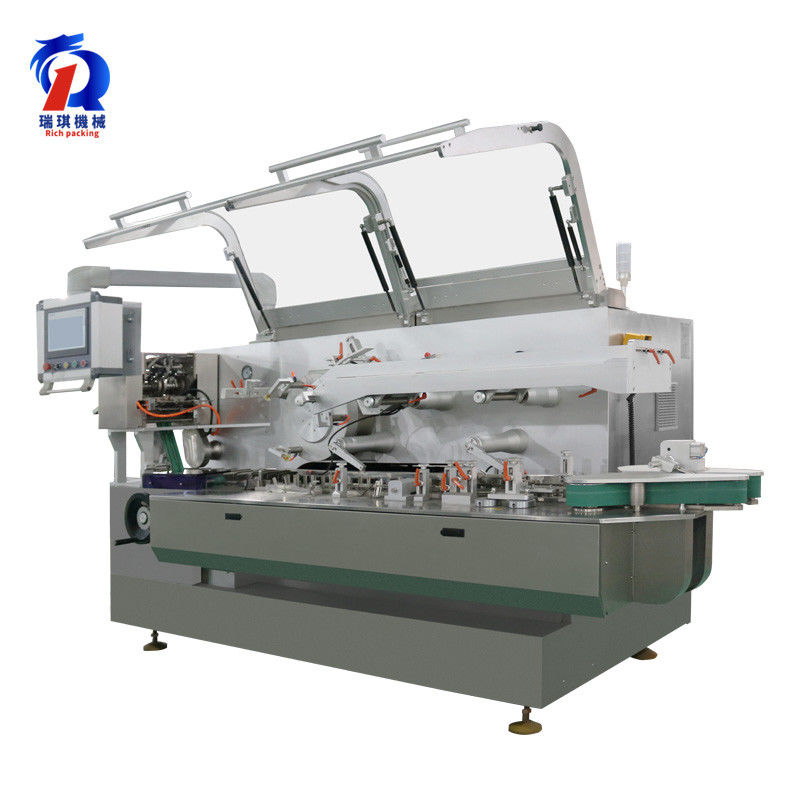

Health Care Products Batch Number Printing Cartoning Machine
Introduction of cartoning machine:
This 260 horizontal cartoning machine produced by Guangdong Rich Packing Machinery Co.,Ltd have a wide range of packaging materials, and only a few parts need to be adjusted to replace the packaging products. Intelligent degree, from the feeding, suction carton, forming, conveyor belt, instructions and material in, with top fold flaps, carton rejection all automatically completed.
Features of cartoning box packing machine:
1. The cartoning packaging machinery has high intelligence.Detection points are distributed in various workstation, such feeding , loading capacity detection , packaging into conveyor belt detection, quantity of packages inspection, carton in place inspection and etc.If there are no instruction or products in the carton, they will be rejected after detection.
2. The cartoning packing machine adopts a rotating quadrilateral double planetary wheel structure to open the carton, and have two pre-forming devices to ensure the forming effect of the carton and improve the working efficiency.
3. The main motor, sensor, frequency converter and pneumatic components of the cartoning machine all adopt international famous brand products with stable performance and guaranteed quality
4. The 260 horizontal cartoning packing machine manufactured by Guangdong Rich Packing Machinery Co.,Ltd is highly operable and suitable for 24-hour uninterrupted production.
5. This series of cartoning machine are equipped with compressed air and vacuum negative pressure abnormal shutdown protection function.
|Total power||5.0 KW|
|Power supply||220/380V 50Hz|
|Requirements of carton||size range of carton:L(70-180)*W(35-80)*H(14-50)mm|
|Requirements of instructions||size range of instructions:L(80-250)*W(90-170)mm|
|range of folding times of instructions:1-4 fold|
|air consumption:120-200 L/min|
|Overall size of machine||6800*1600*1860㎜|
|Net weight of machine||3400kg|
The main motor, sensor, frequency converter and pneumatic components of the cartoning machine all adopt international famous brand products with stable performance and guaranteed quality.
