|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||20-30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Name:||High Quality Box Packing Machine Factory Price Automatic Cartoning Machine||Speed:||260 Carton/min|
|Total Power:||5.0 KW||Size Range Of Carton:||L(70-180)*W(35-80)*H(14-50)mm|
|Range Of Folding Times Of Instructions:||1-4 Fold||Power Supply:||220/380V 50Hz|
|Size Range Of Instructions:||L(80-250)*W(90-170)mm||Instructions Weight:||60-70g/㎡|
|Net Weight Of Machine:||3400kg||Pressure Intensity:||≥0.6MPa|
|Air Consumption:||120-200 L/min||Overall Size Of Machine:||6800*1600*1860㎜|
high speed blister packing machine,
automatic capsule filler

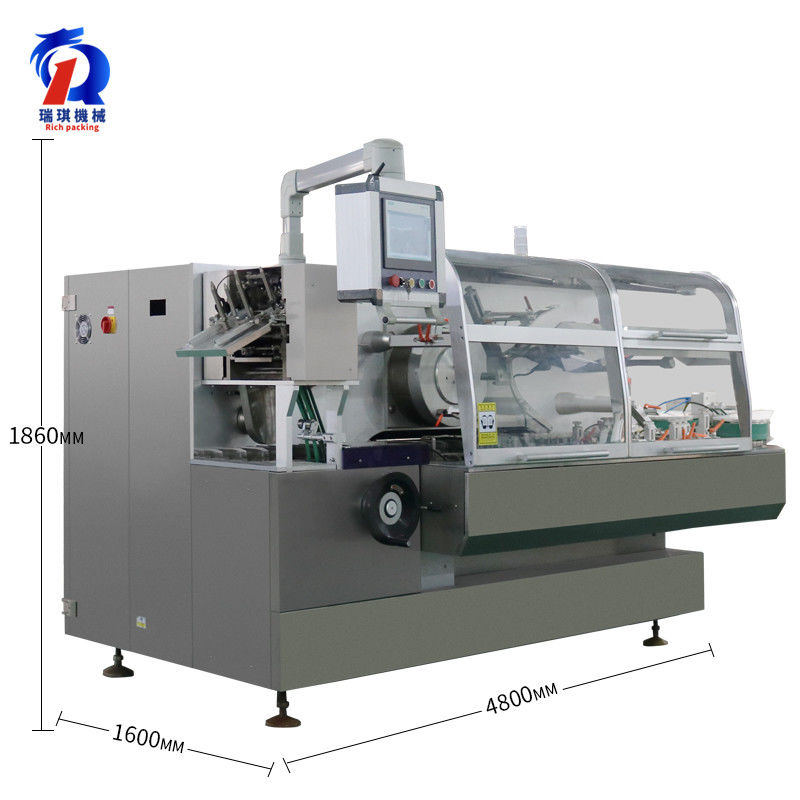

High Quality Box Packing Machine Factory Price Automatic Cartoning Machine
Introduction of cartoning machine:
This blister packing cartoning machine can quickly pack all kinds of products, such as drugs, tablets, capsules, aluminum plastic panels, granular bags, ointments, soft bags, bottled drugs, facial cleanser, electronic cigarette and mask ans etc. The cartoning box packaging machinery can also be connected with pillow packing machine, wrapping machine, blister packing machine and so on, so as to improve the production level of workshop automation.
Features of cartoning box packing machine:
1.The cartoning machine body is made of stainless steel or nickel-chromium plated material, and the welding position is tempered. The chemical performance is stable. This cartoning box packaging machinery has the advantages of corrosion resistance, non-toxicity, harmlessness and durability.
2.The cartoning packaging machinery has high intelligence.Detection points are distributed in various workstation, such feeding , loading capacity detection , packaging into conveyor belt detection, quantity of packages inspection, carton in place inspection and etc.If there are no instruction or products in the carton, they will be rejected after detection.
3.The pushing structure of the cartoning machine produced by Guangdong Rich Packing Machinery Co.,Ltd adopts the way of back pushing, which leaves a lot of space for the operation platform and makes the operation and maintenance of the machine more convenient.
4.RQ-ZH-260W cartoning machine adopts the latest full servo vibration blanking technology, which has faster blanking speed and higher accuracy, up to 260 cartons per minute at the fastest
5.This series of cartoning machine are equipped with compressed air and vacuum negative pressure abnormal shutdown protection function.
6.The cartoning pack machinery has high integration and can be connected with tail sealing machine, aluminum plastic blister packaging machine and wrapping machine according to production requirements.
|Total power||5.0 KW|
|Power supply||220/380V 50Hz|
|Requirements of carton||size range of carton:L(70-180)*W(35-80)*H(14-50)mm|
|Requirements of instructions||size range of instructions:L(80-250)*W(90-170)mm|
|range of folding times of instructions:1-4 fold|
|air consumption:120-200 L/min|
|Overall size of machine||6800*1600*1860㎜|
|Net weight of machine||3400kg|
All spare parts are coded to facilitate the daily maintenance of customers.
