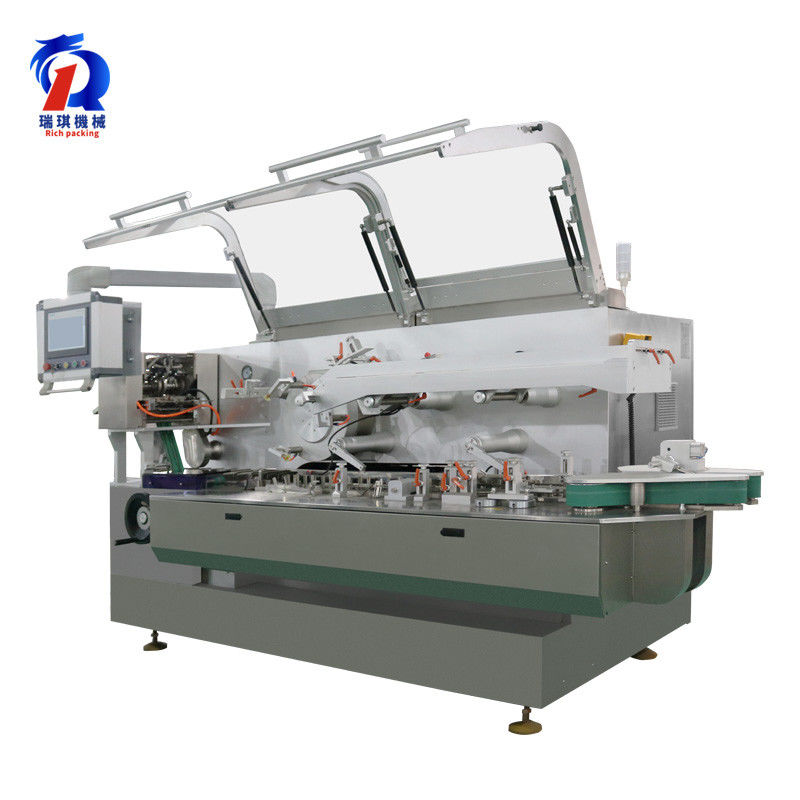

Automatic Horizontal Cartoning Machine , 5kw Carton Box Packaging Machine

Automatic Horizontal Cartoning Machine , 5kw Carton Box Packaging Machine

  • Automatic Horizontal Cartoning Machine , 5kw Carton Box Packaging Machine
Automatic Horizontal Cartoning Machine , 5kw Carton Box Packaging Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: RQ-ZH-26OW
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $85000-110000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Automatic Horizontal Cartoning Machine For Cosmetics Bottle Pouch Injection Blister Speed: 260 Carton/min
Total Power: 5.0 KW Size Range Of Carton: L(70-180)*W(35-80)*H(14-50)mm
Range Of Folding Times Of Instructions: 1-4 Fold Power Supply: 220/380V 50Hz
Size Range Of Instructions: L(80-250)*W(90-170)mm Instructions Weight: 60-70g/㎡
Net Weight Of Machine: 3400kg Pressure Intensity: ≥0.6MPa
Air Consumption: 120-200 L/min Overall Size Of Machine: 6800*1600*1860㎜
Carton Weight: 250-350g/㎡
High Light:

high speed blister packing machine

,

high speed packaging machines

Automatic Horizontal Cartoning Machine for Cosmetics Bottle Pouch Injection Blister

Introduction of cartoning machine:

RQ-ZH-260W Automatic horizontal cartoning packing machine is a new generation of rapid cartoning machine developed by Guangdong Rich Packing Machinery Co.,Ltd, which combines the advanced technology of foreign countries and the scientific research achievements of our company. The automatic cartoning machine meets the requirements of GMP .Intelligent degree, from the feeding, suction carton, forming, conveyor belt, instructions and material in, with top fold flaps, carton rejection all automatically completed.



Features of cartoning box packing machine:

1. The cartoning machine body is made of stainless steel or nickel-chromium plated material, and the welding position is tempered. The chemical performance is stable. This cartoning box packaging machinery has the advantages of corrosion resistance, non-toxicity, harmlessness and durability.

2. The cartoning packing machine adopts a rotating quadrilateral double planetary wheel structure to open the carton, and have two pre-forming devices to ensure the forming effect of the carton and improve the working efficiency.

3. The pushing structure of the cartoning machine produced by Guangdong Rich Packing Machinery Co.,Ltd adopts the way of back pushing, which leaves a lot of space for the operation platform and makes the operation and maintenance of the machine more convenient.

4. The main motor, sensor, frequency converter and pneumatic components of the cartoning machine all adopt international famous brand products with stable performance and guaranteed quality.

5. All spare parts of our cartoning packing machine are coded to facilitate the daily maintenance of customers.

Model RQ-ZH-26OW
Speed 260 carton/min
Total power 5.0 KW
Power supply 220/380V 50Hz
Requirements of carton size range of carton:L(70-180)*W(35-80)*H(14-50)mm
  carton weight:250-350g/㎡
Requirements of instructions size range of instructions:L(80-250)*W(90-170)mm
  range of folding times of instructions:1-4 fold
  instructions weight:60-70g/㎡
Pressure pressure intensity:≥0.6MPa
  air consumption:120-200 L/min
Overall size of machine 6800*1600*1860㎜
Net weight of machine 3400kg



Automatic Horizontal Cartoning Machine , 5kw Carton Box Packaging Machine 0

Automatic Horizontal Cartoning Machine , 5kw Carton Box Packaging Machine 1Automatic Horizontal Cartoning Machine , 5kw Carton Box Packaging Machine 2

The pushing structure adopts the way of back pushing, which leaves a lot of space for the operation platform and makes the operation and maintenance of the machine more convenient.

5.All spare parts are coded to facilitate the daily maintenance of customers.
