| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | RQ-ZH-26OW |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $85000-110000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | High Speed Automatic Cartoning Machine For Pharmaceutical Food Medicine Cosmetic | Speed: | 260 Carton/min |
|---|---|---|---|
| Total Power: | 5.0 KW | Size Range Of Carton: | L(70-180)*W(35-80)*H(14-50)mm |
| Range Of Folding Times Of Instructions: | 1-4 Fold | Power Supply: | 220/380V 50Hz |
| Size Range Of Instructions: | L(80-250)*W(90-170)mm | Instructions Weight: | 60-70g/㎡ |
| Net Weight Of Machine: | 3400kg | Pressure Intensity: | ≥0.6MPa |
| Air Consumption: | 120-200 L/min | Overall Size Of Machine: | 6800*1600*1860㎜ |
| Carton Weight: | 250-350g/㎡ | ||
| High Light: | high speed blister packing machine,automatic capsule filler |
||

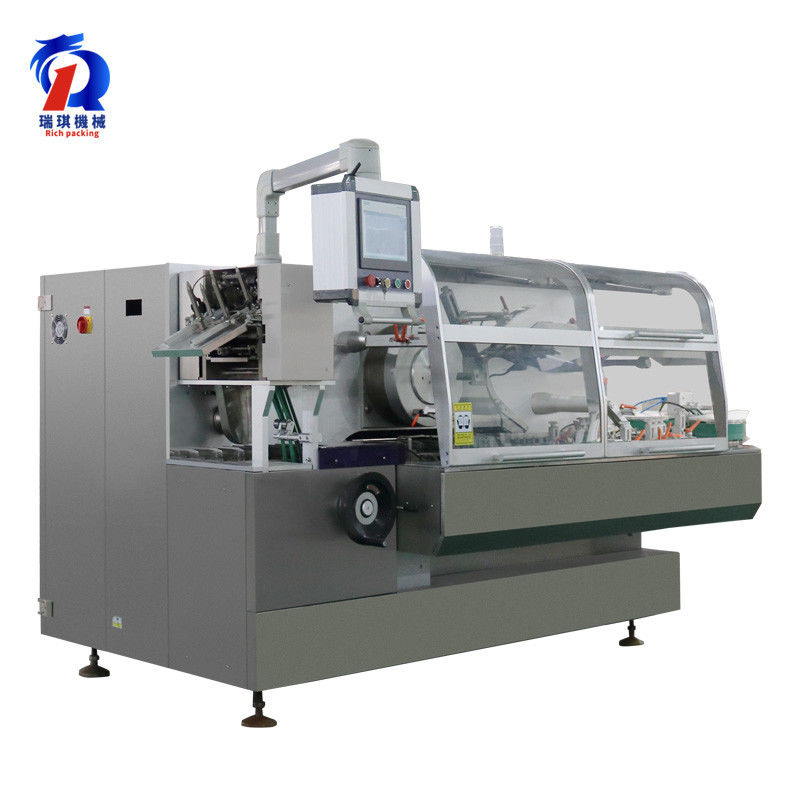

High Speed Automatic Cartoning Machine for Pharmaceutical Food Medicine Cosmetic
Introduction of cartoning machine:
This 260 horizontal cartoning machine produced by Guangdong Rich Packing Machinery Co.,Ltd have a wide range of packaging materials, and only a few parts need to be adjusted to replace the packaging products. Intelligent degree, from the feeding, suction carton, forming, conveyor belt, instructions and material in, with top fold flaps, carton rejection all automatically completed.
Features of cartoning box packing machine:
1.The cartoning packing machine adopts a rotating quadrilateral double planetary wheel structure to open the carton, and have two pre-forming devices to ensure the forming effect of the carton and improve the working efficiency.
2.The main motor and paper folding of cartoning box machine are equipped with overload protection device to ensure the safety of the machine and personnel in case of failure.
3.The pushing structure of the cartoning machine produced by Guangdong Rich Packing Machinery Co.,Ltd adopts the way of back pushing, which leaves a lot of space for the operation platform and makes the operation and maintenance of the machine more convenient.
4.RQ-ZH-260W cartoning machine adopts the latest full servo vibration blanking technology, which has faster blanking speed and higher accuracy, up to 260 cartons per minute at the fastest.
5.The main motor, sensor, frequency converter and pneumatic components of the cartoning machine all adopt international famous brand products with stable performance and guaranteed quality.
6.The trouble of the cartoning machine can be displayed on the touch screen for easy maintenance.
| Model | RQ-ZH-26OW |
| Speed | 260 carton/min |
| Total power | 5.0 KW |
| Power supply | 220/380V 50Hz |
| Requirements of carton | size range of carton:L(70-180)*W(35-80)*H(14-50)mm |
| carton weight:250-350g/㎡ | |
| Requirements of instructions | size range of instructions:L(80-250)*W(90-170)mm |
| range of folding times of instructions:1-4 fold | |
| instructions weight:60-70g/㎡ | |
| Pressure | pressure intensity:≥0.6MPa |
| air consumption:120-200 L/min | |
| Overall size of machine | 6800*1600*1860㎜ |
| Net weight of machine | 3400kg |
Detection points are distributed in various workstation, such feeding , loading capacity detection , packaging into conveyor belt detection, quantity of packages inspection, carton in place inspection and etc.If there are no instruction or products in the carton, they will be rejected after detection.
Contact Person: Owen zhang
Tel: 15920493206
