|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||14-21 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||13 pcs/month|
|Name:||Medical Cartoning Machine For Sterile Injection Bottle||Speed:||260 Carton/min|
|Total Power:||5.0 KW||Size Range Of Carton:||L(70-180)*W(35-80)*H(14-50)mm|
|Power Supply:||220/380V 50Hz||Size Range Of Instructions:||L(80-250)*W(90-170)mm|
|Net Weight Of Machine:||3400kg||Air Consumption:||120-200 L/min|
|Overall Size Of Machine:||6800*1600*1860㎜||Carton Weight:||250-350g/㎡|
high speed blister packing machine,
automatic capsule filler

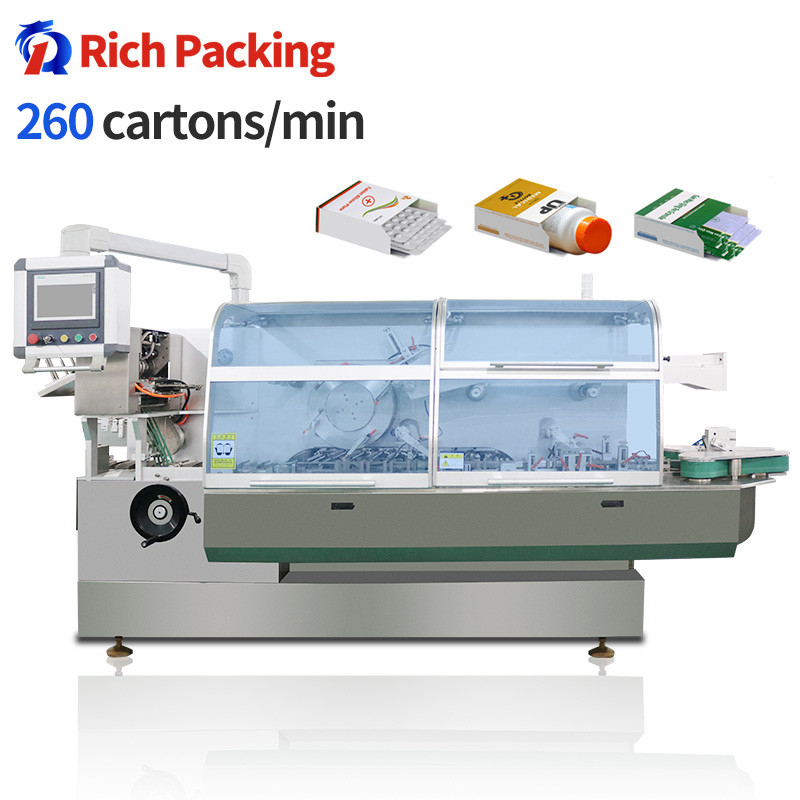

Medical High Speed Cartoning Machine For Blister Plate Sachet Bottle Tube
Introduction of cartoning machine:
This blister packing cartoning machine can quickly pack all kinds of products, such as drugs, tablets, capsules, aluminum plastic panels, granular bags, ointments, soft bags, bottled drugs, facial cleanser, electronic cigarette and mask ans etc. The cartoning box packaging machinery can also be connected with pillow packing machine, wrapping machine, blister packing machine and so on, so as to improve the production level of workshop automation.
Features of cartoning box packing machine:
1.RQ-ZH-260W cartoning machine adopts the latest full servo vibration blanking technology, which has faster blanking speed and higher accuracy, up to 260 cartons per minute at the fastest.
2.The main motor, sensor, frequency converter and pneumatic components of the cartoning machine all adopt international famous brand products with stable performance and guaranteed quality.
3.The trouble of the cartoning machine can be displayed on the touch screen for easy maintenance.
4.All spare parts of our cartoning packing machine are coded to facilitate the daily maintenance of customers.
5.The 260 horizontal cartoning packing machine manufactured by Guangdong Rich Packing Machinery Co.,Ltd is highly operable and suitable for 24-hour uninterrupted production.
|Total power||5.0 KW|
|Power supply||220/380V 50Hz|
|Requirements of carton||size range of carton:L(70-180)*W(35-80)*H(14-50)mm|
|Requirements of instructions||size range of instructions:L(80-250)*W(90-170)mm|
|range of folding times of instructions:1-4 fold|
|air consumption:120-200 L/min|
|Overall size of machine||6800*1600*1860㎜|
|Net weight of machine||3400kg|
The machine adopts a rotating quadrilateral double planetary wheel structure to open the carton, and have two pre-forming devices to ensure the forming effect of the carton and improve the working efficiency.
