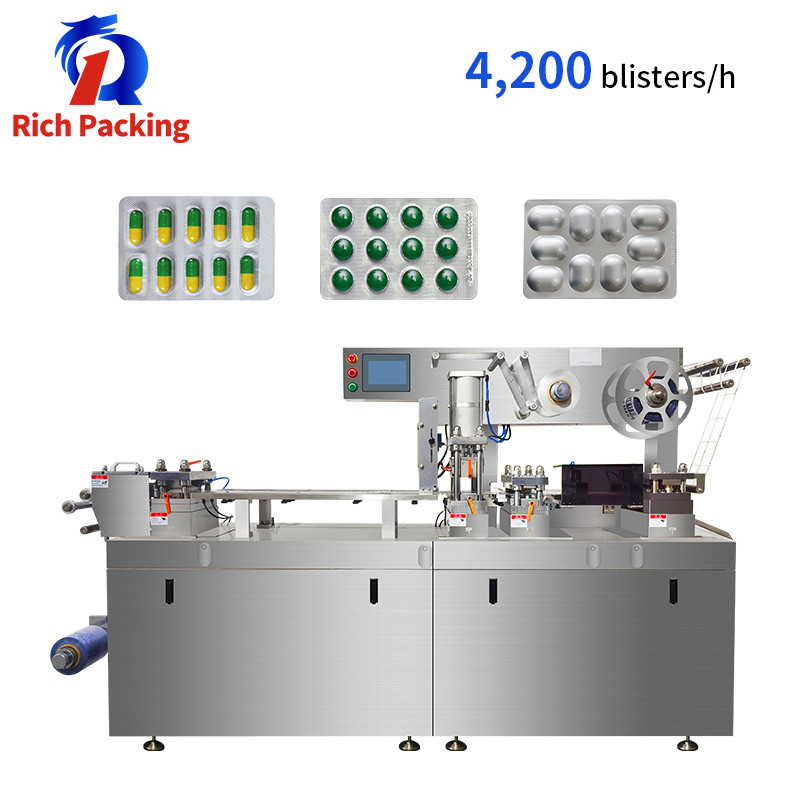

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule

  • Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule
  • Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule
  • Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule
  • Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule
Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE/ISO 9001/SGS
Model Number: DPP-160Pro
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.
Delivery Time: in 14 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Production Capacity: 4,200 Plates/hour Number Of Blanking: 20~180 Boards/min
Maximum Forming Area: 160×250*15mm Maximum Depth: 26mm (can Customized)
Standard Travel Range: 40-160mm Standard Plate: 80*57mm
High Light:

Tablet Blister Packing Machine

,

High Speed Blister Packing Machine

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule

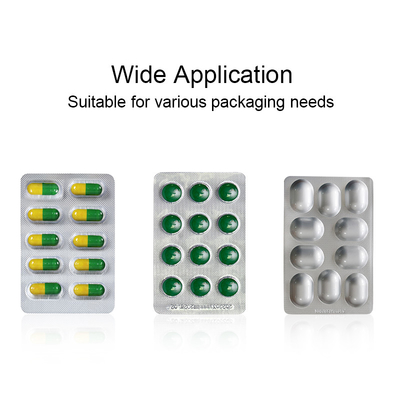

DPP-160pro blister pack machinery has widely application, can package tablets, capsules, solid material, jam liquid sauce or others into blister plate or board auto. It adopts the module design way, mold replacing only need 15 minutes, easily for maintenance and for cleaning.

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule 0

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule 1

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule 2

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule 3

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule 4

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule 5

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule 6

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule 7

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule 8


Parameter:

Output capacity 4,200 plates/hour
Max. Shaping Dia. And Depth 250*160*15mm Max. Depth 26mm(custom-made)
Standard Plate 80*57mm
Total Power 5.5kw
Power 380/220V/50/60Hz (customizable)
Net weight of machine 1600 kg
Outline dim.(mm) 3500×740×1680 mm



DPP 160PRO capsule blister packing machine adopts two-stage control, active constant temperature, good temperature average; Full digital touch screen, man-machine interface friendly; Pneumatic cylinder control, easy to operate, convenient; Common air bag equipment and active exhaust equipment, to ensure that the packaging process will not produce air leakage scene;



Adopt cylinder control, fast packaging speed: can pack about 4200 per hour; Easy to operate: no special instructions, even skilled workers can quickly start to operate; Common mold change structure, to ensure that the mold change and loading and unloading quickly completed;



PLC full digital control (standard touch screen control), easy to operate and safe. Stable function: no noise during mechanical operation, good stability and high effectiveness. The first technical parameters are shown in the table below. Equipment operation: Mission temperature -5℃~+40℃. Do not exceed 85% of the additional voltage. Condition humidity 10%~80%, no corrupting gas and air. (such as compressed air), no strong electromagnetic interference, etc.



Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule 9
