Flat Plate Blister Packing Machine Fully Automatic High Speed 236000 Pcs/Hour

Flat Plate Blister Packing Machine Fully Automatic High Speed 236000 Pcs/Hour

  • Flat Plate Blister Packing Machine Fully Automatic High Speed 236000 Pcs/Hour
  • Flat Plate Blister Packing Machine Fully Automatic High Speed 236000 Pcs/Hour
  • Flat Plate Blister Packing Machine Fully Automatic High Speed 236000 Pcs/Hour
Flat Plate Blister Packing Machine Fully Automatic High Speed 236000 Pcs/Hour
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE/ISO 9001/SGS
Model Number: DPP-260R
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiated price
Packaging Details: Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.
Delivery Time: 5-8 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 50 pcs/month
Contact Now
Detailed Product Description
Production Capacity: 236,000 Grains/hour Number Of Blanking: 20~180 Boards/min
Maximum Forming Area: 160×250*15mm Maximum Depth: 26mm (can Customized)
Standard Travel Range: 40-160mm Standard Plate: 80*57mm
PVC Thickness/width: 260×0.15-0.45mm PTP Aluminum Foil Thickness/width: 260×0.02-0.03mm
High Light:

236000 Pcs/Hour Blister Packing Machine

,

26mm Depth Blister Packing Machine

  Flat Plate Blister Packing Machine Fully Automatic High Speed 236000 Pcs/Hour



Thickness and Width of PTP 260×0.02~0.03mm
Dialyzing Paper 50~100g*260mm
Vacuum of blister packing machine 260R 0.4MPa-0.6MPa
gas consumption 0.2m3/min
Noise of blister packing machine 260R <75dBA
Mold Cooling Runing water or circulating water It is recommended to use constant temperature cold water 60L/H



Flat Plate Blister Packing Machine Fully Automatic High Speed 236000 Pcs/Hour 0

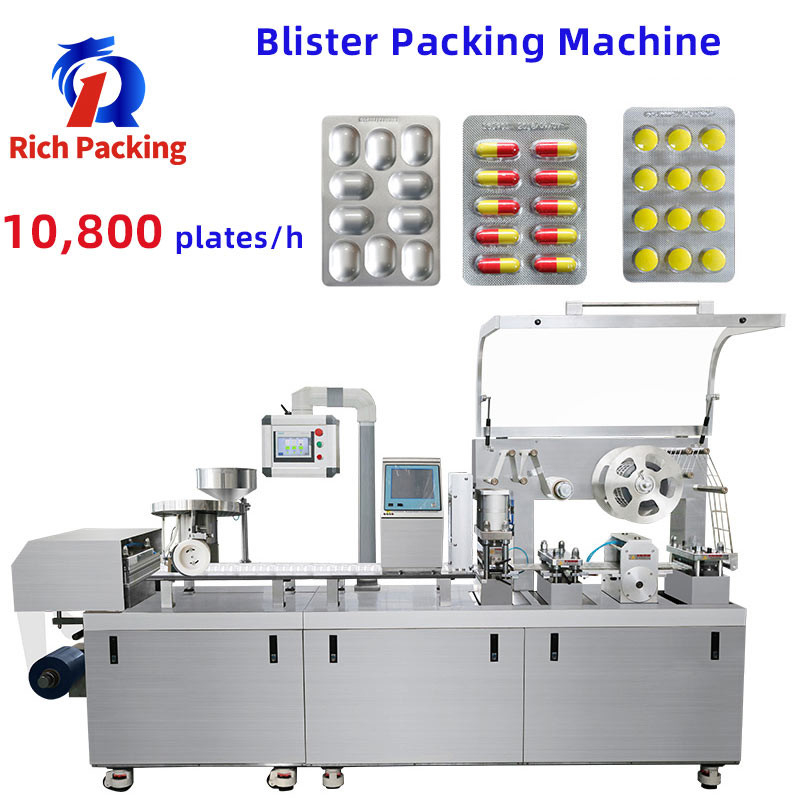

Product details:

Flat Plate Blister Packing Machine Fully Automatic High Speed 236000 Pcs/Hour 1

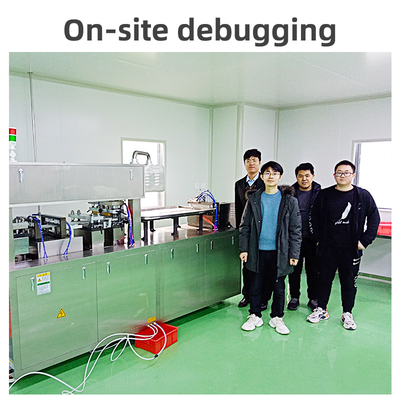

Factory workshop:

Flat Plate Blister Packing Machine Fully Automatic High Speed 236000 Pcs/Hour 2

Flat Plate Blister Packing Machine Fully Automatic High Speed 236000 Pcs/Hour 3



Flat Plate Blister Packing Machine Fully Automatic High Speed 236000 Pcs/Hour 4

This is a fully automatic blister packing machine which is used to take full advantage of aluminum-aluminum or aluminum-plastic material to pack things and all kinds of things can be packed. This machine 260R is stable and accurate in running of packing and very easy and convenient to be adjusted and it is in accord with the GMP standard. This machine 260R can be widely used in any medicine making enterprise or health care product enterprise or food or chemical or other enterprises.



This is pill capsule tablet blister packing machine which can be used to pack pills or tablets or capsules or else because it has an extremely wide application of item packing. And the packing level is extremely high and it will not retreat any material when it stops and it has a very high degree of traction accuracy of 0 fault. People can clean and maintain without any difficulty after using it because it takes full advantage of reasonable and wonderful design to assure the straightforward cleaning as well as maintenance.



Using cast steel uniformly formed floor-standing box body seat can smoothly and successfully assure the stable running of gravity center as well as the straightforward and precise adjustments of all stations. And this design also makes zero deformation of this blister packing machine on all parts to assure the good quality of machine and more perfect for clients to use. It has the wonderful benefit of adoption of large platform design to make it easy to clean as well as maintain by designing power transmission and cam box under the body.
