|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.|
|Delivery Time:||in 14 working days|
|Payment Terms:||L/C, D/P, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Production Capacity:||4,200 Plates/hour||Number Of Blanking:||20～180 Boards/min|
|Maximum Forming Area:||160×250*15mm||Maximum Depth:||26mm (can Customized)|
|Standard Travel Range:||40-160mm||Standard Plate:||80*57mm|
Automatic Tablet Blister Packing Machine,
High Speed Tablet Blister Packing Machine

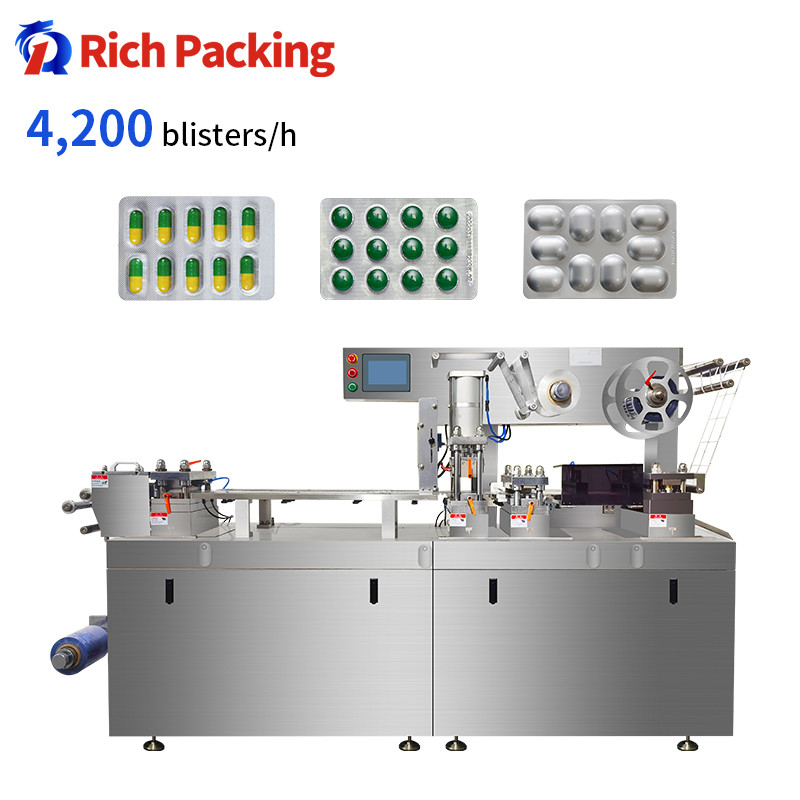

DPP-160pro Tablet Blister Packing Machine Automatic High Speed Packaging Capsule
DPP-160pro blister packing machinery has widely application, can pack tablets, capsules, solid material, jam liquid sauce or others into blister plate or board automatically. It adopts the module design method, mold replacing only need 15 minutes, easy for maintenance and for cleaning.
|Output capacity||4,200 plates/hour|
|Max. Shaping Dia. And Depth||250*160*15mm Max. Depth 26mm(custom-made)|
|Net weight of machine||1600 kg|
|Outline dim.(mm)||3500×740×1680 mm|
1. DPP 160 pro is adopts the new design servo motor pressure driven shaft for traction, there is no traction precision, and those error is zero, and make it become more and more faster than the old type competing products.
2. DPP 160 pro a is adopt the newly platform design, more and more power transmission and the new design cam system are built under the fuselage, and when you are cleaning and maintenance for blister packing tablet capsules machines are very convenient.
3. Machine main parts are using modular design of molds and many core machine parts, its names the new type quick-connect installation mode. The whole set of molds of DPP 160 pro tablet capsule pill blister packing machinery can be installed in 14 minutes after mold change.
