| Production Capacity: | 10,800 Plates/hour | Number Of Blanking: | 20～180 Boards/min |
|---|---|---|---|
| Maximum Forming Area: | 160×250*15mm | Maximum Depth: | 26mm (can Customized) |
| Standard Travel Range: | 40-160mm | Standard Plate: | 80*57mm |
| High Light: | Blister Packing Machine,Blister Packaging Machine,Blister Machine |
||

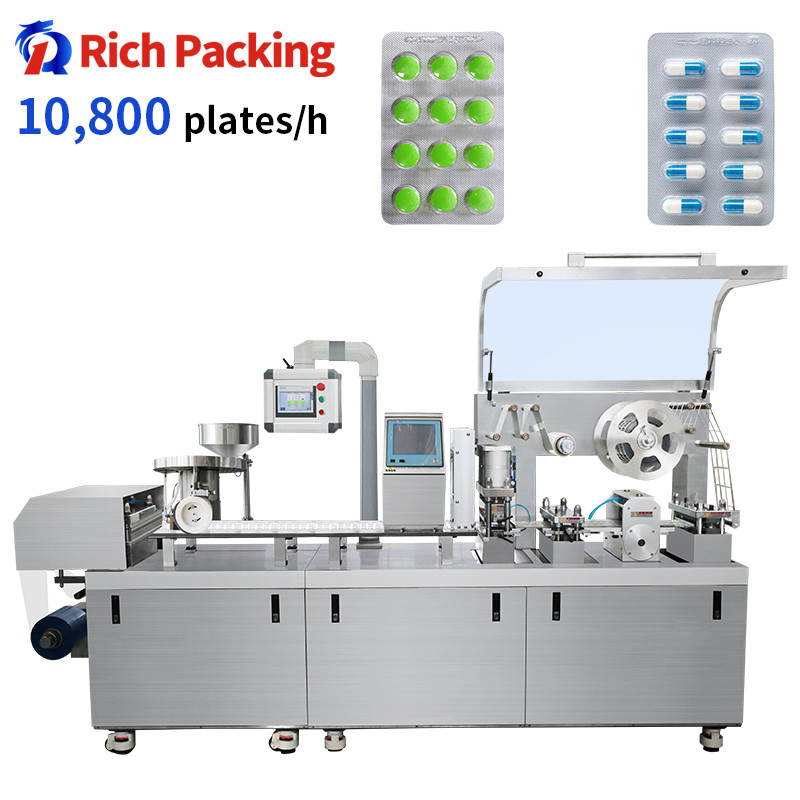

DPP-260R Model

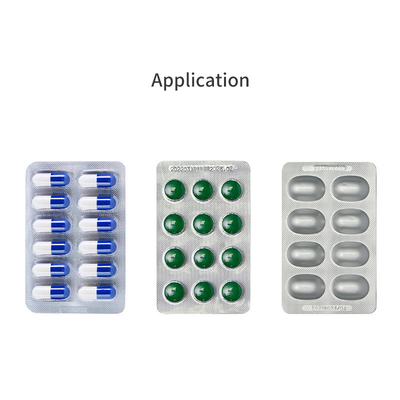

DPP-260R blister packing machine has wider application, can automatically pack tablets, capsules, e-cigarette, sauces or others into blister plate or board. This model adopts modular design method, mould replacing only need 14 minutes, easy maintenance and cleaning.
More than 2000 praise cases
29 Years Experience
in Blister Packing Machine Manufacturing
Product Details:
1. Servo Motor Roller Traction
High accuracy traction > 99.99%.
2. Modular Design
Moulds changing only need 14 minutes.
3. Siemens PLC
Easy opertation, stable running.
| 6S Standard Production Workshop |
| Lead time in 14 days, full life guarantee |
|
| Strict Incoming Inspection |
| 100% full inspection before delivery |
|
Parameter:
| Output capacity | 10,800 plates/hour |
| Max. Shaping Dia. And Depth | 250*160*15mm Max. Depth 26mm(custom-made) |
| Standard Plate | 80*57mm |
| Total Power | 6.0kw |
| Power | 380/220V/50/60Hz (customizable) |
| Net weight of machine | 2600 kg |
| Outline dim.(mm) | 3500×740×1680 mm |
1. Adopt new servo motor pressure roller shaft for traction, no traction precision error, faster than competing products.
2. Adopt new platform design, power transmission and cam system are built under the fuselage, cleaning and maintenance are very convenient.
3. Modular design of molds and machine parts, quick-connect installation mode, the whole set of molds can be installed in 14 minutes after mold change.
Professional Solution
With 29 years experience in the field of pharmaceutical and packaging machinery and solution, we customize the whole flexible solutions for over 4000 customers in blister packing machinery, with on-site overseas tech support service, DDP/DDU service.
Leading Manufacturer
More than 7 international invention patents, as a leading manufacturer of pharmaceutical and packaging machinery in China, Rich Packing give you one-hand EX-Factory price and lead time in 14 days.
