| Name: | ZP-27D Tablet Press Machine | Dies No.: | 27 Set |
|---|---|---|---|
| Max. Capacity: | 90,000 Pcs/h | Max. Pressure: | 120KN |
| Max. Diameter: | 25mm | Max. Thickness: | 17mm |
| High Light: | Tablet Press,Tablet Press Machine,Rotary Tablet Press Machine |
||

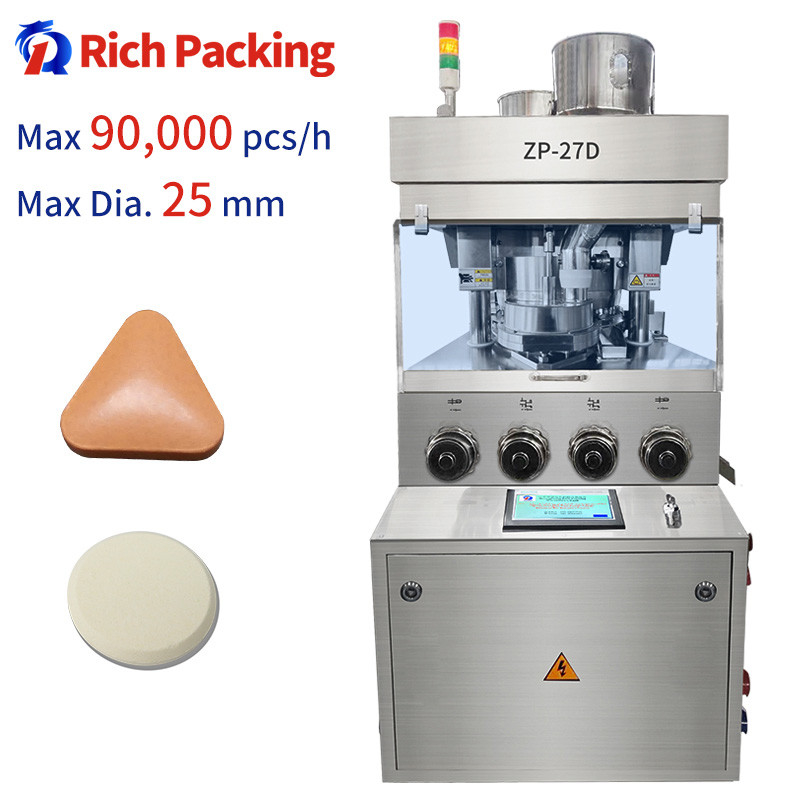

ZP-27D Model
ZP-27D rotary tablet press, with a capacity of up to 90,000 tablets per hour, can efficiently compress powders and granules into tablets of different diameters and thicknesses. Through our flexible solutions, custom-made molds are used to realize the customer's idea of compressing raw materials into different shapes, such as round, triangular, mandrel and special-shaped tablets, with a maximum tablet pressing size of 25 mm.
More than 2000 praise cases
29 Years Experience
in Manufacturing Tablet Press Machine
Product Details:
1. Cosine Curve(patent)
Acccleration is 0, no jump and stable operation
2. Made of Nodular Cast Iron
Meet GMP More than 10 years of use Anti-corrosion
3. Force feeder
Suitable for materials with poor fluidity
| Strength Manufacturer |

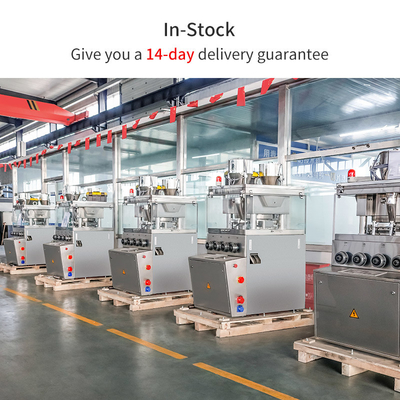

| give you a 14-day delivery guarantee |
|
| Professional Equipment Manufacturing |
| provide you with high-quality tablet press |
|
Parameter:
| Output capacity | 90,000 pcs/hour |
| Model | ZP-27D tablet pressing machine |
| Max Pressuer | 120 KN |
| Max Tablet Diameter | 25 mm |
| Max Tablet Thickness | 12 mm |
| Power | 5.5 kw |
| Machine Weight | 1600kg |
| Outline dim.(mm) | 1040×910×1690mm |
The ZP-27D tablet press machine rotary The entire shell is made of stainless steel, and the plexiglass effectively isolates the external environment to ensure the cleanliness of the production process.
The turntable is forged with ductile iron, which is hard, wear-resistant, non-toxic and smooth. The orbital motion of the die placed above adopts a patented cosine curve, which runs more smoothly.
The rotary tablet press is equipped with an automatic pressure overload protection device, which is activated by high-precision spring pressure to fully ensure the safety of the production process. ZP27D can be used for 10 years without damage.
Professional Solution
With field overseas tech support and local service, DDP/DDU service, we customize the whole flexible solutions for over 4000 customers in tablet press solution.
China Leading Manufacturer
As a leading manufacturer of pharmaceutical and packing machinery in East Asia, more than 7 international invention patents, Rich Packing give you EX-Factory price and 6 hours provide design and program.
