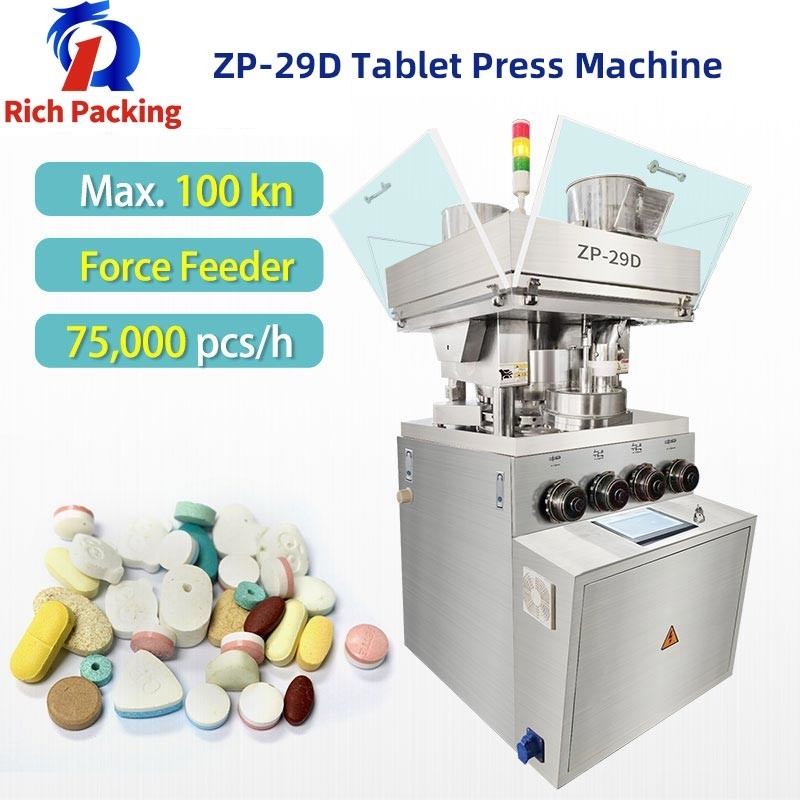

ZP-29D Tablet Making Machine Automatic Pharmaceutical Max. Thickness 12mm

ZP-29D Tablet Making Machine Automatic Pharmaceutical Max. Thickness 12mm

  • ZP-29D Tablet Making Machine Automatic Pharmaceutical Max. Thickness 12mm
  • ZP-29D Tablet Making Machine Automatic Pharmaceutical Max. Thickness 12mm
  • ZP-29D Tablet Making Machine Automatic Pharmaceutical Max. Thickness 12mm
ZP-29D Tablet Making Machine Automatic Pharmaceutical Max. Thickness 12mm
Product Details:
Place of Origin: China
Brand Name: Rich packing
Certification: SGS, CE, ISO
Model Number: 29D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiated price
Packaging Details: pharmaceutical pill press machine Standard export wooden case
Payment Terms: L/C, T/T, Western Union, T/T, Western Union, MoneyGram
Supply Ability: 50 pcs/month
Contact Now
Detailed Product Description
Dies Number.: 29 Set ZP-29D Max. Production Capacity: 75000 Pcs/h
Max. Pressure: 100KN Max. Dia. Of Tablet: 25mm
Max. Depth Of Filling: 24mm ZP-29D Max. Thickness Of Tablet: 12mm
High Light:

12mm Thickness Tablet Making Machine

,

Pharmaceutical Tablet Making Machine

ZP-29D Tablet Making Machine Automatic Pharmaceutical Max. Thickness 12mm







Dia. Of Middle Die Ф38.1mm
Length of Upper/Lower Punching Bar 115mm/133.4mm
Dia.of Upper/Lower Punching Bar Ф25.4mm
ZP-29D Rotary Speed 5~21 r/minute
ZP-29D Motor 5.5kw
Weight of Machine 1600kg



ZP-29D Tablet Making Machine Automatic Pharmaceutical Max. Thickness 12mm 0

Product details:

ZP-29D Tablet Making Machine Automatic Pharmaceutical Max. Thickness 12mm 1

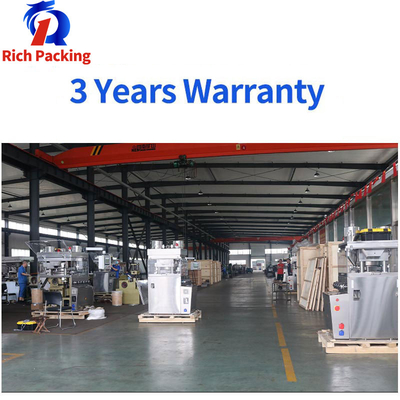

Factory workshop:

ZP-29D Tablet Making Machine Automatic Pharmaceutical Max. Thickness 12mm 2

Exhibition:

ZP-29D Tablet Making Machine Automatic Pharmaceutical Max. Thickness 12mm 3

ZP-29D Tablet Making Machine Automatic Pharmaceutical Max. Thickness 12mm 4



Our company, Guangdong Rich Packing Machinery Co., Ltd. has been making pharmaceutical and packing machine for 28 years, having a very rich experience and professional practice. All kinds of major products are included in our company, tablet making machine is one of them, this is a kind of machine which is widely used to press all kinds of powder and particle into tablets. And all these things can be pressed into all shapes and colors, even the most difficult material can be smoothly pressed into tablet and perfectly in accord with the rules of GMP.



ZP-29D automatic rotary tablet press machine is widely applied for pharmaceutical, chemical, electronics, food and other industries, very popular among customers at home and abroad. The tablet press machine is very safe for people to operate, and zero poison, zero odor and good corrosion prevention, very useful in production. And we have our own professional factory which is always focus on the technological innovation, product research, and excellently technical suggestion before selling, technical training of usage, after-sales technical service all can be provided.



ZP-29D tablet making machine excellent in performance, excellent in quality, and can dramatically improve the production capacity, the maximum capacity is 75000/ hours, rapidly increase the output. The machine is very efficient, and the maximum press diameter is 25mm, the equipment utilizes double pressure, the maximum press thickness can reach to 12mm. The brands of the core components of the ZP-29D machine are famous, such as German SIEMENS, Japanese OMRON, etc.
