|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the tablet press machine during transportation.|
|Delivery Time:||5-8 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Dia. Of Middle Die:||Ф38.1mm||Length Of Upper/Lower Punching Bar:||136.4mm/153.4mm|
|Dia.of Upper/Lower Punching Bar:||Ф25.4mm||Rotary Speed:||7～17 R/minute|
|Motor:||7.5 Kilowatt||Weight Of Machine:||1600kg|
153.4mm Tablet Making Machine,
17r/minute Tablet Making Machine,
GMP Tablet Press Machine

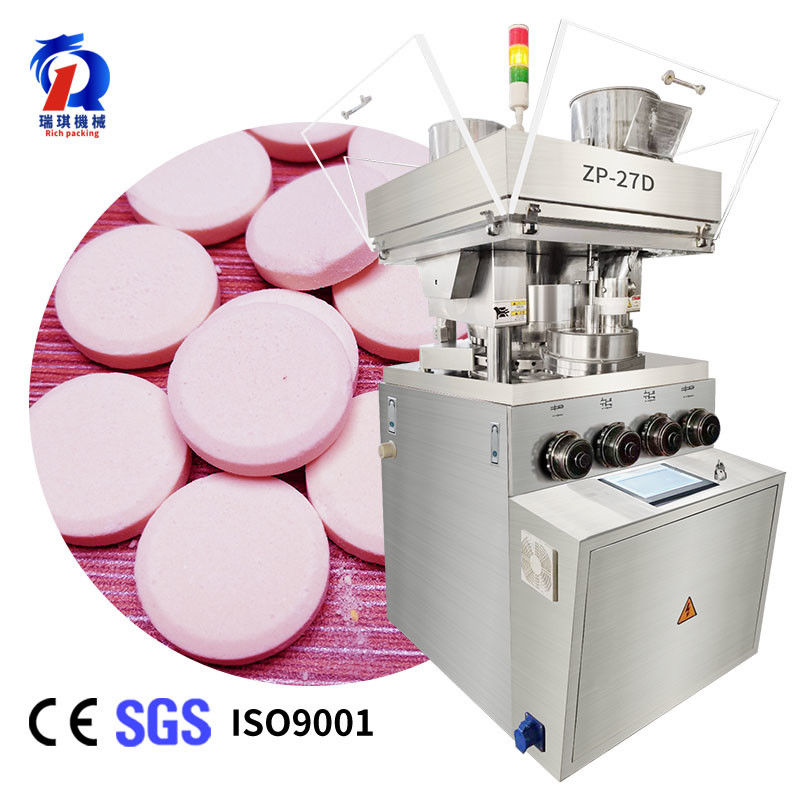

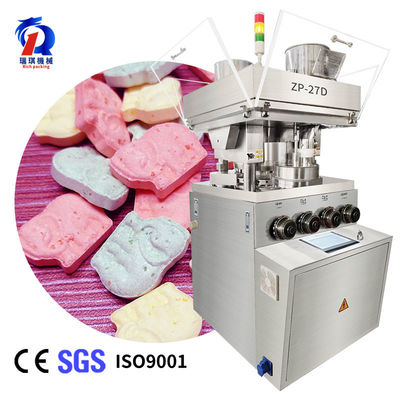

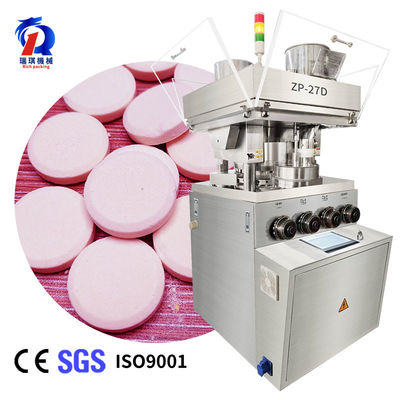

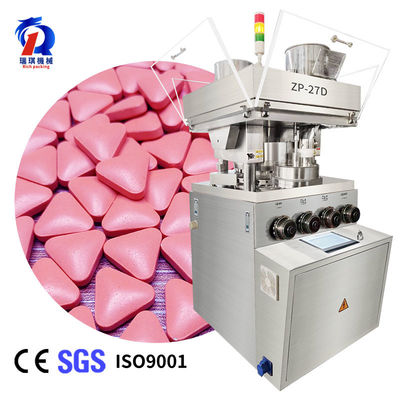

Tablet Making Machine Zp 27d Pharmaceutical Fully Automatic Tablet Press
As a kind of innovative product, ZP-27D automatic rotary tablet press machine has a wide application for many things. Powder and particle can be continuously pressed into round tablets, special-shaped tablets, double color and annular tablet, ZP-27D automatic rotary tablet press machine is very popular in many fields in production.Such as it can be available in various enterprises, including pharmaceutical, chemical, electronics, food and so on, it is very useful in production. And it can be perfectly suitable for pressing the material which is not straightforward to be formed into tablet, truly perfect meets the rules of GMP production.
ZP-27D Rotary Tablet Press Machine is large in output, high in efficiency, high in cost performance. Adopting double pressure mode, high speed rotary tablet press machine has large output, which is twice that of single pressure, under the same speed. And it has dies of 27, maximum pressure of 120KN, maximum tablet diameter of 25mm, maximum output of 55000/hour, maximum filling depth of 35mm, maximum tablet thickness of 17mm.
Tablet Press Machine totally perfect meets the standard rules of GMP, and the production material of the whole shell is stainless steel, the chamber is separated from the external environment by the organic glass. Having good sealing is also one of its features. All the contacting parts of the tablet press totally perfect meet the rules of “zero poison, zero odor, zero corrosion prevention”. Nodular cast iron is the production material of the turntable, strictly implemented for 12 months. And there are various features of the Tablet Press Machine, it is hard, wearable, non-toxic, smooth, totally perfect meets the rules of GMP.
|Dies No.||27 set|
|Max. Production Capacity||55000 pcs/hour|
|Max. Dia. of Tablet||25mm|
|Max. Depth of Filling||35mm|
|Maximum. Thickness of Tablet||17mm|
Contact Person: Mr. Fu
