| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS |
| Model Number: | DPP-260r |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Packaging Details: | Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation. |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 50 pcs/month |
| Production Capacity: | 236,000 Grains/hour | Number Of Blanking: | 20～180 Boards/min |
|---|---|---|---|
| Maximum Forming Area: | 160×250*15mm | Maximum Depth: | 26mm (can Customized) |
| Standard Travel Range: | 40-160mm | Standard Plate: | 80*57mm |
| PVC Thickness/width: | 260×0.15-0.45mm | PTP Aluminum Foil Thickness/width: | 260×0.02-0.03mm |
| High Light: | 236000p/h Blister Packaging Machine,6.0kw Blister Packaging Machine |
||

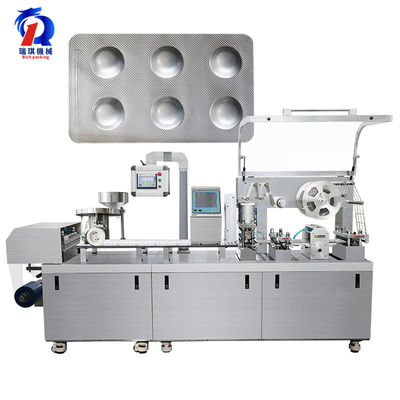

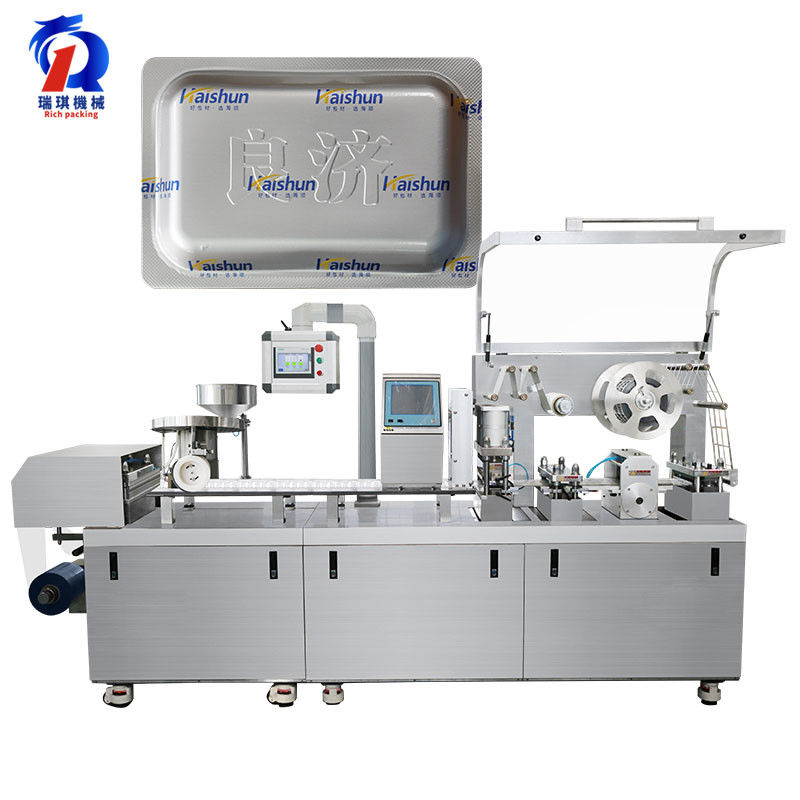

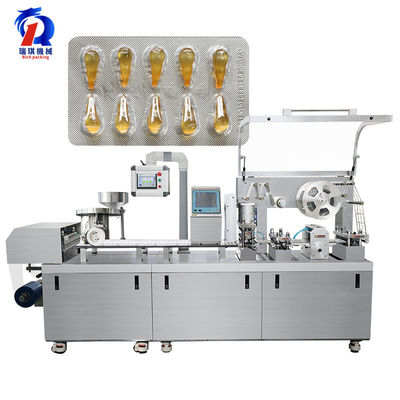

Dpp 260r Blister Packing Machine Automatic High Speed 236000 P/Hour
| Model | 260R Blister packaging machine |
| The production capacity | 236000 p / h |
| The maximum molding area and depth | 160 × 250 * 15.1mm |
| Maximum depth | 26mm (can customed) |
| The main motor power | 1.5KW |
| The total power(kw) | 6.0kw |
1. Blister packaging machine using new servo motor, pressure shaft traction, accuracy is zero error, speed will be faster, stop running, will not retreat.
2. The cams of forming, heat sealing, indentation and blanking are floor type box seats, which are made of cast steel and will never deform. The center of gravity of the aluminum-plastic machine is stable, and the adjustment of each position is convenient and accurate. The forming, heat sealing and blanking station is fixed by the cam box mandrel, which has a unified horizontal positioning standard and adjustment scale standard, making it more convenient to adjust the alignment.
3. Blister packaging machine is a large platform type, power transmission and landing cam box are built in the lower part of the machine, which is convenient for cleaning and maintenance after use.
4. PVC, PTP broken will stop, and there will be automatic alarm function, which will reduce waste, and improve the utilization efficiency of raw materials.
5. The mould is designed with module type, adopting drawing card slot and quick connection installation. It is convenient and quick for customers to replace the mould, and the installation of the whole set of mould can be completed in about 10 minutes.
blister packaging machine has new servo motor
