| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS |
| Model Number: | DPP-260R |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $22306-$24784per set |
| Packaging Details: | Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation. |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 50 pcs/month |
| Blanking: | 20～180 Boards/min Tablet Blister Packing Machine | Production Capacity: | 236,000 Grains/hour |
|---|---|---|---|
| Applicantion: | Capsule Blister Packing Machine | Maximum Depth: | 26mm (can Customized) |
| Standard Plate: | 80*57mm | Suitable Industry: | Pharmaceutical Blister Packing Machine |
| High Light: | 236000 Grains / Hour Blister Packing Machine,Capsule Blister Packing Machine,180 Boards / Min Tablet Blister Packing Machine |
||

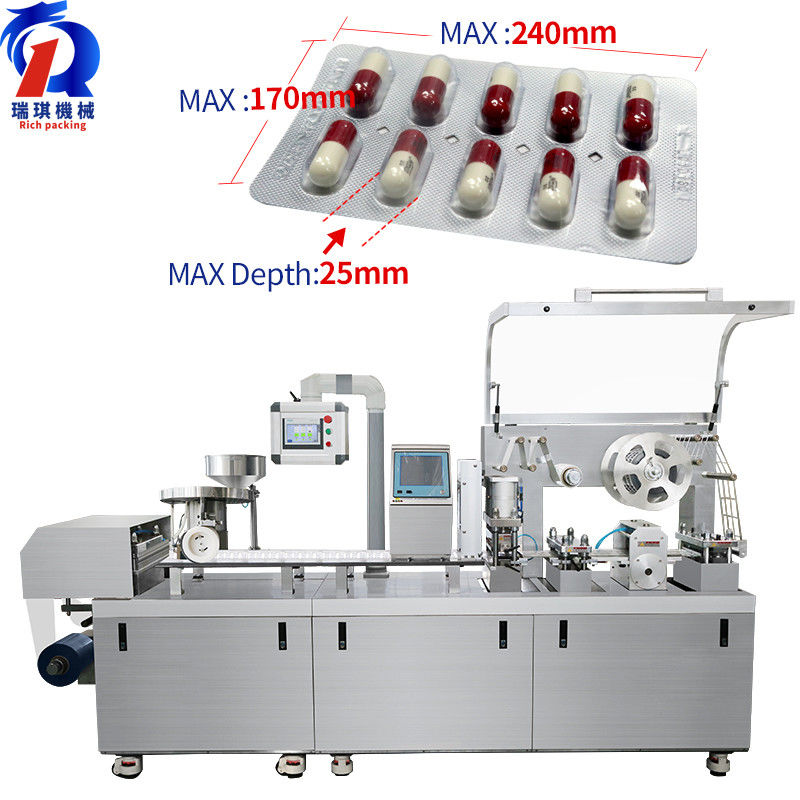

Blister Packing Machine DPP 260 Medical High Speed For Tablet Capsule
|
Model |
260R Blister Packaging Machine For Pharmaceutical |
|
The production capacity |
20～180 boards/min |
|
The maximum molding area |
160 × 250 * 15.1mm |
|
Maximum depth |
26mm (can customed) |
|
The total power(kw) |
6.0 kw |
Application:

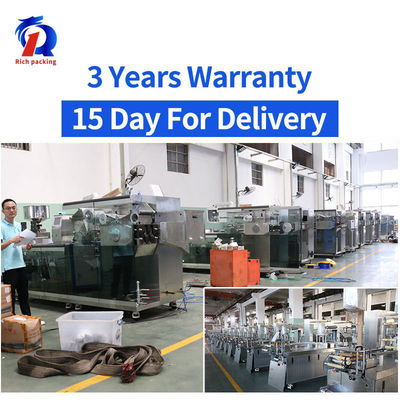

Factory workshop:
Product details:
Those new 260 blister packaging machine capsules are the latest models and have many applications. For the configuration of these machines, we use those brand-name products exported:
The most critical part of those 260 blister packaging machine capsules is the servo motor. Servo feed motor and servo motor are manufactured by Taiwan Delta. 260R has the advantages of high traction accuracy, accurate feeding, error-free traction accuracy, and fast running speed of parts. Even if the traction station stops the operation of those machinery, those will not abdicate, and the operation of those customers is more convenient.The PLC touch screen is made by Siemens, Germany, and the PLC module is made by OMRON, Japan. PLC is more convenient for customers to use data management. 260 blister packaging forming machine capsule data programming design, frequency conversion speed regulation, customer operation convenience, good integration.
The most critical part of the 260r blister packaging machine is the servo motor. Both the feed motor and the servo motor use Taiwan Delta. It has extremely high traction accuracy and accurate feeding, and the traction accuracy is error-free, which brings faster running speed to the 260R machine. Traction station Even if the 260R blister packaging machine stops, the 260R material in the traction station will not move forward, which is convenient for customers to operate.
