| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS |
| Model Number: | DPP-260r |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Packaging Details: | Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation. |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 50 pcs/month |
| Production Capacity: | 1.8～236,000 Grains/hour | Number Of Blanking: | 20～180 Boards/min |
|---|---|---|---|
| Maximum Forming Area: | 160×250*15mm | Maximum Depth: | 26mm (customized) |
| Standard Travel Range: | 40-160mm | Standard Plate: | 80*57mm |
| PVC Thickness/width: | 260×0.15～0.45mm | PTP Aluminum Foil Thickness/width: | 260×0.02～0.03mm |
| High Light: | Pill Blister Packaging Machine,40MM Blister Packaging Machine |
||

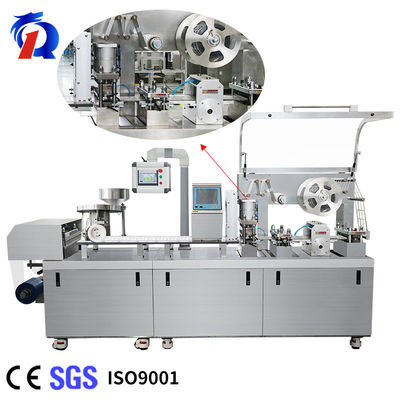

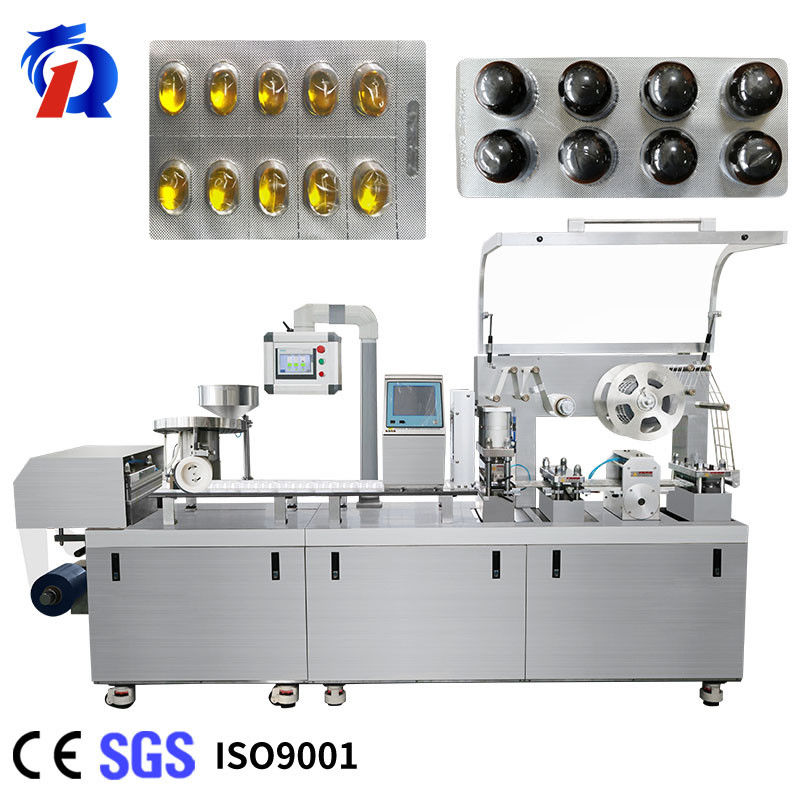

260r Pharmaceutical Capsule Blister Packaging Machine Tablet And Pill
| Model | 260R tablet blister packing machine |
| The production capacity | 236000 grains / h |
| The maximum molding area and depth | 160 × 250 * 15.1mm |
| Maximum depth | 26mm (can custom) |
| The main motor power | 1.5KW |
| The total power(kw) | 6.0kw |
260r blister packaging machine is the latest product developed by our company with a high speed of 236000 plates/h. It contains a servo motor drive, so the blister packaging machine has higher precision, more stability and more convenient adjustment.
Blister packaging machine can not only pack large-size products such as capsule candies and big honey pills, but also pack products such as electronic cigarettes.
260r blister packaging machine has the functions of automatic forming, feeding, sealing and servo traction, so it is a machine required for large-scale production in the pharmaceutical, chemical and food industries.

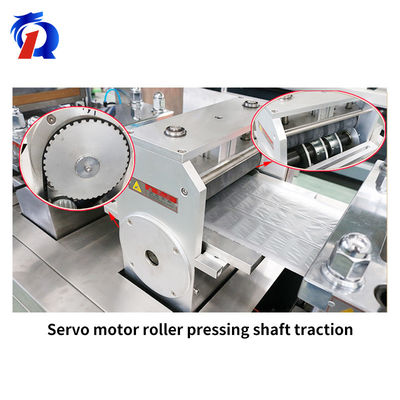

Because the 260r blister packaging machine has a new type of servo motor roller traction method, the traction accuracy of the machine is zero error, and the speed is faster, and the material that stops packaging does not shrink.
The power transmission and cam box of the 260r blister packaging machine are placed under the car body, and a large platform design is adopted. This design makes cleaning and maintenance more convenient.
The three stations of forming, heat sealing, and punching are all protected by a safety cover to avoid injuries to operators.
blister packaging machine has new technology servo motor
