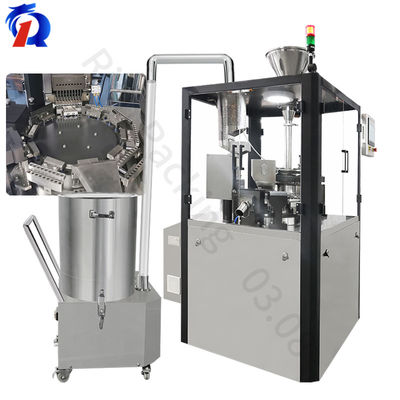

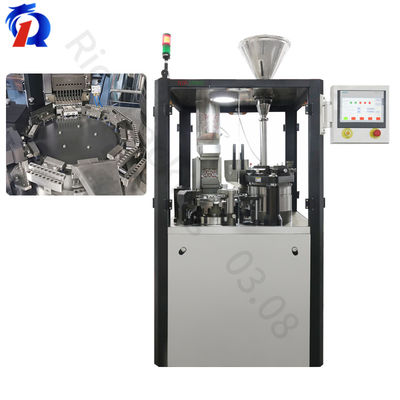

Stainless Steel 1500pcs/Min NJP Pharmaceutical Pellet Capsule Filling Machine

Stainless Steel 1500pcs/Min NJP Pharmaceutical Pellet Capsule Filling Machine

  • Stainless Steel 1500pcs/Min  NJP Pharmaceutical Pellet Capsule Filling Machine
  • Stainless Steel 1500pcs/Min  NJP Pharmaceutical Pellet Capsule Filling Machine
  • Stainless Steel 1500pcs/Min  NJP Pharmaceutical Pellet Capsule Filling Machine
Stainless Steel 1500pcs/Min  NJP Pharmaceutical Pellet Capsule Filling Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: RichPacking
Certification: CE/ISO9001/SGS
Model Number: NJP-1500D
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Packaging Details: capsule filling machine is first wrapped with a transparent film, and then bound in a wooden box
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 39 pcs/month
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support Capacity: 94500 Capsules/hour
Model Condition: New Type: Automated Capsule Filling Machine
Machine Voltage: 220-380V 50Hz Driven Type: Electric
Model Power W: 10499 Automatic Grade: Fully-Automatic
Warranty Years: Two Years Name: NJP 1500
High Light:

1500pcs/Min Capsule Filling Machine

,

Pellet Capsule Filling Machine

Stainless Steel 1500pcs/Min NJP Pharmaceutical Pellet Capsule Filling Machine





The 1500D capsule filling machine of Rich Packing company adopts the turntable type filling structure of practical patent design.



Ten working positions:This model machine is divided into ten working positions. When the machine is running, the turntable starts to rotate counterclockwise. The first and second working positions are capsule separation position, the third or fifth working position is pill feeding position, the fourth working position is powder feeding position, the sixth working position is weeding function, the seventh and eighth working positions are capsule locking working position, the ninth working position is finished product output working position, and the tenth working position is cleaning working position.



TurntableWhen the turntable rotates and ten working positions operate, a complete production process of filling hollow capsules is completed.

The most important of the ten working positions of the turntable is the fourth working position, powder filling working position. According to the feedback from customers that it takes a long time to replace the mold and the current situation of the industry, we have specially improved the filling rod, so that the mold can be replaced in 15 minutes.



Rejection: The function of the sixth working position is to eliminate waste. In the process of filling the capsules, the capsules are not separated correctly, the capsule shell is damaged, and the filling dose is insufficient. When the turntable is turned to the weeding position, the high-pressure adsorption device will suck away the waste capsules. Then, the capsule shell and the material are separated to recover the powder material to avoid the powder pollution, and the discarded capsule shell is collected at the same time.



Product of max capacity 90000 pcs/h
weight of 1500d model 1,200Kg

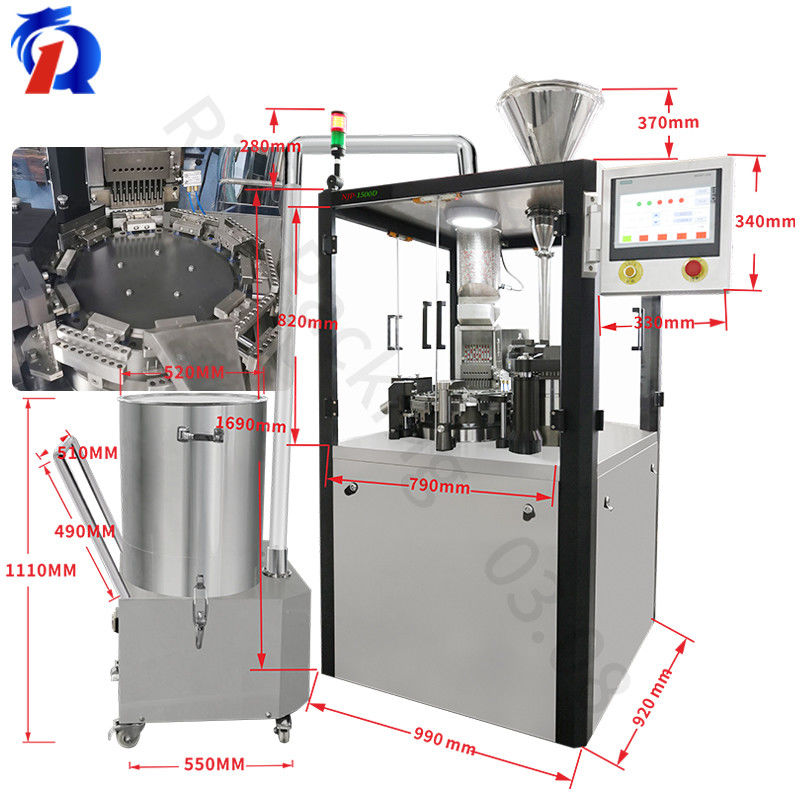

Overall size of machine 900*870*1950mm
Power Vol. 360/220V 50Hz
power of supply 5480w
No.of segment hole 9
Vacuum pressure 38.5m3/h-0.04-0.079Mpa

Stainless Steel 1500pcs/Min  NJP Pharmaceutical Pellet Capsule Filling Machine 0

Stainless Steel 1500pcs/Min  NJP Pharmaceutical Pellet Capsule Filling Machine 1

Stainless Steel 1500pcs/Min  NJP Pharmaceutical Pellet Capsule Filling Machine 2



 machine capsule filling capsule filling capsule filling machin

Stainless Steel 1500pcs/Min  NJP Pharmaceutical Pellet Capsule Filling Machine 3

capsule filling machine machine capsule filling capsule filling

automatic machine capsule filling
