DPP160L Automatic Fill Seal Chocolate Liquid Blister Packing Machine

DPP160L Automatic Fill Seal Chocolate Liquid Blister Packing Machine

  • DPP160L Automatic Fill Seal Chocolate Liquid Blister Packing Machine
  • DPP160L Automatic Fill Seal Chocolate Liquid Blister Packing Machine
DPP160L Automatic Fill Seal Chocolate Liquid Blister Packing Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE/ISO 9001/SGS
Model Number: DPP-160L
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $11655-$11881 per pcs
Packaging Details: Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.
Delivery Time: 5-8 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 50 pcs/month
Contact Now
Detailed Product Description
Blister Pack Machine Product: DPP160L Automatic Fill Seal Liquid Blister Packing Machine Blister Pack Machine Blanking: 10~35 Times/min
Production Capacity: 1200-4200 Plates/h Max. Shaping Dia. And Depth: 145*110*15mm Max. Depth 26mm(custom-made)
Standard Travel Range: 50~120mm Standard Plate: 80*57mm
Power OfMain Motor: 1.5kW Blister Packing Machine Power: 380V/220V/50Hz
Blister Package Machine Noise: <75dBA Thickness And Width Of PVC: 0.15~0.5*150mm
Thickness And Width Of PTP: 0.02~0.035*150mm
High Light:

Chocolate Liquid Blister Packing Machine

,

4200 plates/h Blister Packing Machine

DPP160L Automatic fill seal liquid blister packing machine is a high-speed flat-panel aluminum-plastic liquid blister packing machine by Guangdong Rich Packing Machinery Co.,Ltd. It can pack liquid such as yoghurt,oil,jam,butter,honey,cheese,sauce,cream or perfume ect.with possessing fully automatic shaping,adding,sealing and blanking.

blister machine Blanking 10~35 times/min
Production Capacity 1200-4200 plates/h
Max. Shaping Dia. And Depth 145*110*15mm Max. Depth 26mm(custom-made)
Standard Travel Range 50~120mm
blister machine Standard Plate 80*57mm
Power ofMain Motor 1.5kW
blister machine Total Power 3.8kW
blister machine Power 380V/220V/50Hz
blister machine Noise <75dBA
Thickness and Width of PVC 0.15~0.5*150mm
Thickness and Width of PTP 0.02~0.035*150mm
blister machine Dialyzing Paper 50~100g*150mm
blister machine Mold Cooling Runing water or circulating water
blister machine Weight Net weight 850 kg ;Gross weight1400 kg
Overall Size of Machine 2300*635*1500 mm
blister machine Packing Size 2750*950*1800mm



DPP160L Automatic fill seal liquid blister packing machine details:

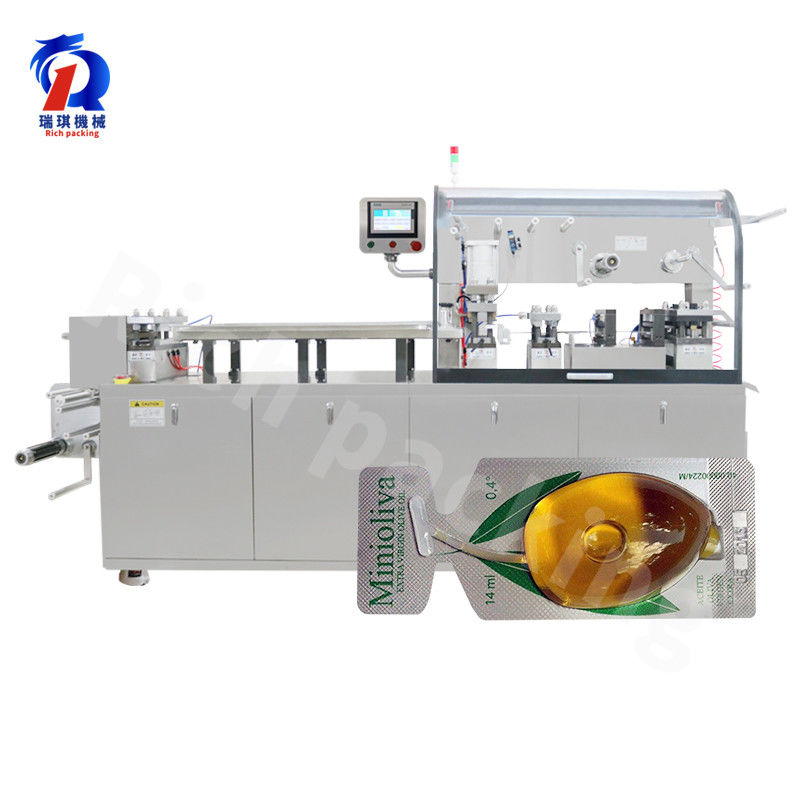

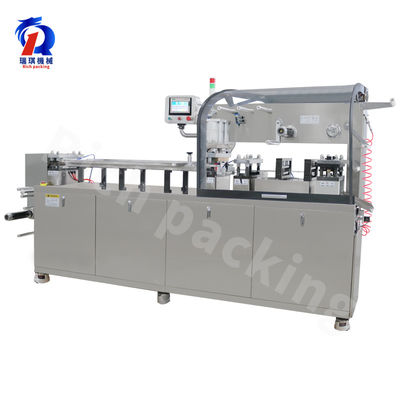

blister packing machine

DPP160L Automatic Fill Seal Chocolate Liquid Blister Packing Machine 1

DPP160L automatic liquid jam blister packing machine / honey blister packing machine





Automatic fill seal liquid blister packing machine



DPP160L automatic liquid jam blister packing machine / honey blister packing machine

DPP160L Automatic Fill Seal Chocolate Liquid Blister Packing Machine 3

DPP160L Automatic fill seal liquid blister packing machine company:





DPP160L Automatic Fill Seal Chocolate Liquid Blister Packing Machine 4

DPP160L Automatic fill seal liquid blister packing machine
