Only create value for our customers, we have the value of existence.
 |
| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS |
| Model Number: | DPP-260 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | $18710-$19037 per pcs |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 50 pcs/month |
| Production Capacity: | 2400-9600 Pellets Per Hour | Max. Shaping Dia. And Depth: | 240*170*15mm Max. Depth 26mm（custom-made |
|---|---|---|---|
| Blanking: | 45 Times/min | Power Of Main Motor: | 1.5kW |
| Total Power: | 6.2kW | Standard Plate: | 80*57mm |
| Standard Travel Range: | 40～185mm | Noise: | <75dBA |
| Highlight: | Capsule Blister Packaging Machine,185mm Blister Pack Sealing Machine |
||

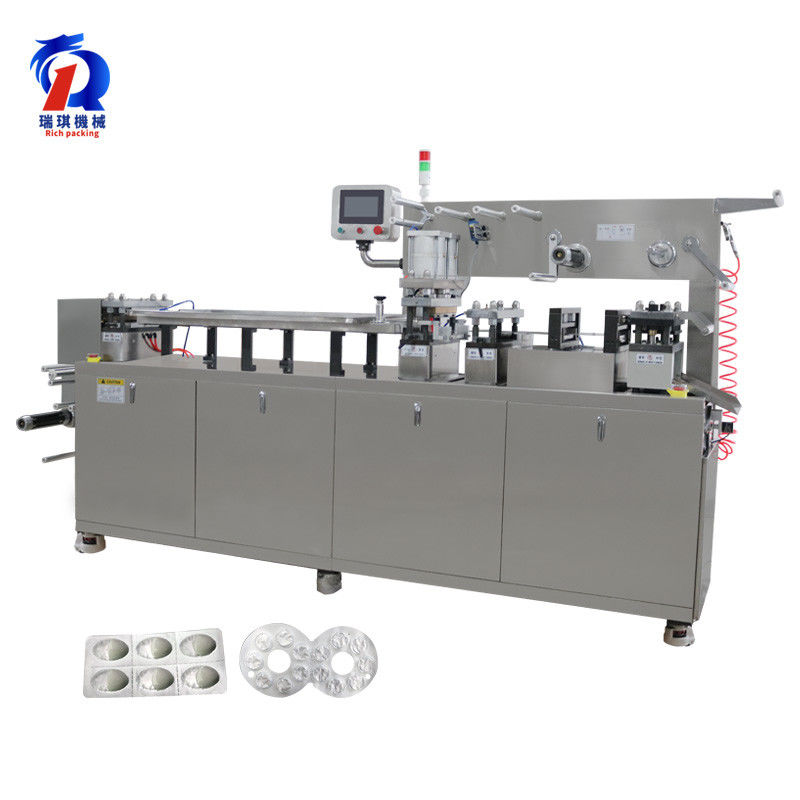

DPP-260S is a high-speed flat-panel aluminum-plastic blister packaging machine newly developed by Guangdong Rich Packing Machinery Co.,Ltd. It is driven by servo motor, with better accuracy, stable operation and convenient adjustment.DPP-260S expect can packaging tablets,capsules,candy,also can packaging many big sizes products,such as electronic cigarettes,perfume,tomato paste,soft capsules,big honey pills,penicillin bottles and etc.
| Name | Spec./Model | Qty | Manufacturer |
| Servo Motor | 750WMHMD042G1U+MBDHT2510 | 1 | Panasonic |
| Adjusting Speed Plate | EM232CN | 1 | Siemens |
| Touch screen | ST700 | 1 | Siemens |
| Air circuit breaker | C65N-20A/3P | 1 | Schneider |
| Air circuit breaker | C65N-10A/1P | 2 | Schneider |
| Air circuit breaker | C65N-6A/1P | 1 | Schneider |
| Main motor | CH32 ZHP1500W | 1 | Taibang |
| Frequency inverter | DVA-3S0015G | 1 | Leader |
| Machine control valve | VM230-01-01 | 1 | Japan SMC |
| Cylinder | SSA φ32×15 | 2 | TAC |
| Programmable PLC | CPU224CN | 1 | Siemens |
| Solenoid valve | SG4V210-08 | 3 | TAC |
| Temperature Module | EM231CN | 1 | Siemens |
| Feeder motor | 802YT52 J15 | 1 | Taibang |
| Receiving and discharging motor | 4GN-15-K | 2 | Taibang |
| Formed heating plate | 170×130×20 | 2 | Rich Packing |
| Heat Seal Heating Plate | 158×110×20 | 1 | Rich Packing |
| Intermediate relay | MY2NJ | 5 | Omron |
| Thermocouple | WRKT-01 | 2 | Taishi |
| Solid state relay | SSR-40DA | 2 | Yangming |
| Cursor version | RQ-GB-3 | 1 | Yatai |
| Control transformer | JBK3-63 | 1 | Zhengtai |
1.Servo traction motor
The blister pack sealing machine is driven by full servo, the traction distance is zero error, and the maximum traction distance can reach 185mm. It is suitable for long-term operation, easy to adjust and greatly reduces the difficulty of adjustment.
2.Cylinder Drive Heat Sealing Device
the blister pack sealing machine Adjustable temperature, Accurate Travel；Tight Sealing, No Wrinkles
3.Handwheel With Scales
Each Station Can Move Freely On The Spindle Through The Free Adjustment Of Handwheel
4.Locating Slot Pins Mould
One-key Positioning, And The Debugging Time Was Reduced 50%
5.Dual emergency stop protection
Because of the long size of 260S aluminium plastic blister packaging machine, there are two emergency stop devices, which can stop immediately in case of emergency.
