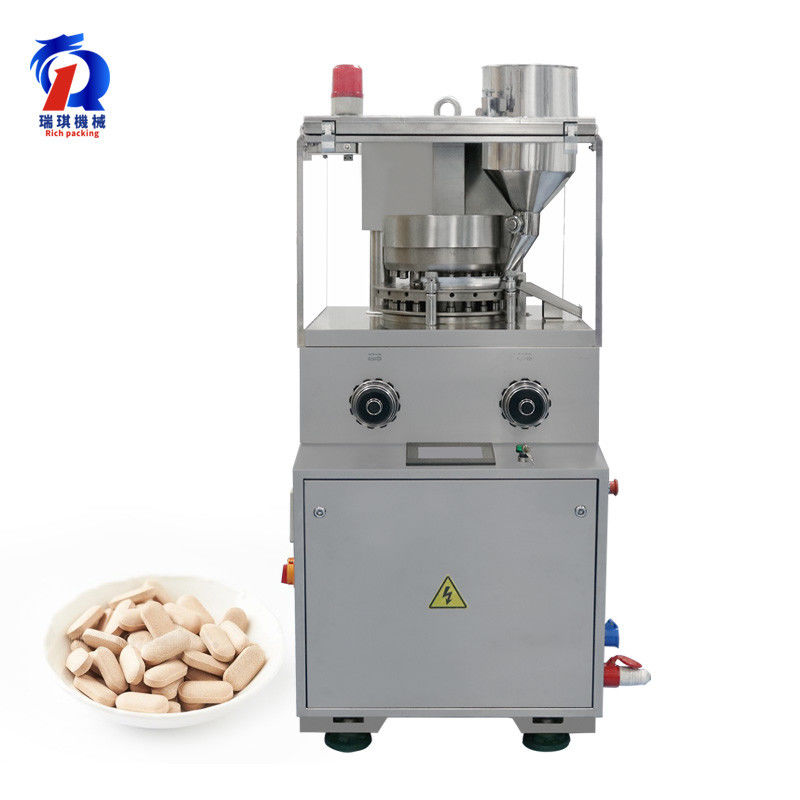

High Speed Auto Zp-20 Rotary Making Pharmaceutical Pill Press Tablet Press Machine

High Speed Auto Zp-20 Rotary Making Pharmaceutical Pill Press Tablet Press Machine

  • High Speed Auto Zp-20 Rotary Making Pharmaceutical Pill Press Tablet Press Machine
  • High Speed Auto Zp-20 Rotary Making Pharmaceutical Pill Press Tablet Press Machine
High Speed Auto Zp-20 Rotary Making Pharmaceutical Pill Press Tablet Press Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: SGS CE ISO 9001
Model Number: ZP-20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $15336-$15634 per set
Packaging Details: Standard export wooden case
Delivery Time: 15-20 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 50 pcs/month
Contact Now
Detailed Product Description
Item: Rotary High Speed Tablet Press Machine Condition: New
Application: Medical,pharmaceutical Voltage: 220V/380V
Automatic Grade: Automatic Driven Type: Electric
Warranty: 2 Year Usage: Medical,pharmaceutical,food
Feature: Eco-Friendly,easy Operation
High Light:

pill press machine

,

capsule press machine



Product Description



ZP-20 is a kind of automatic rotary tablet press machine and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet. ZP 20 Tablet press machine is the preferred product in pharmaceutical, chemical, electronics, food and other enterprises in production, Tablet press machine is also suitable for pressing that material that is difficult formed into tablet, meet the requirements of GMP production.



After-sale Provide Engineers available to service machinery overseas
ZP Model ZP-20 ZP-25 ZP-35 ZP-45
Power 4Kw 7.5Kw 4Kw 5.5Kw
Production Capacity 4W Pcs/h 6W Pcs/h 13W Pcs/h 20W Pcs/h
Pressure 800KN 100KN 80KN 100KN
Weight 1200Kg 2000Kg 1400Kg 1800Kg





Spare Item Specification Manufacturer
Overload Protector Self Design Self Manufacture
Intelligent Lubrication System American BIJUR DELIMON American BIJUR DELIMON
Frequency Converter VFD037B43B Taiwan Delta
AC Contactor 3TB40 22-OXMO Germany Siemens
Relay MY-2NJ MY-4NJ Japan Omron

Features:

1,High efficiency and high cost performance. This machine adopts single pressure, IPT die, the maximum pressure is 80 kN, maximum press diameter 25mm, maximum capacity 40000/ hours, maximum press thickness 8mm.

2,It meets the requirements of GMP. The whole shell is made of stainless steel, and the chamber is separated from the outside environment by the organic glass, with good sealing. All the contacting parts of the tablet press meet the requirements of "no poison, no odor and corrosion prevention". The turntable is made of nodular cast iron and strictly implemented for 12 months, which is hard, wearable, non-toxic and smooth, which fully meets the requirements of GMP.

3,The equipment has high precision, stable weight, sensitive adjustment and smooth operation.

3.1 The hole of upper punch, lower punch and middle mold, the axis of outer circle to the center of the shaft hole coaxiality is H8 (-0.165/0).

3.2 The contact parts of die hole surface and the upper and lower die and rail roughness Ra≤1.6μm, the feeder is tin bronze (ZQSn6-6-3) material, the surface of nickel chromium, the bottom roughness Ra≤0.8μm.

3.3 The sensitivity of the hand wheel is 0.1mm.

3.4 The upper punch adapt "down pressure guide", will not jump, running more smoothly.

4,Highly intelligent.

4.1 With pressure overload protection device. It will start the overload protection through the spring pressure, alarm lights, automatic stop running.

4.2 The principle of eccentric torque is used to protect the die and machine. Compared with the hydraulic overload protection, it has a fast reaction speed and no oil pollution

4.3 Intelligent lubrication system. The technology of BIJUR DELIMON, USA, is used to provided timely, quantitative and timely refueling for parts that need lubrication. The quantity of oil can be flexibly adjusted according to the specific environment of customers.

5,Abide by the GMP idea, the product is structured and modularized.

5.1 The independent modularization of the transmission system is set under the main body of the machine, and it can effectively avoid the trace contaminant drugs produced by the friction of the machine running.

5.2 Use large angle platform design as far as possible in each part of the machine's operating surface, reducing the "ditch ridge" and the exposed nut to make it smooth and without dead angle.

5.3 Lower pressure wheel shaft and the lower rail guide are installed with the casting subtraction structure (new patent), which is convenient for disassemble, maintenance and replacement. The bottom of the lower pressure wheel has a discharge hole, which can be washed and discharged with water.

5.4 The mold, hopper, feeder, outlet slot, scraping plate are disassembly convenient, easy cleaning and maintenance.

5.5 Good sealing performance, can prevent cross pollution.



6,High pressure, It adapts "Down pressure guide", the pressure is big, can suppress the hard material.

7,High equipment configuration. The core components are all famous brand products such as German SIEMENS and Japanese OMRON, with long service life and low failure rate.

small tablet press machinesmall tablet press machinesmall tablet press machine

small tablet press machine
