| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS |
| Model Number: | NJP-800C |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | L/C, , T/T, Western Union |
| Supply Ability: | 50 pcs/month |
| Item: | Capsule Filling Machine | Error Rate: | ±3%-±4% |
|---|---|---|---|
| Motor Power: | 5 Kw | Warranty: | 1 Year |
| Condition: | New | Noise Index: | <75dB(A) |
| Filling Rate: | Empty Capsule 99.9%;Full Capsule 99.8% | ||
| High Light: | automatic capsule filler,auto capsule filling machine |
||
1. Capsule Powder Filling Machine
2. Capsule Pellet Filling Machine
3. Hard Capsule Filling Machine
4. Fully Automatic Capsule Machine
5. NJP Capsule Filling Machine

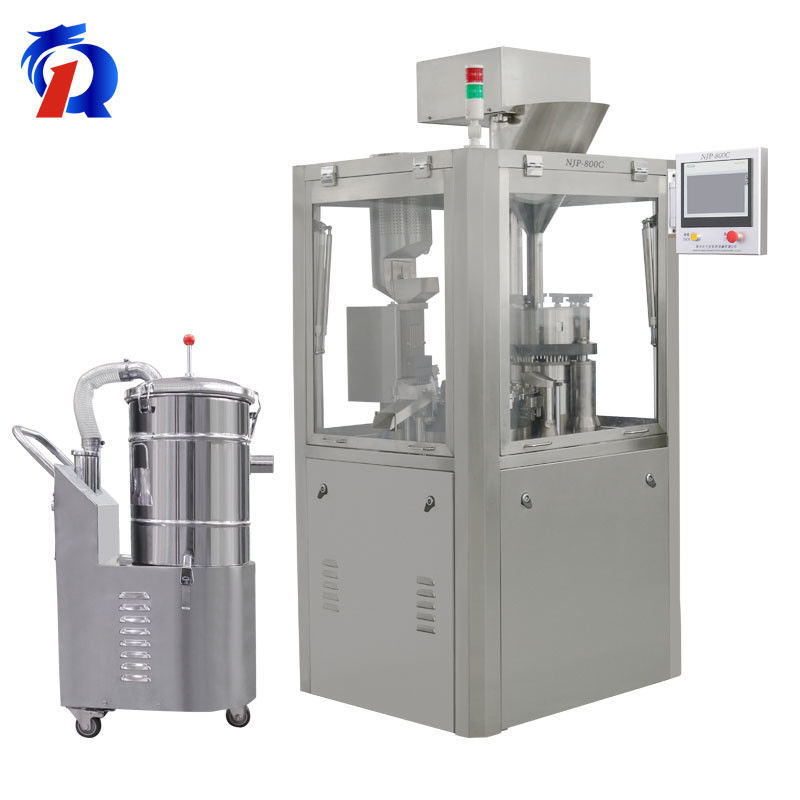

Gmp Standard Njp-800c Capsule Filling Machine Is The Third Generation Of Innovative Products. It Has 6 Technological Innovations And 2 Invention Patents. It Can Fill Powder, Granules And Other Materials Into Hollow Capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#). 800c Capsule Filling Machine Can Automatically Finish The Production Process Including Sowing, Capsule Separating, Filling, Locking, Unqualified Capsule Rejected And Finished Products Output. It Has The Advantages Of Accurate Loading, Stable Operation And No Dust.
| Filling Machine Model | 200C | 400C | 800C | 1200C |
| Power | 3Kw | 3.5Kw | 5Kw | 5.5Kw |
| Production Capacity | 12000 Pcs/h | 24000 Pcs/h | 48000 Pcs/h | 72000 Pcs/h |
| Dimension | 805*705*1760mm | 805*705*1760mm | 865*855*1900mm | 900*870*1950mm |
| Weight | 600Kg | 600Kg | 900Kg | 1100Kg |
| Parts Item | Specificatio | Qty | Manufacturer |
| Touch Screen | 6AV6/648-0BC11-3AX0 | 1 | Germany Siemens |
| PLC | 6ES7/288-1ST20-0AA0 | 1 | Germany Siemens |
| AC Contactor | 3TB42 | 4 | Germany Siemens |
| Button | ZB2-BA3C | 3 | Schneider |
| Main Motor | CH-30-1100W | 1 | Dongli |
| 1:NJP-800C Capsule Filling Machine Obtains The National New Patent, Adopts The Three-dimensional Adjustment, Makes The Metering Plate Evenly Force, The Adjustment Volume Is Precise And Quick, And The Powder Recovery Device Is Added, The Recycling Rate Is 100%. |  |
|
2:Utility Patent Rotary Design Capsule Filling Machine, The Sealing Ring Using Imported Sil Silicone Rubber, Effectively Prevent Powder Into The Internal Turntable; Transverse Biaxial Adapt Ptfe Oil-less Bearing, No Need Refueling. |
| 3:Capsule Filling Machine Segmentation Adapt German Cai Si For 3 Seconds (zeiss) Optical Dividing Head Indexing, Indexing Shaft Completed A One-time Processing, Loading And High Precision, The Error Is Less Than Or Equal To 3%. | |
|
4:NJP-800C Capsule Filling Machine Adopt Nut-type Adjusting Metering Device,Convenient,Fast And Accurate. |
| 5:Capsule Filling Machine The Control Appliance Adopts The World Famous Brand, All The Parts Of The Contact Drug Are Made Of Stainless Steel 316,seven Lines Of Aero Aluminum Automatic Rejection Device. | |
| Guangdong Rich Packing Machinery Co., Ltd. located in Haizhu district, Guangzhou City with convenient transportation and rich resources, is a combination of design, development, production, sales,which not only manufactures pharmaceutical machinery, packing machinery, but also provides whole set of technical and business solution, registered capital is 10 million RMB. And main products are including automatic capsule filling machine, tablet press machine, electronic counting machine, blister packing machine, coating machine, cartooning machine, etc. | |
