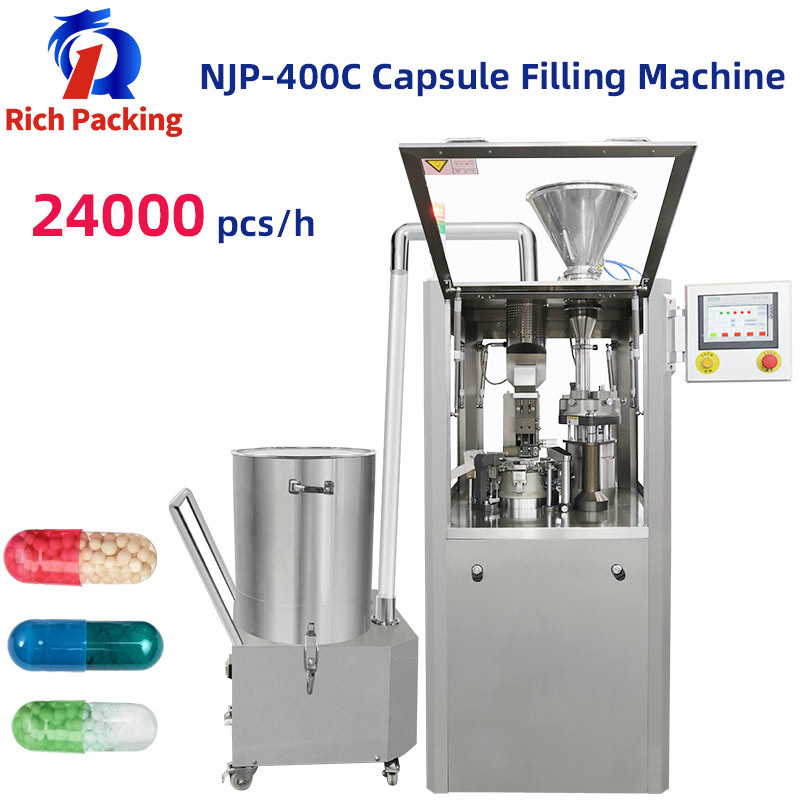

Gelatin Capsule Powder Filling Machine 24000 Pcs Per Hour Capsule Filling Machinery

Gelatin Capsule Powder Filling Machine 24000 Pcs Per Hour Capsule Filling Machinery

  • Gelatin Capsule Powder Filling Machine 24000 Pcs Per Hour Capsule Filling Machinery
  • Gelatin Capsule Powder Filling Machine 24000 Pcs Per Hour Capsule Filling Machinery
  • Gelatin Capsule Powder Filling Machine 24000 Pcs Per Hour Capsule Filling Machinery
Gelatin Capsule Powder Filling Machine 24000 Pcs Per Hour Capsule Filling Machinery
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: SGS CE ISO 9001
Model Number: NJP-400C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 50 pcs/month
Contact Now
Detailed Product Description
After-sales Provided: Engineers Available To Service Machinery Overseas Suitable For Capsule: 000,00,0,1,2,3,4,5#
Power Supply: 380/220V 50Hz Making Rate: Empty Capsule 99.9%,Full Capsule 99.8%
Filling Error: ±3%-±4%
High Light:

automatic capsule filler

,

auto capsule filling machine

         Gelatin Capsule Powder Filling Machine 24000 Pcs Per Hour Capsule Filling Machinery

Net weight of machine 600Kg
Overall size of machine 805×705×1760(mm)
Power 380/220V 50Hz
Total power 3.5KW
No.of segment bores 3
Vacuum 20m3/h-0.04-0.08Mpa
Dust collector 17.6Kpa 180m3/h
Noise <75DB(A)
Making rate Empty capsule 99.9% Full capsule 99.8%
Applicable capsule 00,0,1,2,3,4,5#
Filling error Western medicine:±3% Chinese medicine:±4%
Applicable product Power,granule,pellet,tablet



Gelatin Capsule Powder Filling Machine 24000 Pcs Per Hour Capsule Filling Machinery 0

Product details:

Gelatin Capsule Powder Filling Machine 24000 Pcs Per Hour Capsule Filling Machinery 1

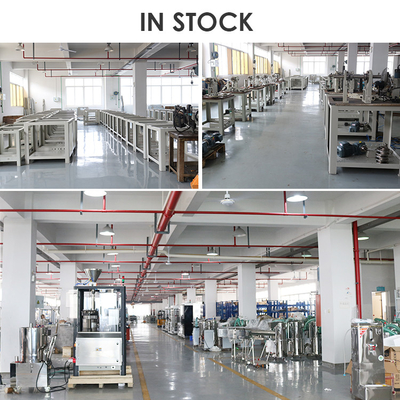

Factory workshop:

Gelatin Capsule Powder Filling Machine 24000 Pcs Per Hour Capsule Filling Machinery 2

Global after-sales service:

Gelatin Capsule Powder Filling Machine 24000 Pcs Per Hour Capsule Filling Machinery 3

Gelatin Capsule Powder Filling Machine 24000 Pcs Per Hour Capsule Filling Machinery 4











1.New patent for filling mechanism The filling mechanism obtains the national new patent, adopts three-dimensional adjustment. the adjustment volume is precise and quick, add the powder recovery device, the recycling rate is 100%.Patent No:ZL201521021519.4

2. Design of drawing and clamping slot for filling rodThe design of pulling chute for filling rod can save 60% time by replacing various types of filling rod.

1. Segmentation adapt German Cai Si for 3 seconds (Zeiss) optical dividing head indexing, indexing shaft completed a one-time processing, loading and high precision, the error is less than or equal to 3%.

2. Rotary design to obtain a patent for utility model, the sealing ring using imported SIL silicone rubber, effectively prevent powder into the internal turntable, good sealing performance, no dust overflow pollution; Transverse biaxial adapt PTFE oil-less bearing, no need refueling; modular structure, equipped with jog operation, convenient maintenance and cleaning, replacement of mold only 15 minutes.
