| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS |
| Model Number: | NJP-1200C |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 50 pcs/month |
| Making Rate: | Full Capsule 99.8% | Filling Error: | Western Medicine:±3% Chinese Medicine:±4% |
|---|---|---|---|
| Vacuum: | 40m3/h-0.04-0.08Mpa | Touch Screen: | Germany Siemens |
| PLC: | Germany Siemens | ||
| High Light: | automatic capsule filler,auto capsule filling machine |
||

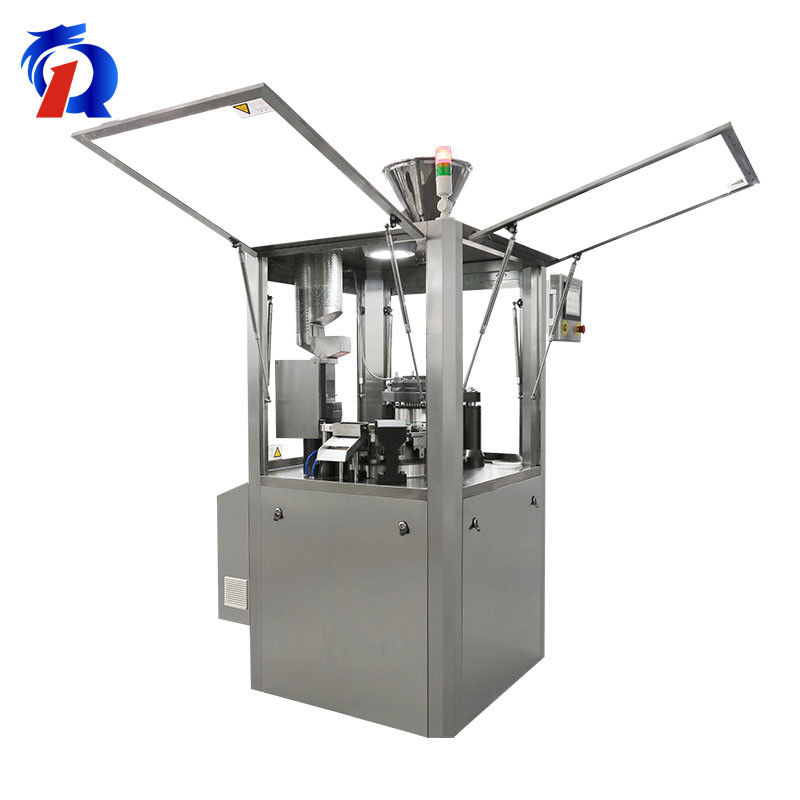

NJP-1200 Pellet Powder Filler Machine Full Auto Capsule Filling Machine
The model is the third generation of innovative products. It has 6 technological innovations and 2 invention patents. It can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#). It can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output. It has the advantages of accurate loading, stable operation and no dust. It meets the GMP requirements, it is an ideal equipment for filling Chinese, Western medicines and health care product .
| Production capacity | 72000 pcs/h |
| Net weight of machine | 1100Kg |
| Overall size of machine | 900×870×1950 |
| Power | 380/220V 50Hz |
| Total power | 5.5KW |
| No.of segment bores | 9 |
| Vacuum | 40m3/h-0.04-0.08Mpa |
| Dust collector | 24.5Kpa 210m3/h |
| Noise | <75DB(A) |
| Making rate | Empty capsule 99.9% Full capsule 99.8% |
| Applicable capsule | 00,0,1,2,3,4,5# |
1.100DS Cam
High security,Stability , Long service life
2.Metering device(Filling rod pull card slot)
Nut-type adjustment and metering device is convenient, fast and accurate；Filling rod holder adopts a pull-out slot design, which can save 60% of the time when replacing the filling rod.
