| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | SGS CE ISO 9001 |
| Model Number: | NJP-200C |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 50 pcs/month |
| Product Name: | Automatic Capsule Filling Machine | Filling Material: | Powder/GranulePill |
|---|---|---|---|
| Machine Material: | 304/316L Stainless Steel | Total Power: | 3KW |
| Overall Size Of Machine: | 805×705×1760(mm) | Noise: | <75DB(A) |
| High Light: | automatic capsule filler,auto capsule filling machine |
||

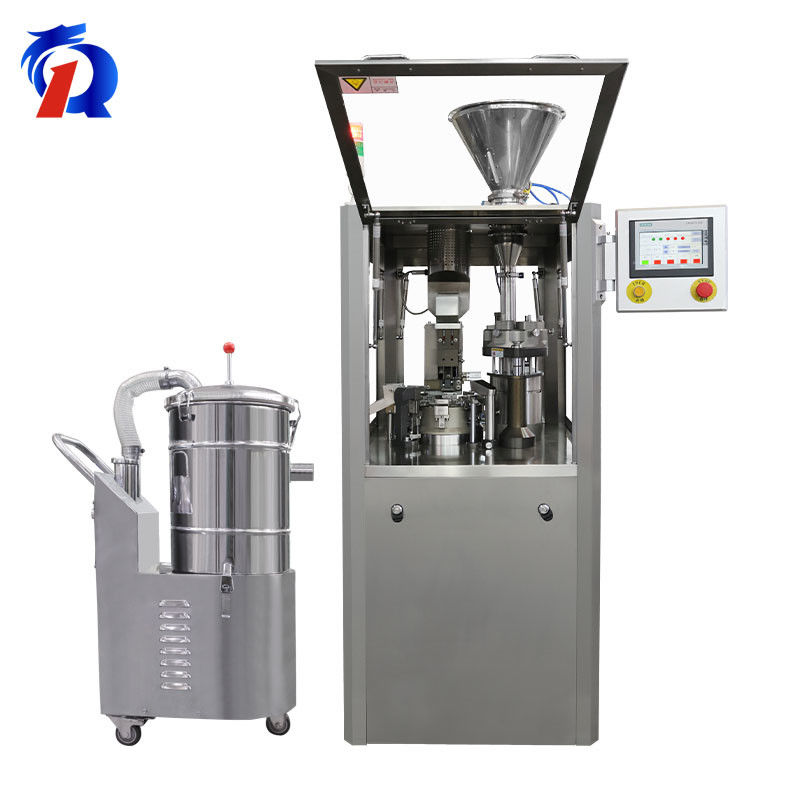

Hard Gelatin Capsule/ Pellet Tablet Powder Capsule Filling Machine
This machine is an upgraded version of semi-automatic capsule filling machine. It is mainly used for filling powdery and granular materials to empty capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#). It can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output. It has the advantages of accurate loading, stable operation and no dust. It meets the GMP requirements, it is an ideal equipment for filling Chinese, Western medicines and health care product .
| Filling Machine Model | 200C | 400C | 800C | 1200C |
| Capsule size | 000,00,0,1,2,3,4,5 # Size Capsule | |||
| Power | 3Kw | 3.5Kw | 5Kw | 5.5Kw |
| Production Capacity | 12000 Pcs/h | 24000 Pcs/h | 48000 Pcs/h | 72000 Pcs/h |
| Dimension | 805*705*1760mm | 805*705*1760mm | 865*855*1900mm | 900*870*1950mm |
| Weight | 600Kg | 600Kg | 900Kg | 1100Kg |
| Spare Parts Item | Specificatio | Qty | Manufacturer |
| Touch Screen | 6AV6/648-0BC11-3AX0 | 1 | Germany Siemens |
| PLC | 6ES7/288-1ST20-0AA0 | 1 | Germany Siemens |
| AC Contactor | 3TB42 | 4 | Germany Siemens |
| Thermal Relay | 3UA59 | 3 | Germany Siemens |
| Main Motor | CH-30-1100W | 1 | Dongli |
NO1.Metering device(Filling rod pull card slot)
Nut-type adjustment and metering device is convenient, fast and accurate；Filling rod holder adopts a pull-out slot design, which can save 60% of the time when replacing the filling rod
NO2.New design turntable
New design of the turntable has obtained a utility model patent.Transverse biaxial adapt PTFE oil-less bearing, no need refueling.
Patent No:ZL2015 2 1021519.4
Contact Person: Nicole Huang
Tel: 13380063170
