| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS |
| Model Number: | NJP-1500D |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| After-sales Provided: | Engineers Available To Service Machinery Overseas | Capsule Size: | 00-5 # Capsule |
|---|---|---|---|
| Production: | 90000 Pcs/h | Item Type: | NJP Capsule Filling Machine |
| Filling Material: | Herbal Powder/Pellet | Operation: | PLC Control |
| Filling Error: | ±3%-±4% | Weight: | 1100 Kg |
| High Light: | automatic capsule filler,auto capsule filling machine |
||

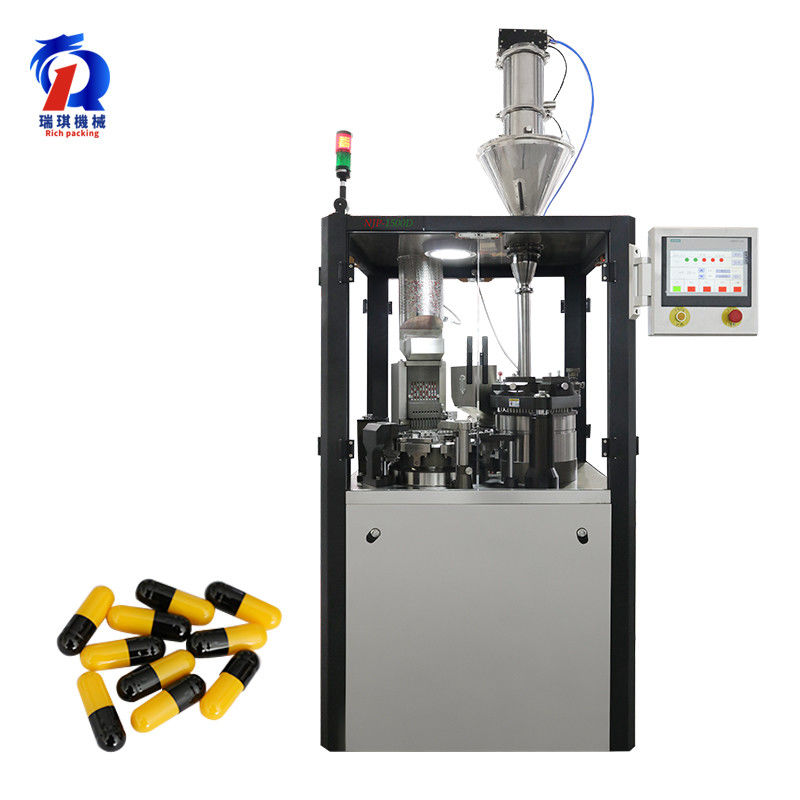

Pharmaceutical Automatic/Auto Hard Capsule Filling Machine/Filler Machineryt
The inner groove cam of NJP-1500D capsule filling machine is formed by CNC machining center once, no splitting, no splicing, no gap, better stability, no noise in the transmission mechanism in high-speed production of equipment.
| Parts Item | Specificatio | Manufacturer |
| PLC | 6ES7/288-1ST20-0AA0 | Germany Siemens |
| Main Motor | R37-DRS90M4/2W | Germany SEW |
| AC Contactor | VFD015 B21A | Taiwan Delta |
| Cam | RU-83DS | Taiwan Safepower |
| Button | ZB2-BA3C | France Schneider |

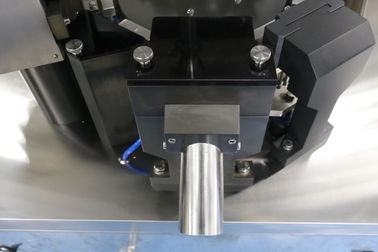

Double Sealing Device
First:NBR Sealing Rubber,Prevents The Loss Of Lubricating Oil
Second:SIL Silicone Sealing Rubber,Prevents Powder Enters The Bearing
Aviation Connector
With Fast Connection And Separation, Good Environmental Resistance And High Reliability
Intelligent Lubrication System
Used To Provide Quantitative And Timely Refueling For Parts That Need Lubrication,it Ensure The Transmission Mechanism Fluency
