| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS |
| Model Number: | NJP-1500D |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| After-sales Provided: | Engineers Available To Service Machinery Overseas | Production: | 90000 Pcs/h |
|---|---|---|---|
| Item Type: | Fully Automatic Capsule Filling Machine | Capsule Size: | 00,0,1,2,3,4,5# Capsule |
| Filling Range: | Powder/Pellet/Granule | Dimension(L*W*H): | 1200*1000*2150 Mm |
| Weight: | 1100 Kg | ||
| High Light: | automatic capsule filler,auto capsule filling machine |
||

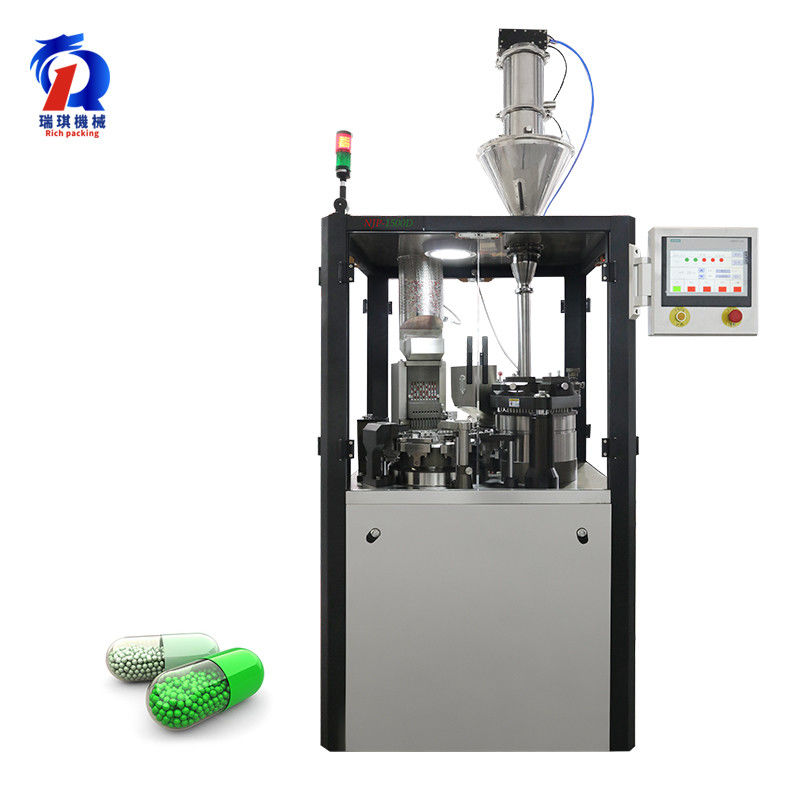

Automatic Pharmaceutical Capsule Filling Machine For Powder Pellet

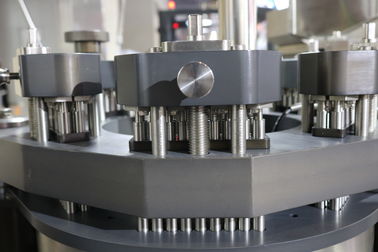

The inner groove cam of NJP-1500D capsule filling machine is formed by CNC machining center once, no splitting, no splicing, no gap, better stability, no noise in the transmission mechanism in high-speed production of equipment.
| Parts Item | Specificatio | Manufacturer |
| PLC | 6ES7/288-1ST20-0AA0 | Germany Siemens |
| Main Motor | R37-DRS90M4/2W | Germany SEW |
| AC Contactor | VFD015 B21A | Taiwan Delta |
| Cam | RU-83DS | Taiwan Safepower |
| Button | ZB2-BA3C | France Schneider |
Double Sealing Device
First:NBR Sealing Rubber,Prevents The Loss Of Lubricating Oil
Second:SIL Silicone Sealing Rubber,Prevents Powder Enters The Bearing

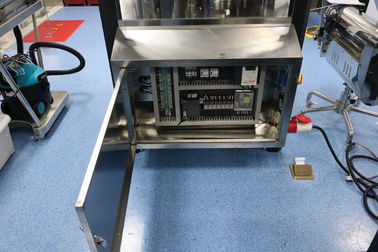

Rear Electric Box
Modularized Setup, Convenient Inspection And Maintenance；With Aviation Connector,More Safety
Intelligent Lubrication System
Used To Provide Quantitative And Timely Refueling For Parts That Need Lubrication,it Ensure The Transmission Mechanism Fluency
