Only create value for our customers, we have the value of existence.
 |
| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | NJP-8200 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $74000-81000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | CE ISO SGS Certified Pharmaceutical Small Capsule Filling Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
|---|---|---|---|
| Dimension(l*w*h): | 1800×1390×2200mm | Capacity: | 8200 Capsules / Min |
| Weight: | 4000Kg | Type: | Filling Machine |
| Automatic Grade: | Automatic | Condition: | New |
| Driven Type: | Electric | Power: | 14KW |
| Warranty: | 12 Momths | Voltage: | 220V/380V 50Hz |
| High Light: | automatic capsule filler,pill filler machine |
||

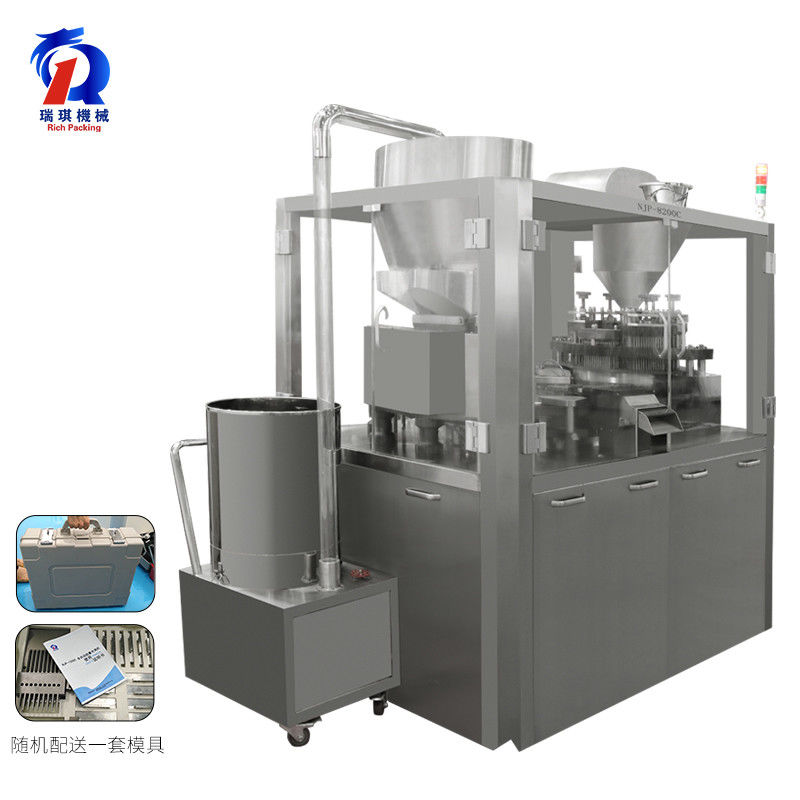

CE ISO SGS Certified Pharmaceutical Small Capsule Filling Machine
| Production capacity | 492000pcs/h |
| Net weight of machine | 4000Kg |
| Overall size of machine | 1800×1390×2200mm |
| Power | 380V 50Hz |
| Total power | 14KW |
| No.of segment bores | 58 |
| Vacuum | -0.02~0.06Mpa |
| Dust collector | Air consumption 0.2m3/min Air pressure 0.3-0.4Mpa |
| Noise | <75DB(A) |
| Making rate | Empty capsule 99.9% Full capsule 99.8% |
| Applicable capsule | 00,0,1,2,3,4,5# |
| Filling error | Western medicine:±3% Chinese medicine:±4% |
| Applicable product | Power,granule,pellet,tablet |
1. The capsule filler machines use the imported SIL silicone rubber sealing ring to block the powder into the bearing, which effectively solves the problem of the card machine that the powder enters the bearing.
2. When we are manufacture the capsule filling machines ,the filling rod, the upper and lower die holes, the measuring disk adapt non polar electronic polishing treatment, enhance the material fluidity, which has solved the problems of sticky of material, stick with mold and easy to absorb moisture. (According to the material properties and the special requirements of customers, Guangdong Rich Packing Machinry Co. Ltd can provide the Teflon coating processing service)
3.The capsule filling machine equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.
4. The capsule filler machinery is precision mold concentricity, zero deviation, ensure that the capsule is not wiping, no damage.
5. Automatic rejection device, improve the charging efficiency ,the capsule filling equipment is suitable to pharmacy and health care food manufacture.
6. Guangdong Rich Packing Machinery Co., Ltd. is a professional manufacturer and supplier of pharmaceutical and packing machinery and equipment in China?
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute.
7. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including? tablet press, soft and hard blister packing machine, capsule filling machines, counting machine and cartoning box machine, etc.
