| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | NJP-6000 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $74000-81000/pc |
| Packaging Details: | Standard export wooden case(2010×2000×2200mm) |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Automatic Capsule Filling Machine For Pharmaceutical / Herbal / Nutrional | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
|---|---|---|---|
| Capacity: | 6000 Ccapsules / Min | Dimension(l*w*h): | 1500*1250*2200mm |
| Type: | Filling Machine | Power: | 11KW |
| Automatic Grade: | Automatic | Voltage: | 220V/380V 50Hz |
| Condition: | New | Driven Type: | Electric |
| Weight: | 3000Kg | Warranty: | 12 Momths |
| High Light: | automatic capsule filler,pill filler machine |
||

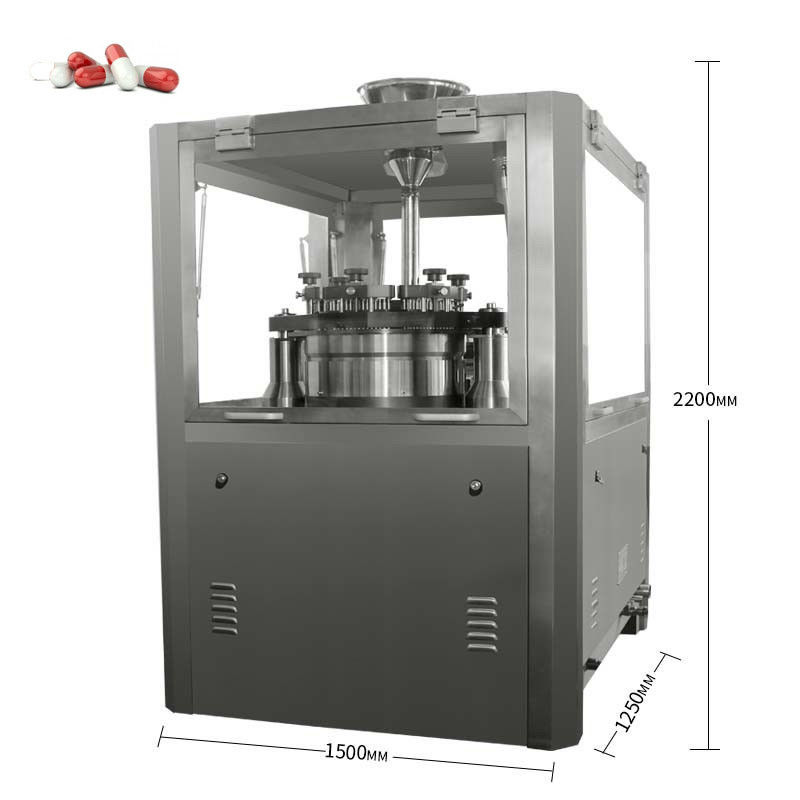

Automatic Capsule Filling Machine for Pharmaceutical / Herbal / Nutrional
| Production capacity | 360000pcs/h |
| Net weight of machine | 3000Kg |
| Overall size of machine | 1500×1250×2200mm |
| Power | 380V 50Hz |
| Total power | 11KW |
| No.of segment bores | 43 |
| Vacuum | -0.02~0.06Mpa |
| Dust collector | Air consumption 0.2m3/min Air pressure 0.3-0.4Mpa |
| Noise | <75DB(A) |
| Making rate | Empty capsule 99.9% Full capsule 99.8% |
| Applicable capsule | 00,0,1,2,3,4,5# |
| Filling error | Western medicine:±3% Chinese medicine:±4% |
| Applicable product | Power,granule,pellet,tablet |
1.The capsule filling machine has the advantages of accurate loading, stable operation and no dust.
2.This pharmaceutiacl automatic capsule filling machine meets the GMP requirements, it is an ideal equipment for filling Chinese, Western medicines and health care product .
3.Rotary of capsule filling machine design to obtain a patent for utility model, the sealing ring using imported SIL silicone rubber, effectively prevent powder into the internal turntable, good sealing performance, no dust overflow
pollution;
4.Transverse biaxial adapt PTFE oil-less bearing, no need refueling; modular structure, equipped with jog operation, convenient maintenance and cleaning, replacement of mold only 15 minutes,our capsule filling machine is newest.
5.Guangdong Rich Packing Machinery Co. Ltd. has big design deparment of capsule filling machine,the filling mechanism obtains the national new patent, adopts the three-dimensional adjustment, makes the metering plate evenly force, the adjustment volume is precise and quick, and the powder recovery device is added, the recycling rate is 100%, which reduces the waste and improves the economic benefit.
6.This series capsule filling machinery capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil.
7.The capsule filler machines use the imported SIL silicone rubber sealing ring to block the powder into the bearing, which effectively solves the problem of the card machine that the powder enters the bearing.
samples of capsule filling machine :Automatic Capsule Filling Machine for Pharmaceutical / Herbal / Nutrional
