| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS |
| Model Number: | NJP-3800D |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |

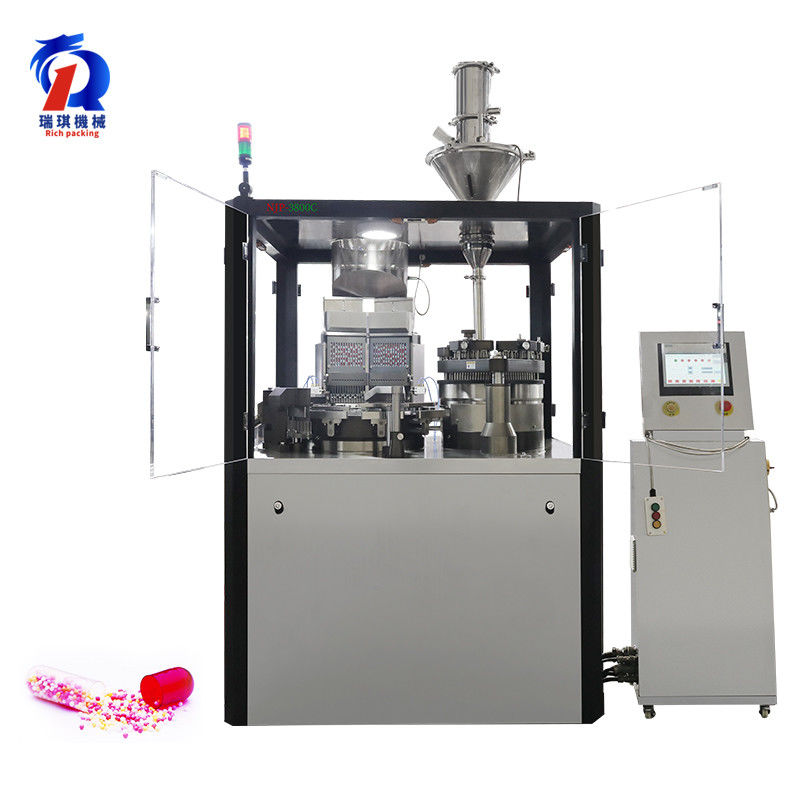

| Name: | NJP Automatic Hard Power Electronic Capsule Filling Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
|---|---|---|---|
| Dimension(l*w*h): | 1395×1180×2200 Mm | Capacity: | 228000 Capsules/hour |
| Type: | Empty Capsule Filling Machine | Operationm: | Siemens PLC Control |
| Voltage: | 220V/380V 50Hz | Power: | 10.5kw |
| Automatic Grade: | Automatic | ||
| High Light: | automatic capsule filler,auto capsule filling machine |
||
| Production capacity | 228000 pcs/h |
| Net weight of machine | 2200Kg |
| Overall size of machine | 1395×1180×2200 |
| Power | 380/220V 50Hz |
| Total power | 10.5KW |
| No.of segment bores | 27 |
| Vacuum | 120m3/h-0.04-0.08Mpa |
| Dust collector | 24.5Kpa 210m3/h |
| Noise | <75DB(A) |
| Making rate | Empty capsule 99.9% Full capsule 99.8% |
| Applicable capsule | 00,0,1,2,3,4,5# |
| Filling error | Western medicine:±3% Chinese medicine:±4% |
| Applicable product | Power,granule,pellet,tablet |
All the parts of the contact drug of pharmacy equipment are made of stainless steel 316, and the waste device adopts seven lines of aero aluminum.
The filling mechanism obtains the national new patent, adopts the three-dimensional adjustment, makes the metering plate evenly force, the adjustment volume is precise and quick, and the powder recovery device is added, the recycling rate is 100%, which reduces the waste and improves the economic benefit.
The control appliance adopts the world famous brand, modularized setup, convenient inspection and maintenance, SIEMENS human machine interface, real-time counting, and can print the equipment according to customer needs, print production date, batch number, code, etc.
