Place of Origin: | Guangzhou, China |
Brand Name: | Rich Packing |
Certification: | CE ISO SGS |
Model Number: | NJP-2300 |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | $29000-33000/pc |
Packaging Details: | Standard export wooden case |
Delivery Time: | 20-30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30 pcs/month |
Name: | Customized Pharmaceutical Capsule Filling Machine Small Capsule Filler | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
---|---|---|---|
Dimension(l*w*h): | 1120×1020×2000MM | Capacity: | 138000 Capsules/hour |
Type: | Filling Machine | Condition: | New |
Automatic Grade: | Automatic | Weight: | 1500KG |
Driven Type: | Electric | Warranty: | 1 Year |
Power: | 7400W | Voltage: | 220V/380V 50Hz |
Highlight: | automatic capsule filler,auto capsule filling machine |

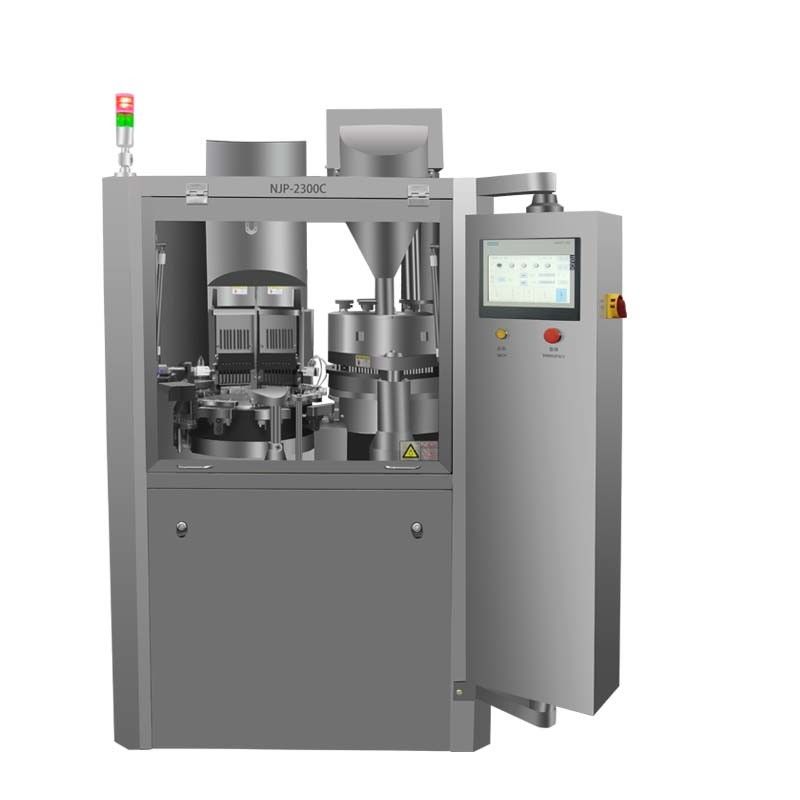

Customized Pharmaceutical Capsule Filling Machine Small Capsule Filler
1. Guangdong Rich Packing Machinery Co., Ltd. is a professional manufacturer and supplier of pharmaceutical and packing machinery and equipment in China.
2. All the parts of the contact drug of pharmacy equipment are made of stainless steel 316, and the waste device adopts seven lines of aero aluminum.
3. The capsule fill equipment is an ideal equipment for filling Chinese, Western medicines and health care product .
4. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers
Production capacity | 138000 pcs/h |
Net weight of machine | 1500Kg |
Overall size of machine | 1120×1020×2000 |
Power | 380/220V 50Hz |
Total power | 7.4KW |
No.of segment bores | 18 |
Vacuum | 63m3/h-0.04-0.08Mpa |
Dust collector | 24.5Kpa 210m3/h |
Noise | <75DB(A) |
Making rate | Empty capsule 99.9% Full capsule 99.8% |
Applicable capsule | 00,0,1,2,3,4,5# |
Filling error | Western medicine:±3% Chinese medicine:±4% |
Applicable product | Power,granule,pellet,tablet |
.
5.Rotary of capsule filling machine design to obtain a patent for utility model, the sealing ring using imported SIL silicone rubber, effectively prevent powder into the internal turntable, good sealing performance, no dust overflow
pollution
6.Guangdong Rich Packing Machinery Co. Ltd. has big design deparment of capsule filling machine,the filling mechanism obtains the national new patent
7.The capsule filler machines use the imported SIL silicone rubber sealing ring to block the powder into the bearing, which effectively solves the problem of the card machine that the powder enters the bearing.
