Automatic Capsule Filling Machinery , Electric Capsule Filler Filling Machine

Automatic Capsule Filling Machinery , Electric Capsule Filler Filling Machine

  • Automatic Capsule Filling Machinery , Electric Capsule Filler Filling Machine
Automatic Capsule Filling Machinery , Electric Capsule Filler Filling Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: NJP-2300
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $29000-33000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: NJP2300 Automatic Pharmacy Filling Machine Capsule Filler Machinery After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support
Dimension(l*w*h): 1120×1020×2000MM Capacity: 138000 Capsules/hour
Type: Filling Machine Voltage: 220V/380V 50Hz
Condition: New Automatic Grade: Automatic
Weight: 1500KG Driven Type: Electric
Warranty: 1 Year Power: 7400W
High Light:

pill filler machine

,

auto capsule filling machine

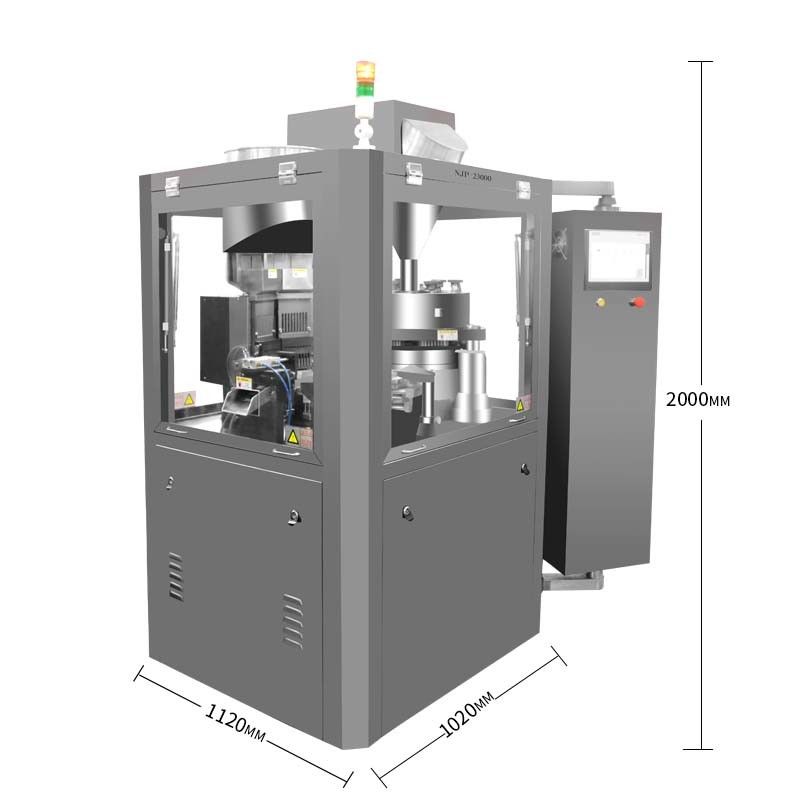

NJP2300 Automatic Pharmacy Filling Machine Capsule Filler Machinery



1. The capsule filling machine is an ideal equipment for filling Chinese, Western medicines and health care product .

2. Transverse biaxial adapt PTFE oil-less bearing, no need refueling; modular structure, equipped with jog operation, convenient maintenance and cleaning, replacement of mold only 15 minutes,our capsule filling machine is newest.

3. equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.

4. In Rich Packing you can get your desired goods with the best prices and good quality

5.This series capsule filling machinery capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil.

6. When we are manufacture the capsule filling machines ,the filling rod, the upper and lower die holes, the measuring disk adapt non polar electronic polishing treatment, enhance the material fluidity, which has solved the problems of

sticky of material, stick with mold and easy to absorb moisture. (According to the material properties and the special requirements of customers, Guangdong Rich Packing Machinry Co. Ltd can provide the Teflon coating processing service)





Production capacity 138000 pcs/h
Net weight of machine 1500Kg
Overall size of machine 1120×1020×2000
Power 380/220V 50Hz
Total power 7.4KW
No.of segment bores 18
Vacuum 63m3/h-0.04-0.08Mpa
Dust collector 24.5Kpa 210m3/h
Noise <75DB(A)
Making rate Empty capsule 99.9% Full capsule 99.8%
Applicable capsule 00,0,1,2,3,4,5#
Filling error Western medicine:±3% Chinese medicine:±4%
Applicable product Power,granule,pellet,tablet



.





Automatic Capsule Filling Machinery , Electric Capsule Filler Filling Machine 0
